Atypical Extracellular Action Potentials from Posteromedial Hypothalamus in Anesthetized Humans
Show Less
1 Clinical Neurophysiology, Hospital Universitario La Princesa, 28006 Madrid, Spain
2 Fundación de Investigación Biomédica, Hospital Universitario La Princesa, 28006 Madrid, Spain
3 PhD Program in Neuroscience, Autonoma de Madrid University-Cajal Institute, 28029 Madrid, Spain
*Correspondence: (Jesús Pastor)
Academic Editor: Graham Pawelec
Front. Biosci. (Landmark Ed) 2022, 27(5), 155;
Submitted: 9 February 2022 | Revised: 16 April 2022 | Accepted: 24 April 2022 | Published: 12 May 2022
(This article belongs to the Special Issue Neurophysiology)
Copyright: © 2022 The Author(s). Published by IMR Press.
This is an open access article under the CC BY 4.0 license.

Background: We obtained microelectrode recordings from four patients with intractable aggressivity who underwent surgery at posteromedial hypothalamus under general anaesthesia. We described two general types of extracellular action potentials (EAPs): typical/canonical and atypical. Methods: We analysed 337 units and 67 traces, which were characterized by the mean action potential (mAP). For the first phase, depolarization and repolarization, we computed amplitudes (VFP, VDep and VRep) and durations (dFP, dDep and dRep), maximum and minimum values of the first derivative (dVmax, dVmin), and amplitude and duration ratios. Results: Most of the canonical mAPs were positive (81.1%). EAPs with atypical mean action potentials (amAPs) were recorded in 42/337 cases. Only 35.6% of mAPs showed 2 phases. We identified the following types: N1P1N2 (38.3%), P1N1 (35.9%), amAP (12.5%), P1P2N1 (12.2%), N1P1 (4.7%), P1N1P2 (4.1%) and N1N2P1 (3.2%). We can define the properties of canonical forms as those units with (i) at least two opposite phases; (ii) VDep[1.2,2.7]×|VRep| and strongly related by this function VRep=-0.56(±0.01)VDep-1.83(±0.79); (iii) a very strong relationship between dVmax and dVmin, given by the equation dVmin=-0.91(±0.03)dVmax-0.37(±0.12), both of which were included in the depolarization phase; (iv) related with VDep by the equation dVmax=0.08(±0.001)VDep-0.28(±0.14); and (v) dDep~0.38dRep. However, the first phase does not pertain to the same dynamic process responsible for depolarization and repolarization. Conclusions: Atypical units are described here for the first time and are true EAPs that differ strikingly from canonical forms. To date, they have been observed only in the hypothalamus, but future research is needed to assess their existence in other brain structures.

capacitive current
deep brain stimulation
gap junctions
intractable aggressiveness
microelectrode recordings
sorting spikes

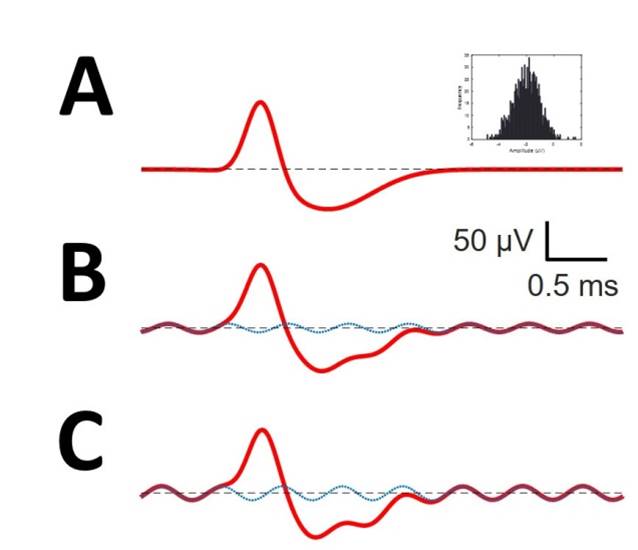

Fig. 1.
