Academic Editor: Marcello Iriti
Background: Urginea maritima (L.f.) Baker (Hyacinthaceae) is a
perennial bulbous medicinal plant that is currently at risk of extinction. Squill
(white sea onion) is an analogous cardiotonic to digitalis. The purpose of the
current work was to assess the optimal growth conditions for Urginea
cells to synthesize the cardiac glycoside proscillaridin A by involving
illumination, carbon source, methyl jasmonate (MJ), and culture system.
Results: When cells were cultured for 28 days at 21
Urginea maritima (L.f.) Baker (Hyacinthaceae) is a critically
endangered perennial bulbous medicinal plant [1]. It is commonly referred to as
squills. Squill glycosides have cardioprotective properties as digitalis.
U. maritima produces many bioactive substances, including
bufadienolides, scilliglaucoside, 6
Cardiac glycosides are used to treat congestive heart failure and cardiac arrhythmias. Proscillaridin A (PsA), (Fig. 1), is one of the most important cardiac glycoside constituents of Urginea maritime that has been found to exhibit anticancer activities, as it inhibits proliferation and induces apoptosis in cancer cells [3]. Moreover, it has been clinically applied for treating cardiac disorders [4]. Anticancer and epigenetic effects of this compound have been investigated against various cell lines, such as human lymphoma [5], breast cancer [6, 7], human fibroblasts [7], multiple myeloma [8], Embryonal rhabdomyosarcoma [9], prostate cancer [10], and advanced adrenocortical carcinoma [11]. It is an inhibitor of the Na(+)/K(+) ATPase (NKA) pump, against the proliferation and migration of glioblastoma cell lines, and as a potent candidate for drug repositioning [12].
Proscillaridin a structure.
The PsA can successfully inhibit hepatocellular carcinoma (HCC) progress and may
assist as a potential therapeutic mediator for HCC treatment [13]. It has the
potential to be repurposed as a gene drug in personalized oncology, especially in
leukemias with MYC overexpression [14]. PsA affects hormone-regulated systems as
a suppressor, and it may help predict endocrine disruption. This function may be
beneficial to detect environmentally significant ER
Plant cell cultures were used effectively to generate massive amounts of secondary metabolites from various plants. It was observed that Thevetia peruviana callus tissue culture could produce high levels of cardiac glycoside [20].
In the culture of plant cells, several methods, such as lightening and nutrient modification, can regulate the secondary metabolites and enhance the properties of cell biomass. Recent developments have shown that manipulating the cultural environment can enhance product accumulation. Furthermore, the application of exogenous methyl jasmonate (MJ) to in vitro cultures has developed as an important approach for hyperaccumulation and affecting the expression of several secondary metabolites [21].
Cells are cultured with simple sugars acting as the carbon source in the medium to provide energy. The fact is that sucrose level affects the secondary metabolites productivity in different plants [22, 23]. Recently, suspending culture has been recognized as a critical step towards commercialization [24]. The liquid medium maintains intimate contact with tissue, stimulating and facilitating nutrition and hormone uptake [25], resulting in enhanced cell growth. Scholars have reconstructed several models to reach commercial scale and great production as shikonin in Lithospermum erythrorhizon cell line [26] and paclitaxel in Taxus brevifolia [27]. Hence, the chief objective of this study was to establish friable callus and cell suspension culture from H. costaricensis in vitro seedlings and investigate their betalain content as well as their antioxidant potential.
In this research, we assessed the cell proliferation and PsA content of calli from the leaf scale segment of U. maritima.
Bulbs were collected from the Mediterranean coastal zone between El-Arish
and Rafah (Egypt) during 2018 and 2019. The bulbs were carefully washed with
detergent and rinsed with tap water. From each bulb, the two outer scales, the
apical one-third and ca, 1 mm of the basal plate, were removed and discarded. The
clean bulbs are cut longitudinally into quarters, and the scales were separated
freely from each other to be first treated with hot water to eliminate the
endogenous contamination. The bulb scales were submerged for 1 h in hot water at
50
The friable calli tissues were transferred to a liquid MS media after three
subcultures. Cell suspension cultures were created by stirring 3 g of friable
calli derived from leaf scale explants (calli was established on 3 mg/L 2, 4-D
and 0.5 mg/L BA for two months until transferred to MS media enriched with 2, 4-D
(1 mg/L), Kin (0.5 mg/L) and sucrose (30 g/L) in 250 mL flasks containing 100 mL
of fresh liquid MS media enriched with Kin 0.5 mg/L and 2, 4-D (1 mg/L). The
media pH was regulated at 5.8 prior to autoclaving. Suspension cultures incubated
at 21
To investigate the influence of illumination, leaf callus culture was also
incubated under 600 lux light intensity with 16/8 photoperiod in MS media enriched
with 2, 4-D (1 mg/L), sucrose (30 g/L), and Kin (0.5 mg/L). To investigate the
impact of sucrose levels, leaf calli were grown for 28 days at 21
The elicitation effect of methyl jasmonate (MeJA) on proscillaridin A synthesis
was investigated by U. maritima cell suspension cultures. Before
introducing MeJA to the suspension cultures, it was dissolved in ethanol and
filter sterilized. The feeding level of MeJA was maintained at 50
Depending on the retention times and standard values UV spectra, HPLC was
utilized to determine the PsA biosynthesized in cell cultures. A volume of 1 g
left to dehydrated powder was extracted by cold maceration using chloroform for
72 h (100 mL
Statistical analysis was performed using Microsoft Excel 2010 (14.0.4734.1000
©2010 Microsoft Corporation. All rights reserved), using the
calculation of mean and standard errors, and the data were compared utilizing
Duncan’s many ranges method for intergroup correlations. p
Light is a critical physical factor affecting plant development and growth, and
the biosynthesis of several plant cell cultures [31]. In addition, the impact
of illumination and darkness on cell growth, proscillaridin A synthesis
by cell suspension culture of U. maritima was evaluated. At the end
of the exponential phase, grown cell cultures grown in the dark had a greater
cell density (14.83
Light | Dehydrated weight/flask (g) | PsA content (mg g |
Dark | 1.35 |
61.6 |
Light | 1.11 |
39.17 |
Values are means |
Carbon sources play a role in the synthetic pathway of numerous substances, performing as building blocks for macromolecules, and may affect many cellular growth pathways [35, 36]. Koch [37] noted that sugars affect the expression of several plant genes, and their relationship to growth and metabolic processes is unequivocal. Therefore, carbohydrates are of fundamental relevance for in vitro morphogenesis, an elevated energy needing procedure [38, 39]. Sucrose must be included for growth and development through osmoregulation, as well as to increase the nutritional value of the culture. Sucrose also acts as a signaling molecule, influencing growth, development, and metabolic processes, such as carbon and nitrogen uptake and transport [40].
The ideal sucrose content for PsA synthesis was determined in the suspension
culture of U. maritima. The sucrose level influences the development and
formation of PsA of the leaf callus at sucrose levels of 20, 30, 40, and 60 g/L.
As presented in Table 2, the weight of the dehydrated callus was raised with
higher sucrose levels. When the sucrose amount was 40 g/L, the dehydrated weight
of the callus was 2.48
Sucrose concentration | Dehydrated weight per flask (g) | PsA content (mg/g of cultured cell) |
20 g L |
0.79 |
49.86 |
30 g L |
1.27 |
62.70 |
40 g L |
1.21 |
31.46 |
60 g L |
1.81 |
45.23 |
Values are means |
Additionally, when the level of sucrose in the leaf callus reached 30 g/L, the PsA level decreased. Hence, 30 g/L sucrose must be applied to the culture media to maximize total PsA formation. According to several investigations, increased sugar levels lead to decreased growth [41, 42].
Furthermore, when sucrose levels in the culture media elevated, phenolic levels and tissue necrosis elevated, and shoot regeneration reduced significantly in the three sugar beet lines [43]. These findings agree with those of Kadota et al. [44], who discovered that elevated sucrose levels were deleterious to pear (Pyrus communis), possibly due to a reduction in osmotic potential associated with increased carbohydrate levels [45]. In vitro, cells recognized sugars as chemical signals, with extremely elevated levels acting as stressors [46, 47].
Comparing the medium that produced higher cell densities to the medium that contained lower sucrose levels, the latter collected the highest betalain pigment concentration in Hylocereus costaricensis cell suspension [48]. The uptake and storage of carbon sources in the cells was the fundamental reason for increasing dry cell mass [49]. Sucrose concentrations of 2–3% are commonly used in cell suspension cultures [48]. In a study on B. vulgaris cell suspension cultures, dry cell weight increased with increasing sucrose concentration up to 50 g/L [50].
Increased sucrose concentrations in the culture media generate a hypertonic environment that allows water from within the cells to diffuse out while inhibiting nutrient uptake. Cell death decreases the cell number and, resulting in decreased secondary metabolite synthesis [51].
Wang et al. [52] discovered several factors affecting cell growth and the formation of secondary metabolites in cell suspension cultures, including the elicitor concentration, culture age, cell line, growth regulators, and nutritional material composition.
After 15 days of cultivation, U. maritima cell suspension cultures were
treated with various doses of MeJA (50–200

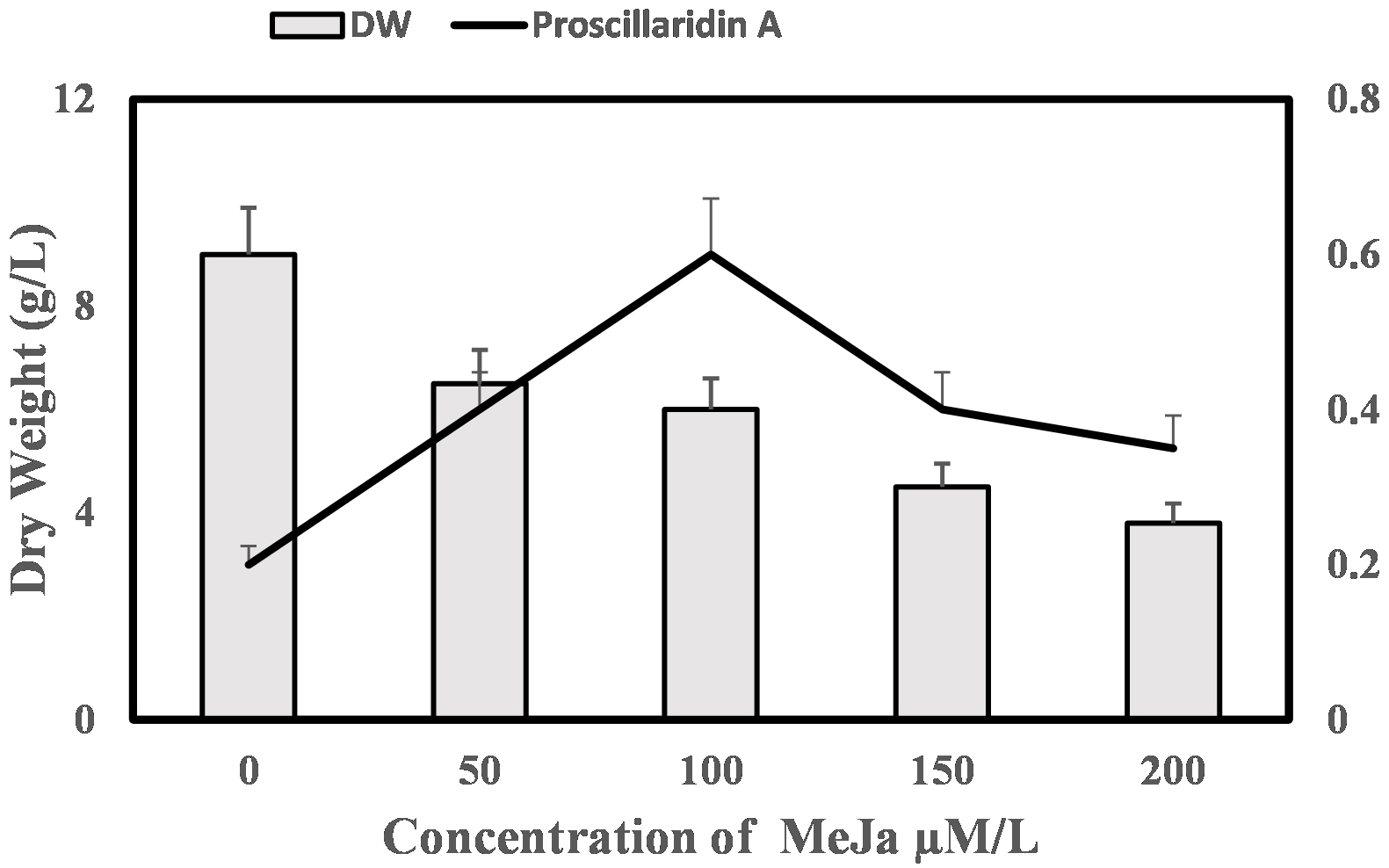

Impacts of MeJA level on cell growth and proscillaridin a content (mg/g of the cultured cells).

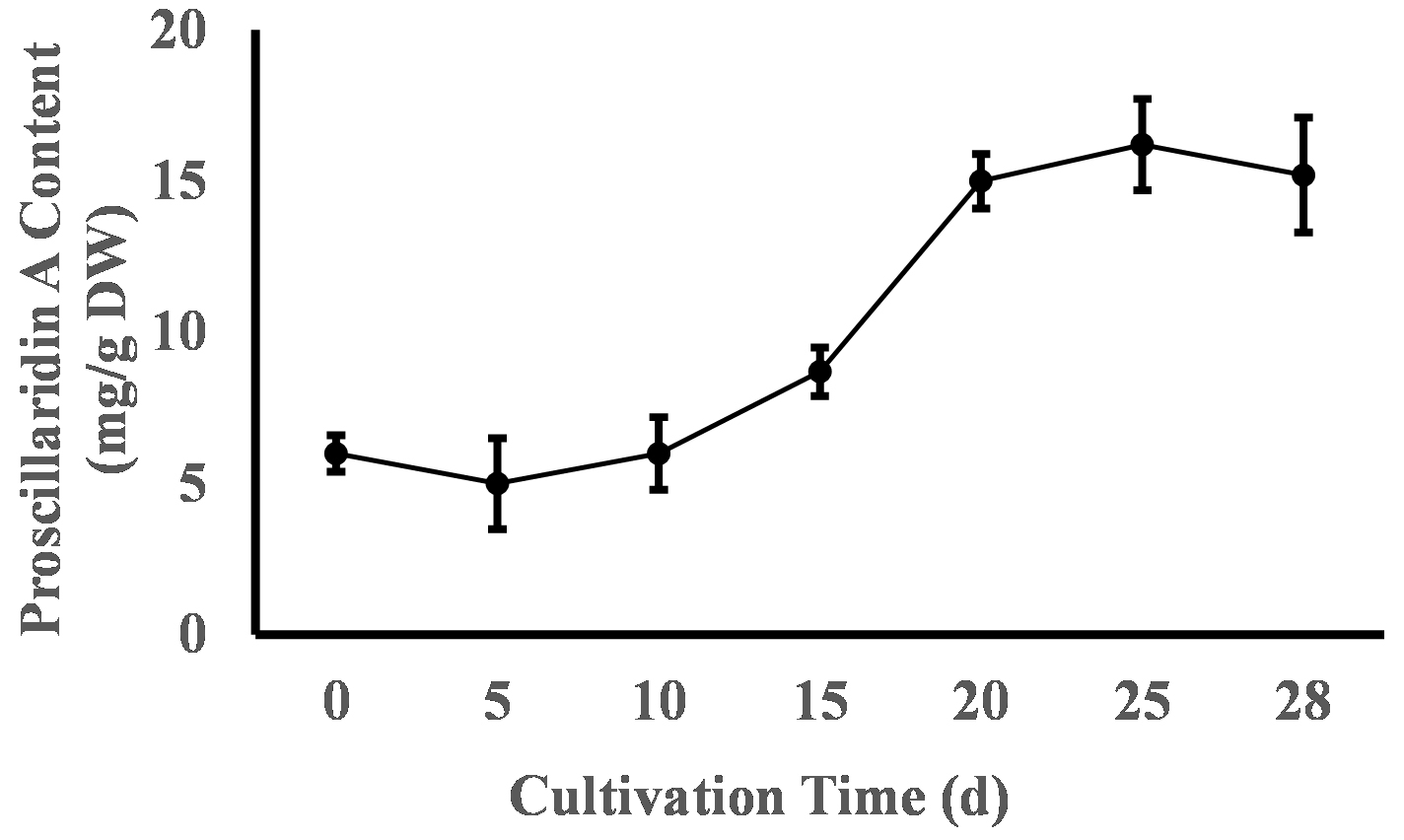

Assessment of optimal culture time in U. maritima cells. Content of proscillaridin A in U. maritima cell suspension cultures.
MeJA is a good abiotic elicitor as it activates a key signal in plant defensive responses and enhances the formation of secondary metabolites in plant cell cultures. Furthermore, MeJA is involved in the activation of phenolic chemical metabolism in plants as a whole, as well as in cell suspension and callus cultures from various plant families [56].
For the large-scale formation of secondary plant products in vitro, it would be preferred to combine the rapid growth rates and capacity for high biomass levels of undifferentiated cell culture systems with the genetic stability and inherent capacity for secondary metabolite formation of differentiated cells or tissues. Secondary metabolite synthesis has been demonstrated in cultures that proliferate similarly to undifferentiated cell cultures (i.e., callus or cell suspension) but are composed of differentiated cells or tissues [57]. The specialized tissue types that create and sequester vital leaf oils are increased in shoot cultures, and the strict developmental program required for shoot morphogenesis decreases genetic instability as well. In this way, tissue cultures have been shown to combine the appealing characteristics of both undifferentiated and differentiated systems. In cell suspension cultures of leaf callus, the temporal history of biomass growth and secondary metabolites was shown in Fig. 3.
MeJA, an abiotic elicitor, induced the synthesis of high concentrations of furanocoumarins in nutritional media that after various batch culture times. This is because secondary metabolites are generated intracellularly and then released into the nutritive medium in particular plant species, making it easier to collect. In some situations, cells may store secondary metabolites in vacuoles rather than secreting them into the media [58]. The simultaneous cell division and growth with the increase in biomass could be attributable to this release, which follows the growth curve through the lag phase, exponential phase, linear growth phase, and stationary phase, during which the cells stop dividing and growing [59]. Environmental factors such as nutrition depletion, oxygen deficiency, ethylene accumulation, depletion of additional growth regulators, or changes in physical and chemical elements all contribute to cell culture restriction [58]. According to Ramawat [59], the conversion of primary metabolites to secondary metabolites results in an increase in secondary metabolite synthesis at the stationary phase and by the conclusion of the exponential phase.
In the current investigation, the long-term exposure to 2.4-D was associated with the culture-age effect. Due to the homogeneity of cell suspension cultures and cells coming into close touch with a liquid medium, foreign chemicals like PGRs may have a greater effect on cells [60]. Continuous production of secondary metabolites is impeded by a loss of cell productivity, irregular production patterns, and large variability across periodical subcultures [61]. Chemical signals produced in high quantities by cells in the culture can cause cells to flip to a high secondary metabolite generating state.
It is found that the MS media enriched with 0.5 mg/L of Kin, 1 mg/L 2, 4-D, and
30 g/L of sucrose was effective in achieving high formation at 21
The current research demonstrated the development of an in vitro technique as a useful tool for biotechnologically producing proscillaridin A molecules. Elicitation and precursor feeding will be used in future studies to improve the synthesis of these economically relevant anticancer compounds. This may be a useful tool for producing PsA sustainably and continuously for use in many treatments.
A rational approach and a very feasible technique for cell suspension studies are to follow tissue culture for the improvement of commercially important and potentially useful secondary metabolites from a phytochemical source. The authenticity as seen from the obtained data is comprehensive and supports the need of assessing all chemical activities in the current analysis of the Egyptian herbal-based formulation. The evaluation of the results led to the selection of the optimum conditions for callus induction and proscillaridin A development by in vitro cell suspension culture of U. maritima. The results obtained are accurate, optimistic and indicate that the in vitro cultivation of U. maritima can be an ideal method for generating large yields of bioactive compounds with economic importance. Further experiments are ongoing to scale up the bioreactor procedure to improve growth rates and production including enzymatic and microbial elicitors.
We found that the leaves were the best plant tissue to enhance the calli production of PsA. Furthermore, the light was not necessary for the biosynthesis of the compound under investigation in the callus, which was favorable for PsA purification by decreasing the amount of chlorophyll in the culture. However, factors stimulating calli growth appear to be different from those that induce PsA formation. Sucrose enhanced the growth of the leaf calli but did not directly affect PsA synthesis.
HS and GN designed the research study. HS performed the research. MN provided help and advice on performance and during writing. AH performed the chemical analysis part. HS analyzed the data. HS and GN wrote the manuscript. All authors contributed to editorial changes in the manuscript. All authors read and approved the final manuscript.
Not applicable.
The authors are thankful and grateful to University of Sadat City for the support and help provided during the experiments.
This research was funded by University of Sadat City, grant number 11.
The authors declare no conflict of interest.
