Background: Heart failure (HF) is one of the most
important indications of the severity of valvular heart disease (VHD). VHD with
HF is frequently associated with a higher surgical risk. Our study sought to
develop a risk score model to predict the postoperative mortality of suspected HF
patients after valvular surgery. Methods: Between January 2016 and
December 2018, all consecutive adult patients suspected of HF and undergoing
valvular surgery in the Chinese Cardiac Surgery Registry (CCSR) database were
included. Finally, 14,645 patients (55.39
Heart failure (HF) is a life-threatening condition and is associated with significant morbidity, poor functional capacity, and decreased quality of life [1]. In 2017, more than 64 million people worldwide were affected with HF [2], and the number is likely to rise. Savarese G et al. [3] reported in their survey that annual health care costs per HF patient amount up to €25,000 in the Western world, resulting in a substantial economic burden. The prevalence of valvular heart disease (VHD) among the elderly, as well as VHD-related HF, is rising as the population is ageing [4]. VHD is one of the most common types of cardiac surgery. According to a multicenter study conducted in China [5], the overall mortality rate for VHD surgery was around 2%. However, it is much higher in patients with HF, and can be greater than 3%. Nearly all risk prediction models for cardiac surgery include HF as an independent predictor. There is a growing demand for risk assessment for these surgical patients, however current risk scores do not provide a reliable estimate of the exact operative mortality in an individual HF patient [6, 7].
In order to better assess the risk of surgery for these patients, the aim of the present study is to establish a simplified scoring risk model based on the Chinese Cardiac Surgery Registry (CCSR) database to accurately predict the postoperative mortality of suspected HF patients undergoing VHD surgery.
The CCSR is a multicenter registry, and consists of a council comprised of cardiac surgeons and researchers from the National Center of Cardiovascular Diseases which oversees the registry. This database contains information about cardiac surgery from 94 institutions. Each participating institution performed more than 100 cardiac surgeries each year and was requested to record cases using the same case report form (CRF). These sites are advanced cardiac centers and have many features that are common among large cardiac centers in China. According to the Chinese Society of Extracorporeal Circulation’s yearly surveys, we estimate that our database contains roughly 30% to 40% of all valvular procedures and represents surgical outcomes from large cardiac hospitals [8]. Every six months, two researchers investigated 5–10% of the reported cases at random for auditing. For cases in which there were missing data, the relevant participating units were required to resolve the problems in order to ensure the data’s integrity.
Between January 1, 2016, and December 31, 2018, we found 39,470 patients from the CCSR database who had undergone valvular surgery. We excluded 1302 individuals who had a primary diagnosis of acute aortic dissection, and whose hemodynamic characteristics were markedly different from those of VHD. We further removed 4746 patients under the age of 16 and 18,777 patients who had no HF related symptoms or signs and were classified as New York Heart Association Class (NYHA) I. Finally, we identified a total of 14,645 cases (NYHA II or higher) for analysis. Patients who had surgery between January 2016 and May 2018 (a total of 11,292) were allocated into the training group for model derivation. Patients who underwent surgery between June 2018 and December 2018 (a total of 3353) were included as a testing group to validate the model. The patient enrollment flow chart is shown in Fig. 1.

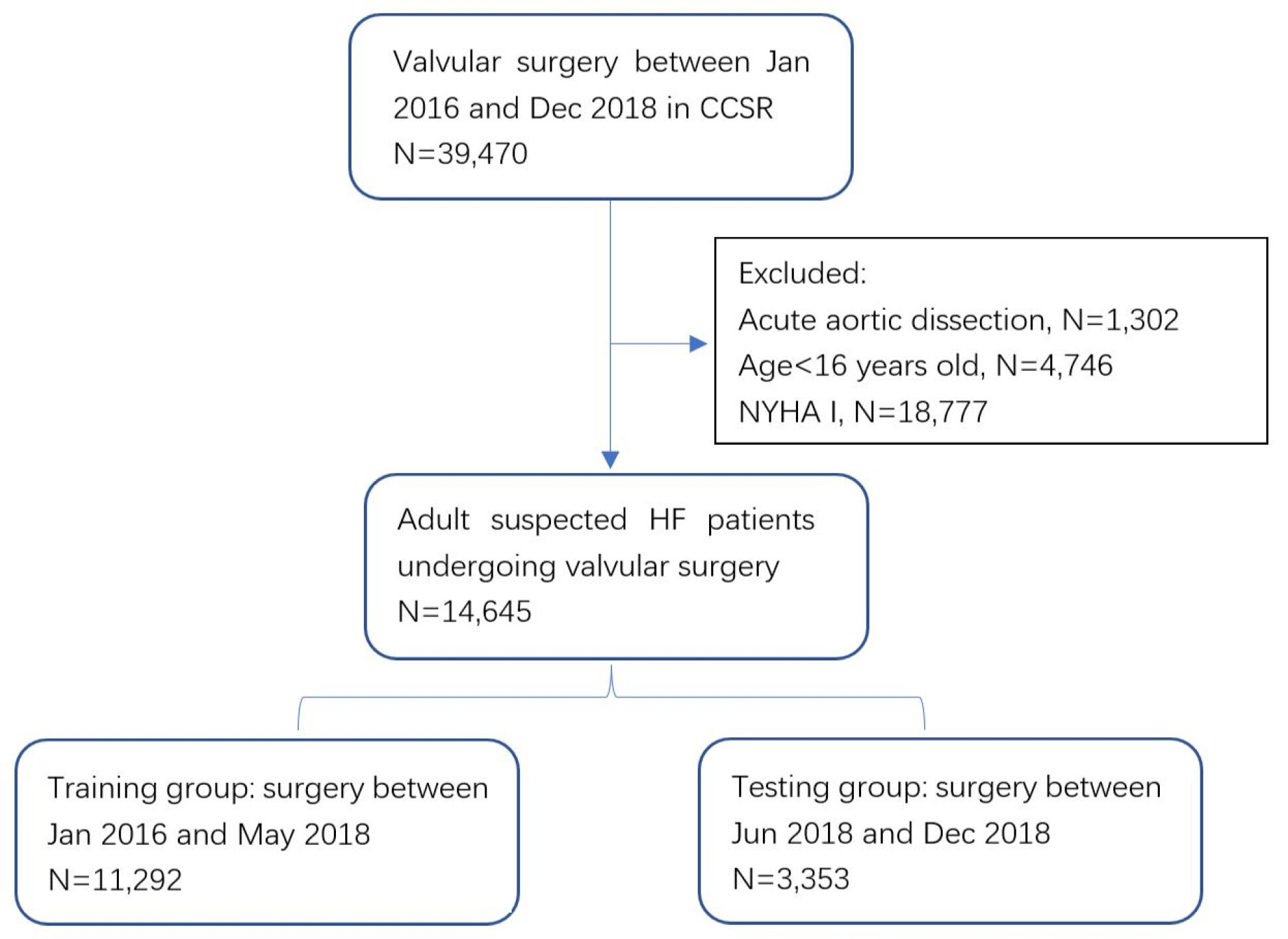

Patient enrollment. CCSR, Chinese Cardiac Surgery Registry; HF, heart failure; NYHA, New York Heart Association Class.
We defined suspected HF patients as those who were classified as NYHA II or higher, due to valvular disease. According to the latest European Society of Cardiology (ESC) guidelines [1], suspected HF is defined as a clinical syndrome consisting of typical symptoms (e.g., breathlessness, ankle swelling, and fatigue) that may be accompanied by signs (e.g., elevated jugular venous pressure, pulmonary crackles, and peripheral oedema). It is due to structural or functional abnormalities of the heart that could result in elevated intracardiac pressures or inadequate cardiac output at rest or during exercise.
Postoperative mortality was defined as death occurring between the surgery and hospital discharge or within 30 days after surgery.
Definitions of other variables in Table 1 are shown in Supplementary Table 1.
Variables | Training group (n = 11,292) | Testing group (n = 3353) | p-value | Training group | p-value of univariate analysis | |
---|---|---|---|---|---|---|
Alive (n = 10,958) | Death (n = 334) | |||||
Patient related | ||||||
Age (years) | 55.25 |
55.87 |
0.007 | 55.11 |
59.91 |
|
Age |
4254 (37.7) | 1360 (40.6) | 0.003 | 4060 (37.1) | 194 (58.1) | |
Female | 4898 (43.4) | 1471 (43.9) | 0.619 | 4755 (43.4) | 143 (42.8) | 0.877 |
BMI (kg/m |
23.10 |
23.09 |
0.932 | 23.10 |
23.10 |
0.987 |
BSA (m |
1.65 (1.53–1.78) | 1.64 (1.51–1.77) | 0.081 | 1.65 (1.53–1.78) | 1.63 (1.516–1.76) | 0.381 |
Smoke | 3583 (31.7) | 999 (29.8) | 0.036 | 3480 (31.8) | 103 (30.8) | 0.767 |
Diabetes mellitus | 770 (6.8) | 239 (7.1) | 0.561 | 733 (6.7) | 37 (11.1) | 0.002 |
Hypertension | 2881 (25.5) | 826 (25.7) | 0.838 | 2772 (25.3) | 109 (32.6) | 0.003 |
CKD | 172 (1.5) | 149 (4.4) | 155 (1.4) | 17 (5.1) | ||
eGFR (mL/min/1.73 m |
88.49 (71.96–100.63) | 89.08 (71.97–100.47) | 0.962 | 88.70 (72.3–100.82) | 80.06 (61.18–93.45) | |
eGFR |
524 (4.8) | 182 (5.4) | 0.153 | 491 (4.5) | 51 (15.3) | |
Dialysis | 31 (0.3) | 16 (0.5) | 0.099 | 22 (0.2) | 9 (2.7) | |
COPD | 153 (1.4) | 35 (1.0) | 0.188 | 141 (1.3) | 12 (3.6) | 0.001 |
Extracardiac arteriopathy | 213 (1.9) | 29 (0.9) | 200 (1.8) | 13 (3.9) | 0.011 | |
Previous stroke | 527 (4.7) | 133 (4.0) | 0.095 | 497 (4.5) | 30 (9.0) | |
Heart related | ||||||
NYHA IV | 825 (7.3) | 215 (6.4) | 0.083 | 763 (7.0) | 62 (18.6) | |
NYHA II or III | 10,467 (92.7) | 3138 (93.6) | 0.083 | 10,195 (93.0) | 272 (81.4) | |
Chest pain | 709 (6.3) | 136 (4.1) | 659 (6.0) | 50 (15.0) | ||
Arrhythmia | 3576 (31.7) | 960 (28.6) | 0.001 | 3465 (31.6) | 111 (33.2) | 0.572 |
Critical status | 95 (0.8) | 43 (1.3) | 0.026 | 83 (0.8) | 12 (3.6) | |
Previous myocardial infarction | 360 (3.2) | 78 (2.3) | 0.012 | 336 (3.1) | 24 (7.2) | |
Previous cardiac surgery | 564 (5.0) | 149 (4.4) | 0.209 | 528 (4.8) | 436 (10.8) | |
Previous valvular surgery | 385 (3.4) | 82 (2.4) | 0.006 | 361 (3.3) | 24 (7.2) | |
LVEF (%) | 54 (49–57) | 54 (48–57) | 0.003 | 54 (49–57) | 51 (43–56) | |
LVEF |
295 (2.6) | 92 (2.7) | 0.723 | 263 (2.4) | 32 (9.6) | |
Left main stenosis | 305 (2.7) | 89 (2.7) | 0.932 | 277 (2.5) | 28 (8.4) | |
AS | 2930 (25.9) | 831 (24.8) | 0.183 | 2853 (26.0) | 77 (23.1) | 0.246 |
Severe AI | 2243 (19.9) | 706 (21.1) | 0.137 | 2182 (19.9) | 61 (18.3) | 0.5 |
MS | 3956 (35.0) | 1011 (30.2) | 3851 (35.1) | 105 (31.4) | 0.18 | |
Severe MI | 2392 (21.2) | 771 (23.0) | 0.027 | 2300 (21.0) | 92 (27.5) | 0.005 |
Severe TI | 1126 (10.0) | 384 (11.5) | 0.015 | 1085 (9.9) | 41 (12.3) | 0.182 |
PS | 46 (0.4) | 9 (0.3) | 0.32 | 44 (0.4) | 2 (0.6) | 0.903 |
Preoperative intravenous nitrate dependent | 1157 (10.2) | 230 (6.9) | 1098 (10.0) | 59 (17.7) | ||
Preoperative intravenous catecholamine dependent | 1054 (9.3) | 184 (5.5) | 1012 (9.2) | 42 (12.6) | 0.049 | |
RHD | 5349 (47.4) | 1603 (47.8) | 0.67 | 5202 (47.5) | 147 (44.0) | 0.233 |
Active endocarditis | 175 (1.5) | 45 (1.3) | 0.431 | 168 (1.5) | 7 (2.1) | 0.552 |
BNP (pg/mL)* | 321.8 (265.2–288.7) | 325.3 (268.9–290.2) | 0.233 | 321.1 (264.6–279.8) | 323.7 (267.3–289.4) | 0.066 |
Operation related | ||||||
Non-elective surgery | 144 (1.3) | 59 (1.8) | 0.043 | 119 (1.1) | 25 (7.5) | |
Aortic aneurysm operation | 482 (4.3) | 237 (7.1) | 455 (4.2) | 27 (8.1) | 0.001 | |
CABG | 1563 (13.8) | 422 (12.6) | 0.066 | 1450 (13.2) | 113 (33.8) | |
CPB time (minutes) | 120 (92–159) | 129 (99–167) | 120 (91–158) | 167.5 (118.8–262.2) | ||
CPB time |
857 (7.6) | 343 (10.2) | 763 (7.0) | 94 (28.1) | ||
AVR | 6038 (53.5) | 1796 (53.6) | 0.941 | 5880 (53.7) | 158 (47.3) | 0.025 |
Aortic valvular repair | 144 (1.3) | 66 (2.0) | 0.004 | 135 (1.2) | 9 (2.7) | 0.036 |
Mitral valvular surgery | 7451 (66.0) | 2118 (63.2) | 0.003 | 7210 (65.8) | 241 (72.2) | 0.018 |
MVR | 6246 (55.3) | 1711 (51.0) | 6048 (55.2) | 198 (59.3) | 0.154 | |
Aortic and mitral valvular surgery | 2755 (24.4) | 772 (23.0) | 0.107 | 2669 (24.4) | 86 (25.7) | 0.604 |
Transfusion | 6396 (56.6) | 1881 (56.1) | 0.591 | 6119 (55.8) | 277 (82.9) | |
EuroSCORE II | 0.018 (0.012–0.028) | 0.019 (0.012–0.029) | 0.043 | 0.017 (0.011–0.027) | 0.029 (0.020–0.052) | |
Mortality | 334 (3.0) | 111 (3.3) | 0.324 | - | - | - |
Values are presented as mean
BMI, body mass index; BSA, body surface area; eGFR, estimated glomerular filtration rate; CKD, chronic kidney disease; COPD, chronic obstructive pulmonary disease; NYHA, New York heart association; LVEF, left ventricular ejection fraction; AS, aortic valvular stenosis; AI, aortic valvular insufficiency; MS, mitral valvular stenosis; MI, mitral valvular insufficiency; TI, tricuspid insufficiency; PS, pulmonary valvular stenosis; RHD, rheumatic heart disease; BNP, Brain Natriuretic Peptide; CABG, coronary artery bypass grafting; CPB, cardiopulmonary bypass; AVR, aortic valve replacement; MVR, mitral valve replacement. *: BNP values were missing in about 40% of cases, the statistical results might not be reliable.
We followed the TRIPOD (Transparent Reporting of a Multivariable Prediction
Model for Individual Prognosis or Diagnosis) statement for reporting the
derivation and testing of the prediction model [9]. Categorical variables were
presented as frequencies (percentages %) and were compared with chi-squared
tests. Continuous variables were presented as mean
Fig. 1 illustrates the patient enrollment flow chart. Table 1 compares the demographics and other pre- or intraoperative risk variables of the training group (n = 11,292) with the testing group (n = 3353). Supplementary Table 1 contains the definitions of the variables in Table 1. The mean age in the training group was 55.25 and was 55.87 in the testing group (p = 0.007). The training group had 4898 (43.4%) female patients, while the testing group had 1471 (43.9%) female patients (p = 0.619). In the whole cohort, a total of 7834 patients (53.5%) and 7957 patients (54.3%) received AVR and MVR procedures, respectively. Furthermore, only 1612 patients (11%) had an MV repair operation. Patients with concomitant moderate to severe tricuspid insufficiency were simultaneously performed with tricuspid repair operation. In the training group, the median EuroSCORE II value was 0.018, while in the testing group, it was 0.019 (p = 0.043). The postoperative mortality rate was 3% in the training group and 3.3% in the testing group (p = 0.324).
Factors associated with postoperative mortality after univariate screening are
presented in Table 1. To construct a simplified scoring system, continuous
variables were dichotomized before analyses and were defined as follows: age
Table 2 shows results of the multivariate analysis. The independent variables
selected to construct the final model were: age
Risk factors | Odds ratio | 95% CI | Regression coefficient | Final scoring |
---|---|---|---|---|
Age |
2.07 | 1.65–2.63 | 0.73 | 2 |
NYHA IV | 1.75 | 1.49–2.80 | 0.56 | 1 |
LVEF |
2.83 | 2.04–4.75 | 1.04 | 2 |
eGFR |
2.18 | 1.60–3.27 | 0.78 | 2 |
Dialysis | 4.30 | 1.50–9.89 | 1.46 | 4 |
Left main artery stenosis | 1.79 | 1.26–3.02 | 0.59 | 1 |
Non-elective surgery | 3.57 | 2.32–6.56 | 1.27 | 3 |
CPB time |
3.47 | 2.78–4.78 | 1.25 | 3 |
Transfusion | 1.99 | 1.14–2.98 | 0.69 | 1 |
CI, confidence interval; NYHA, New York heart association; LVEF, left ventricular ejection fraction; eGFR, estimated glomerular filtration rate; CPB, cardiopulmonary bypass.

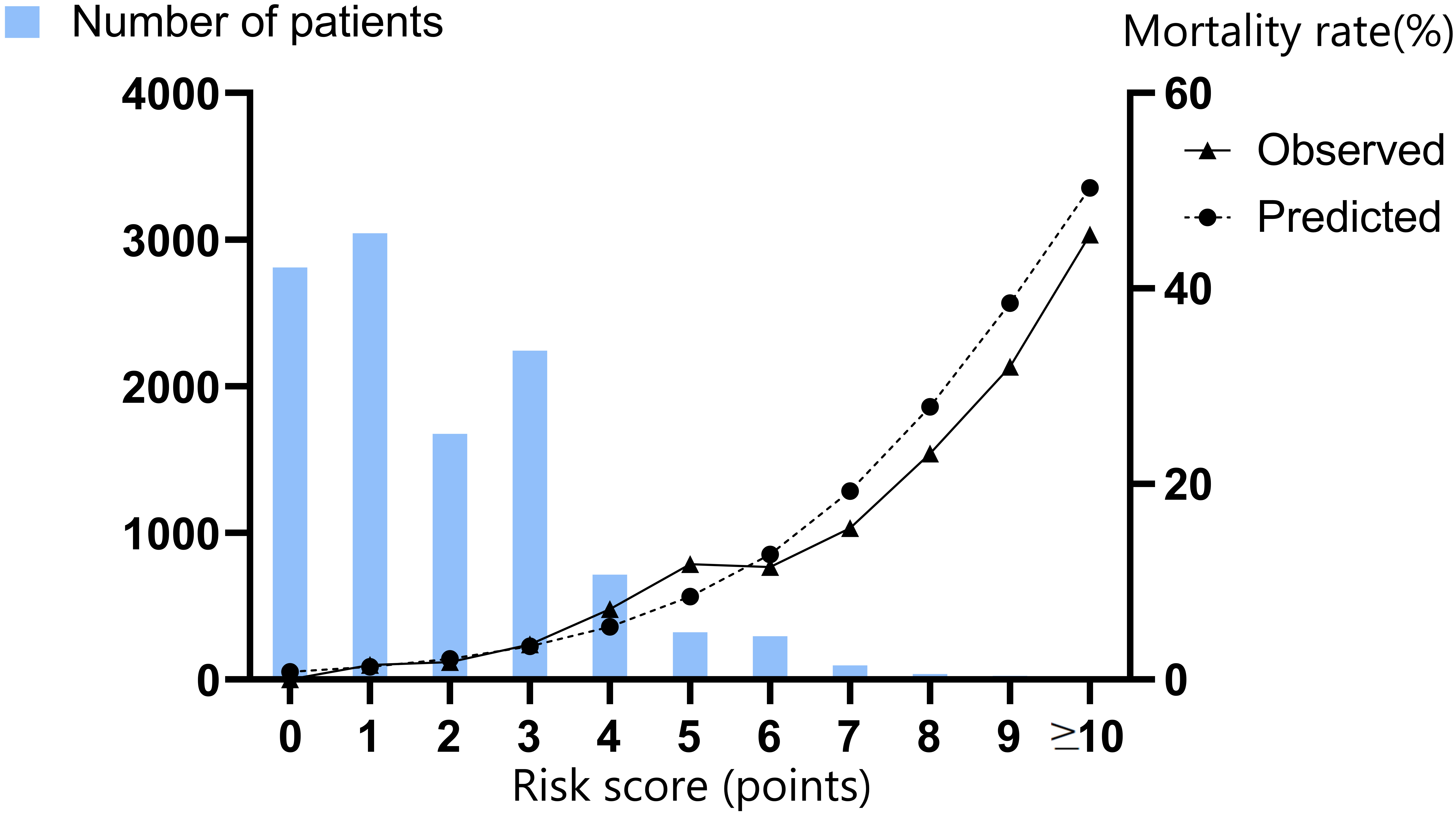

Observed and predicted in-hospital mortality rates according to the score from the simplified scoring model ranged from 0% to 45.5% and from 0.8% to 50.3%, respectively, for a score of 0 to 10 or more, with exponential increasing mortality rates as the score increased (Table 3 and Fig. 2).
Predicted vs. observed mortality rates and numbers of patients according to the risk score value (in training group).
Score | Number of patients | Predicted mortality rate (%) | Observed mortality rate (%) |
---|---|---|---|
0 | 2811 | 0.8 | 0 |
1 | 3043 | 1.3 | 1.5 |
2 | 1677 | 2.1 | 1.8 |
3 | 2244 | 3.4 | 3.6 |
4 | 715 | 5.4 | 7.2 |
5 | 322 | 8.5 | 11.8 |
6 | 297 | 12.8 | 11.5 |
7 | 97 | 19.3 | 15.5 |
8 | 39 | 27.9 | 23.1 |
9 | 25 | 38.5 | 32 |
22 | 50.3 | 45.5 |
The calibration of the risk score model was good, as shown in Fig. 3, exhibiting satisfied agreement between observed and predicted probability of mortality for probabilities up to 40%, with a slight underestimation of this model for probabilities ranged from 20% to 40%.
Fig. 3 shows the calibration plots of the simplified scoring model, and it can be seen that the calibration of the model is satisfactory in both training and testing groups.
Calibration curves of the risk score model: predicted vs. actually observed probability of mortality (A: training group; B: testing group).
In the training set, the AUC of our simplified scoring model was 0.776, which
was statistically higher than EuroSCORE II with an AUC of 0.721 (Delong test,
p

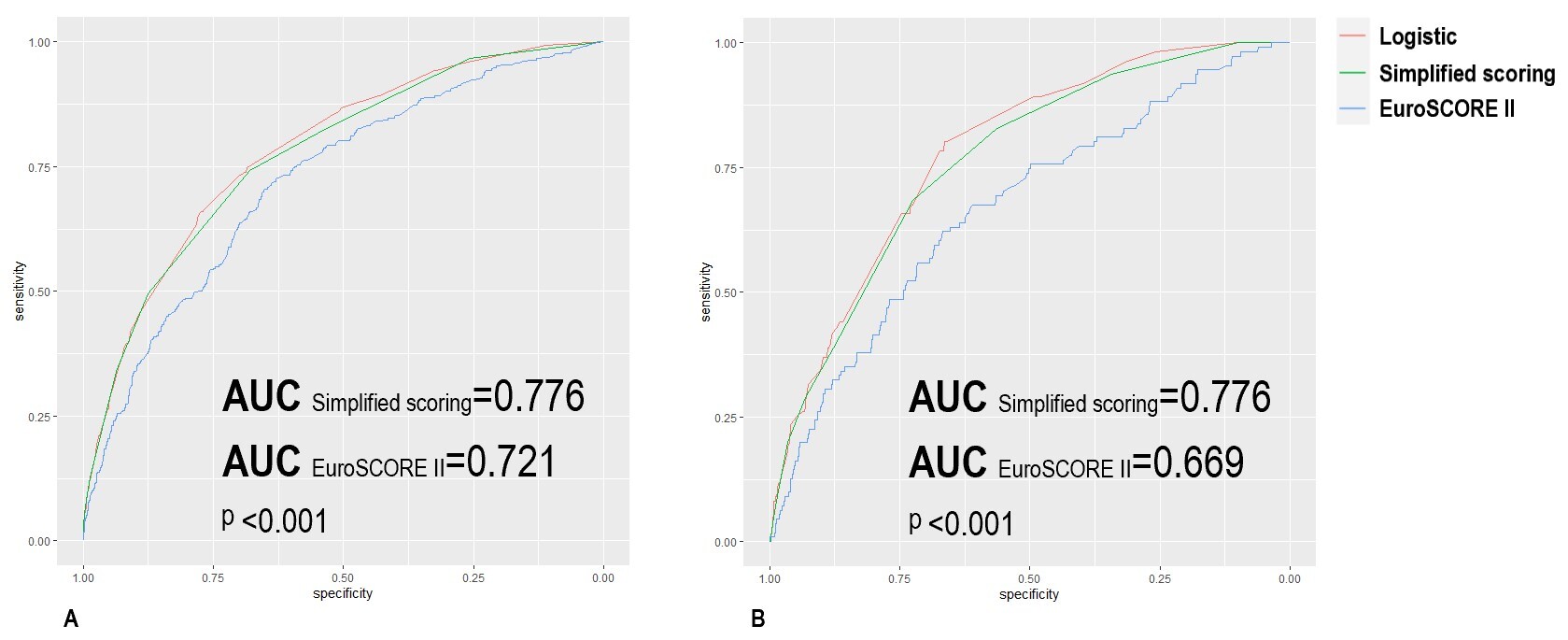

Receiver operating characteristic curves from final logistic model: simplified risk score model and EuroSCORE II (A: training group; B: testing group).
In the testing group, the AUC of our simplified scoring model was 0.776, which
was remarkably higher than EuroSCORE II with an AUC of 0.669 (Delong test,
p
Tables 4,5 show the AUCs and Brier scores of two models.
Logistic | Simplified scoring | EuroSCORE II | p value of Delong test (simplified scoring vs. EuroSCORE II) | |
---|---|---|---|---|
Training group | 0.784 (0.76–0.809) | 0.776 (0.75–0.8) | 0.721 (0.638–0.75) | |
Testing group | 0.786 (0.747–0.824) | 0.776 (0.736–0.816) | 0.669 (0.617–0.722) |
Logistic | Simplified scoring | EuroSCORE II | |
---|---|---|---|
Training group | 0.0271 | 0.0274 | 0.0279 |
Testing group | 0.031 | 0.0308 | 0.0318 |
Interestingly, we found the difference of performance between our simplified scoring model and EuroSCORE II might increase according to the degree of HF presented by the patients. Fig. 5 shows comparisons of ROC curves between two scores validated in subgroups of different NYHA classifications.

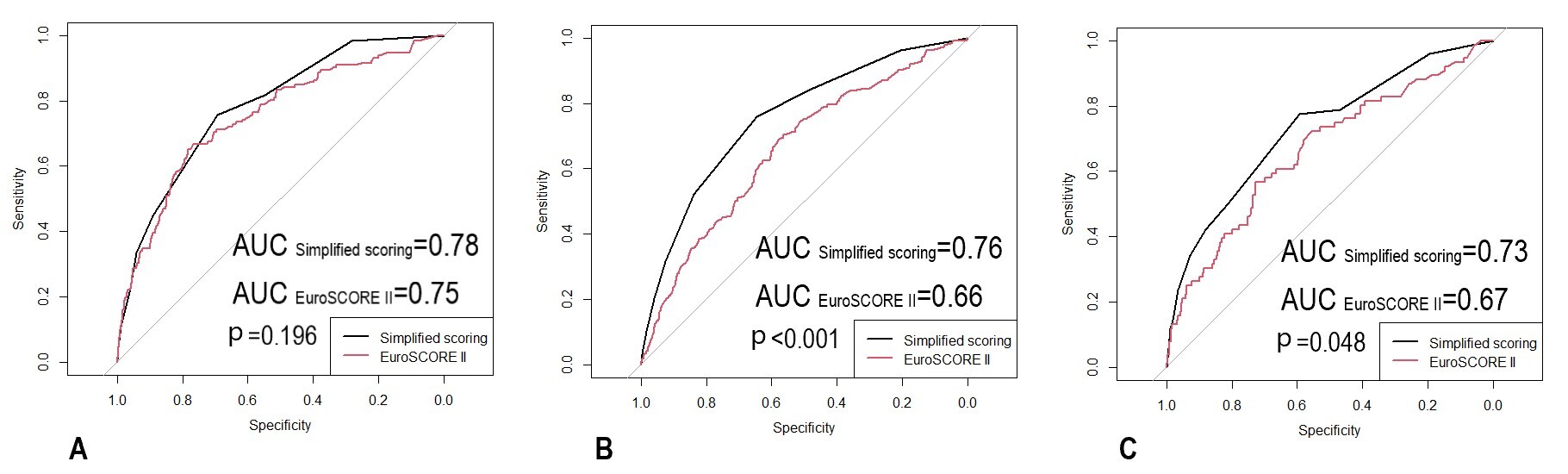

Receiver operating characteristic curves from our simplified scoring and EuroSCORE II in subgroups (A: NYHA II, n = 5594; B: NYHA III, n = 8011; C: NYHA IV, n = 1040).
This risk score is an effective and simple tool for mortality prediction after valvular surgery in patients with HF. Unlike the EuroSCORE II, which has 18 predictors, this model includes only 9 predictors which are easily accessible in clinical practice. The model is convenient for clinical use and could be a reliable bedside tool.
HF is a major health-care issue that is related to high resource usage and health-care costs [3]. HF is also the leading cause of hospitalization in people over the age of 65 [12]. VHD is amongst the most common primary causes of HF, and many VHD patients require surgery. HF has long been a focus of clinical perioperative evaluation as an independent risk factor for cardiac surgery. The definitive diagnosis of HF, on the other hand, is challenging, especially for HF with preserved LVEF, which necessitates a combination of clinical symptoms and signs, as well as a variety of objective laboratory and ultrasound indicators. Many patients cannot receive a precise diagnosis of HF prior to surgery due to the wide discrepancies in preoperative examination of VHD patients among different cardiac institutes in China. The target population of this study was therefore identified as suspected HF, which could be quickly diagnosed based on symptoms, signs, and valvular abnormalities, thereby enhancing the clinical application of this model. Previous prediction models may no longer be able to reliably estimate current surgical risk due to improvements in surgical techniques and perioperative treatment. Prediction models are time-sensitive: an excellent prediction model must be continuously updated. For instance, consider EuroSCORE II was released in 2012, and has nearly fully replaced EuroSCORE I, which was first published in 1999. Therefore, in our study, we developed a prediction model based on the most recent clinical data that could objectively reflect current VHD features and surgical outcomes.
Furthermore, the prediction model is region-specific, because people in different regions of the world have distinct disease features [13], and there is regional variation in therapeutic concepts and techniques [6, 14]. Currently, the most of widely used clinical prediction models (such as EuroSCORE II and the society of thoracic surgeons (STS) score) were based on western populations. These western models may not be ideal for Asia or the Chinese population. The EuroSCORE II has underperformed in the Chinese suspected HF population, according to our findings. Our subgroup analysis (Fig. 5) indicates that in terms of discrimination, our model was significantly better than EuroSCORE II among NYHA III or IV patients. As a result, developing a prediction model for Chinese suspected HF patients who require VHD surgery is important in clinical practice. Wessler et al. [6] published a study showing that many VHD prediction models performed poorly in validation. They suggested that one probable explanation is a lack of sample size or a poor representative of the sample population for model derivation. Fortunately, one of the advantages of our study is that the sample population is well-representative using the CCSR data. The CCSR is the largest Chinese multicenter cardiac surgery database, analogous to the STS in North America, and includes almost all high-quality cardiac hospitals in China. As a result, this risk model’s validation performance was satisfactory, and considerably better than EuroSCORE II. However, pending testing and practice in real world, this score’s clinical significance will have to be determined for other populations.
Preoperative renal function indicators (eGFR and prior dialysis) and cardiac
function indicators (NYHA IV and LVEF
The predictive probability of many existing VHD surgical risk models is not good [7, 17]. One of the reasons might be the diversity of VHD surgical methods and the relatively small sample sizes for model derivation [18]. Some investigations had proposed that, in addition to traditional factors, risk models should include more predictors to increase their effectiveness [7]. Given the vast number of intraoperative uncertainties in VHD surgery, we added certain essential intraoperative predictors to the model, in addition to some fundamental preoperative variables, to improve the model’s prediction capability. CPB time, for example, was chosen as a predictor in this study because CPB time provides a thorough reflection of surgical complexity and surgeon proficiency. The longer the CPB time, the more complex the surgery and/or the less skilled the surgeon.
Our risk score model’s primary goal is to offer patients and health care practitioners more accurate information about the risk of VHD surgery and to aid in decision-making. This simplified score model is simple to use, as it is based on nine predictors that are routinely accessed in VHD patients. When considering VHD surgery, it aids in stratifying the risk of mortality.
There is still a gap in nationwide representativeness between CCSR and STS. CCSR includes only data from high-quality cardiac centers in China, hospitals with lower operation volumes are not included. A definitive diagnosis of HF requires objective laboratory and ultrasound indicators. Unfortunately, there are many missing data of these indicators in the current database. Although this model can be used for preoperative evaluation, it is not a complete preoperative evaluation model due to the inclusion of intraoperative predictors. This model also needs external validation in real world practice to evaluate its clinical applicability. In addition, although all patients had HF at admission, after preoperative medical treatment, some of them had improved cardiac function by the time of surgery, and this updated information might not be collected in time. As a result, the data in CCSR might not actually reflect the latest status of every patient before surgery, and is one of the major limitations of this study.
The new risk score is an effective and concise tool that could accurately predict postoperative mortality rates in suspected HF patients after valve surgery.
Not applicable.
The CCSR registry is not publicly available, but the datasets used and/or analysed during the current study are available from the corresponding author on reasonable request. The permission to access and use the raw data was granted by Prof. Shengshou Hu and from the Fuwai hospital.
HYL and JFH designed the research study. HYL, JMG and KA performed the research. HYL analyzed the data and wrote the manuscript. YJW and ZZ supervised the research. All authors contributed to editorial changes in the manuscript. All authors read and approved the final manuscript.
This study had been approved by institutional review board of Fuwai hospital, Peking union medical college and Chinese academy of medical sciences (2021-1477). All methods were performed in accordance with the relevant guidelines and regulations. The written informed consents were obtained from all participants.
This study was conducted on behalf of the CCSR. We thank the colleagues from CCSR coordinating board for their excellent work on data management and all the members from the 94 participated hospitals. We thank the colleagues at Fuwai Hospital and the NCCD for their assistance with data audit and entry.
The current study and Drs Hou, Zheng, and Lin were supported by National Key R&D Program of China (2020YFC2008100).
The authors declare no conflict of interest.
