Background: Tuberculous aortic aneurysm (TBAA) is a rare complication of TB and is associated with high mortality. Early diagnosis is critical; however, it is challenging due to nonspecific symptoms. This study summarized the computed tomography (CT) features of TBAA with the aim of assisting with timely clinical diagnosis. Methods: Seventeen patients with TBAA between 2015 and 2020 were included in this study. The clinical manifestations, past medical history, laboratory and imaging examinations, treatments, and other data were collected and analyzed. CT angiography was performed in all patients. Results: All tuberculous aneurysms were pseudoaneurysms, which were located in the thoracic aorta (8/17, 47%), abdominal aorta (7/17, 41%), junction of the thoracic and abdominal aorta (1/17, 6%) or abdominal aorta and iliac artery (1/17, 6%) region. The shapes of all aneurysms were saccular, and nine of them were lobulated. The aneurysm diameter ranged from 3 to 12 cm. Of the 17 patients, 12 (71%) had calcification; 14 (82%) had intraluminal thrombus; 12 (71%) showed enlarged lymph nodes, which were closely related to the aneurysm; and 9 (53%) had tuberculous spondylitis including TB of the thoracic lumbar and lumbosacral spine. Psoas abscess was detected in 4 (23%) patients and iliopsoas abscess was detected in 1 (6%) patient. Conclusions: TBAA typically shows mycotic shapes on CT scans. Another feature is that the surrounding tissues and adjacent organs of tubercular aneurysms are usually infected with TB, and most of them are accompanied by other sites of TB.
Tuberculosis (TB) is a communicable disease that is a major cause of ill health and the leading infectious disease killer globally [1, 2]. China is one of the high TB burden countries; new TB patients in China accounted for about 8.4% of the world’s cases in 2019, ranking third worldwide . The TB incidence rate has slowly declined since the beginning of the 21st century because of human immunodeficiency virus (HIV) infection, anti-TB drug resistance, and the use of immunosuppressive drugs . Other risk factors for TB are diabetes mellitus, silicosis, smoking, air pollution, malnutrition and protein imbalance . TB typically affects the lungs (pulmonary TB) but can also affect other sites. Tuberculous aortic aneurysm (TBAA) is exceedingly rare . The first case of TBAA was reported by Kamen in 1895 [5, 6]. TBAA is associated with high mortality due to its high risk of sudden rupture. No TBAA patients were known to have survived until the availability of combined technologies of modern imaging, anti-TB therapy, and surgical treatment . Early diagnosis and prompt treatment are important for the improvement of survival . However, early diagnosis is difficult due to the non-specific symptoms and negative blood cultures. Some cases are diagnosed at an advanced stage or after developing complications, such as rupture or aortic fistula.
Current imaging modalities can detect infected aneurysms in clinically suspicious patients including computed tomography (CT), magnetic resonance imaging (MRI), and 18F-fluorodeoxyglucose (FDG) positron emission tomography (PET)/CT . CT angiography (CTA) with arterial and venous phases imaging enables evaluation of the entire aorta. CTA is non-invasive and efficient, with broad coverage and isotropic voxel capabilities; thus, it is increasingly used for the diagnostic assessment of aortic disease including TBAA.
This study retrospectively reviewed 17 cases of patients with TBAA, and collected their clinical data, laboratory tests, imaging findings, and treatment for analysis. The CTA imaging features of all TBAA patients were summarized and analyzed.
This was a multicenter, retrospective study of patients presenting with TBAA at Beijing Anzhen Hospital, Fuyang Hospital of Anhui Medical University, and Liuzhou People’s Hospital from January 2015 to December 2020. A total of 17 cases diagnosed with TBAA were retrieved from the medical records of each clinical center. The diagnosis of TBAA was based on a combination of the following criteria: CTA suggesting infectious AA; accompanied by TB; exclusion of other infectious aneurysms; and standard anti-TB therapy was effective. The clinical manifestations, past medical history, laboratory and imaging examinations, therapies, and other data of patients were collected from the medical record system.
All of the patients received CTA. CT scans were conducted on a 64- or 128-slice scanner (as the patients were enrolled from several medical centers, the scanners were different). Aortic CTA images were acquired when 75–85 mL contrast medium was administered intravenously at a rate of 4–5 mL/s, followed by intravenous injection of 30–40 mL saline chaser at the same rate as the contrast medium. Images were reconstructed with a slice thickness of 0.5–0.75 mm and a reconstruction interval of 0.25–0.5 mm. Postprocessing of the images (we obtained the original CT (A) Digital Imaging and Communications in Medicine data from all of the centers) was performed on a separate workstation (Vitrea FX Workstationl Vital Images, Minnetonka, MN, USA). Then 1-mm-thick axial, multiplanar reformations, volume-rendered, and maximum intensity projection images of the aorta were produced.
The CT images were independently reviewed by two cardiothoracic radiologists (with 20 years and 8 years of experience in the field), and final decisions were reached by consensus. As previously reported , the following items were regarded as being predictive for mycotic aneurysms on CT images: site of mycotic aneurysms, calcification of the aneurysm wall, absence or presence of aneurysm wall enhancement, presence of air bubble around the aneurysm, bone destruction of adjacent vertebra, soft tissue involvement around the aneurysm (psoas abscess, retroperitoneal abscess, or peritoneal abscess), enlarged lymph nodes near lesions, and other infectious foci outside the aorta.
In this study, 12 of 17 (71%) patients with active pulmonary TB included those with bacteriologically positive sputum (smear-positive), with imaging findings of active pulmonary disease. The remaining five patients with extrapulmonary TB included those with typical imaging findings of extrapulmonary TB, in whom anti-TB therapy was effective, known as clinically diagnosed TB.
The clinical and laboratory features and outcomes of the 17 cases are described
in Table 1. The mean age of the patients was 57.41
|Patients||Age (y)/sex||Symptoms||Past medical history||Extravascular tuberculosis||Sputum tuberculosis test||CRP (mg/L)/ESR (mm/h)||Surgical treatment of aortic aneurysm||Outcome|
|1||50/F||Chest pain||No||Pulmonary TB||+||83/65||Endovascular grafting||Improvement|
|2||55/M||Chest pain||No||Thoracic vertebra TB||–||62/45||No||Lost to follow-up|
|3||81/M||Abdominal pain||Lumbar TB; psoas abscess||–||73/51||Endovascular grafting||Endoleak|
|4||62/M||Low back pain||Diabetes||Lumbar TB; psoas abscess||–||78/55||Endovascular grafting||Improvement|
|5||76/M||Abdominal pain||Diabetes||Lumbar TB||–||82/38||No||Lost to follow-up|
|6||73/F||Chest pain and fever||Hypertension||Pulmonary TB; lumbar TB; psoas abscess||+||98/48||No||Death|
|7||20/M||Low back pain||No||Pulmonary TB; lumbar TB; psoas abscess||+||88/42||No||Death|
|8||6/M||Chest pain and fever||No||Pulmonary TB||+||68/33||Open surgical repair||Improvement|
|9||74/M||Fever, back pain and abdominal pain||No||Pulmonary TB; lumbar TB||+||66/41||No||Death|
|10||42/M||Left lower limb pain||No||Renal TB; pleural TB; psoas abscess||–||82/55||Endovascular grafting||Improvement|
|11||74/M||Abdominal pain and cough||Diabetes||Pulmonary TB; lumbosacral TB||+||83/45||No||Death|
|12||72/M||Fever||No||Pulmonary TB||+||74/38||Endovascular grafting||Improvement|
|13||47/M||Fever, left lower limb pain||HIV, syphilis||Pulmonary TB; iliopsoas abscess||+||103/65||No||Death|
|14||57/M||Chest distress and dyspnea||Diabetes||Pulmonary TB, prostate TB||+||87/54||Open surgical repair||Improvement|
|15||84/M||Fever, chest pain, and hemoptysis||Diabetes||Pulmonary TB||+||112/50||No||Death|
|16||45/F||Fever and chest pain||No||Pulmonary TB||+||92/58||No||Lost to follow-up|
|17||58/F||AA was found during thoracic spine tuberculosis surgery||No||Pulmonary TB; thoracic vertebra TB||+||96/39||Endovascular grafting||Improvement|
|TBAA, tuberculous aortic aneurysm; CRP, C-reactive protein; ESR, the erythrocyte sedimentation rate; F, female; HIV, human immunodeficiency virus; M, male; TB, tuberculosis. The normal range of ESR, male, 0–15 mm/h, female, 0–20 mm/h. The normal range of CRP, 0–8 mg/L.|
The imaging results of CTA are summarized in Table 2. All tuberculous aneurysms were solitary pseudoaneurysms located in the abdominal aorta (7/17, 41%, Patient Nos. 3, 4, 5, 7, 9, 10, 11; Fig. 1), thoracic aorta (8/17, 47%, Patient Nos. 1, 2, 8, 12, 14, 15, 16, 17; Fig. 2), junction of thoracic and abdominal aorta (1/17, 6%, Patient No. 6), both abdominal aorta and iliac artery (1/17, 6%, Patient No. 13; Fig. 3). The shapes of all aneurysms were saccular, and nine of them were lobulated—the wall of the aneurysm was irregular. In the death group, all six aneurysms were lobulated based on the saccular shape. Four (24%) of the aneurysms were found to have a large saccular appearance with septum (Fig. 2D). The diameter of the aneurysm ranged from 3 to 12 cm. Twelve (71%) patients had calcification, which was consistent with atherosclerosis. Intraluminal thrombus was found in 14 (82%) patients (Fig. 2D). Significant exudation around aneurysm was found in three patients (18%; Fig. 1) and no gas bubbles were found. Necrosis and abscess were found around the aorta (Fig. 2D). Twelve (71%) patients showed enlarged lymph nodes, which were connected to or around the aneurysm (Fig. 1D). Nine (53%) patients had tuberculous spondylitis including TB of the thoracic aorta (2/17, 12%), lumbar and lumbosacral spine (7/17, 41%; Figs. 1,2). Psoas abscess was found in five (29%) patients and iliopsoas abscess (IPA) was found in one patient (6%; Fig. 3). Aortobronchial fistula was detected in one patient (6%; Fig. 4). Multiple miliary nodules were found in bilateral lungs by pulmonary CT (Figs. 1A,2B,4A). Spinal CT scan demonstrated destruction of the vertebral body, and soft tissue swelling or abscess around the vertebral body were also visualized (Figs. 1A,2A,5). The growth of the aneurysm was rapid (Fig. 5).
|Patients||Site||Shape||Outside diameter (mm)||Effusion/gas bubble/Septum||Mural thrombus||Enlarged lymph nodes||Calcification||Surrounding tissue|
|1||Thoracic aorta||Saccular||39||+/–/ –||–||+||–||Multiple TB nodules in bilateral lung|
|2||Thoracic aorta||Saccular||36||–/–/–||+||+||+||Destruction of thoracic vertebral body; postoperative thoracic vertebra internal fixation|
|3||Abdominal aorta||Saccular||110||–/–/–||+||+||+||Destruction of vertebral body from L3 to L5; psoas abscess|
|4||Abdominal aorta||Lobulated||105||–/–/–||+||+||+||Destruction of lumbar vertebral body; psoas abscess|
|5||Abdominal aorta||Lobulated||120||–/–/–||+||+||+||Destruction of vertebral body from L3 to L4|
|6||The junction of thoracic aorta and abdominal aorta||Lobulated||73||–/–/–||–||+||+||Multiple TB nodules in bilateral lung; destruction of lumbar vertebral body; psoas abscess|
|7||Upper abdominal aorta||Lobulated||83||+/–/+||+||+||–||Multiple TB nodules in bilateral lung; obvious destruction of lumbar vertebral body; psoas abscess|
|8||Thoracic descending aorta||Saccular and lobulated||30||–/–/–||–||+||–||Multiple TB nodules in bilateral lung|
|9||Upper abdominal aorta||Large saccular, cyst wall separation||45||+/–/+||+||+||+||Multiple TB nodules in bilateral lung; erosion of the vertebral body and endplate at T9 and T10; perivascular abscess|
|10||Abdominal aorta||Lobulated||111||–/–/+||+||+||–||Psoas abscess; kidney and pleura involvement|
|11||Upper abdominal aorta||Saccular and lobulated||100||–/–/–||+||–||+||Multiple TB nodules in bilateral lung; destruction of lumbosacral vertebral body|
|12||Thoracic aorta||Saccular||32||–/–/–||+||–||+||Multiple TB nodules in bilateral lung|
|13||Abdominal aorta and iliac artery||Saccular and lobulated||94||–/–/+||+||+||+||Multiple TB nodules in bilateral lung; iliopsoas abscess|
|14||Ascending aorta||Saccular||59||–/–/–||+||+||+||Multiple TB nodules in bilateral lung|
|15||Thoracic descending aorta||Saccular and lobulated||72||–/–/–||+||–||+||Multiple TB nodules in bilateral lung; aortobronchial fistula|
|16||Thoracic descending aorta||Saccular||33||–/–/–||+||–||–||Multiple TB nodules in bilateral lung|
|17||Descending aortic arch||Saccular||58||–/–/–||+||–||+||Multiple TB nodules in bilateral lung; destruction of vertebral body from T2 to T7|
|TBAA, tuberculous aortic aneurysm; L, lumbar vertebra; T, thoracic vertebra; TB, Tuberculosis.|
Tuberculous spondylitis involved the aorta (Patient No. 9). A 74-year-old man presented with repeated fever combined with back pain 8 months ago and abdominal pain for 1 month. (A,B) Computed tomography (CT) of lung scan images in September 2018. Multiple miliary nodulas could be in the bilateral lungs, erosion of the vertebral body and endplate at T9 and T10 and the right side of the T11 vertebral body, soft tissue swelling or abscess around the vertebral body (arrow in A). The aorta outline was distinct, the abscess around the vertebral body at T8 to T11 (arrow in B). (C) One month after tuberculous spondylitis surgery at T9 and T10 without standard anti-tuberculosis drug treatment. The lesion in T11 progressed, and the abscess around the vertebral body was enlarged (arrow), even after debridement was performed. (D) Seven months later, the patient developed abdominal pain. Coronal view of contrast-enhanced CT images in May 2019 demonstrated a large pseudoaneurysm at the level of T11 and enlarged lymph nodes with a hypodense center, which indicated necrosis (arrow). T, thoracic vertebra.

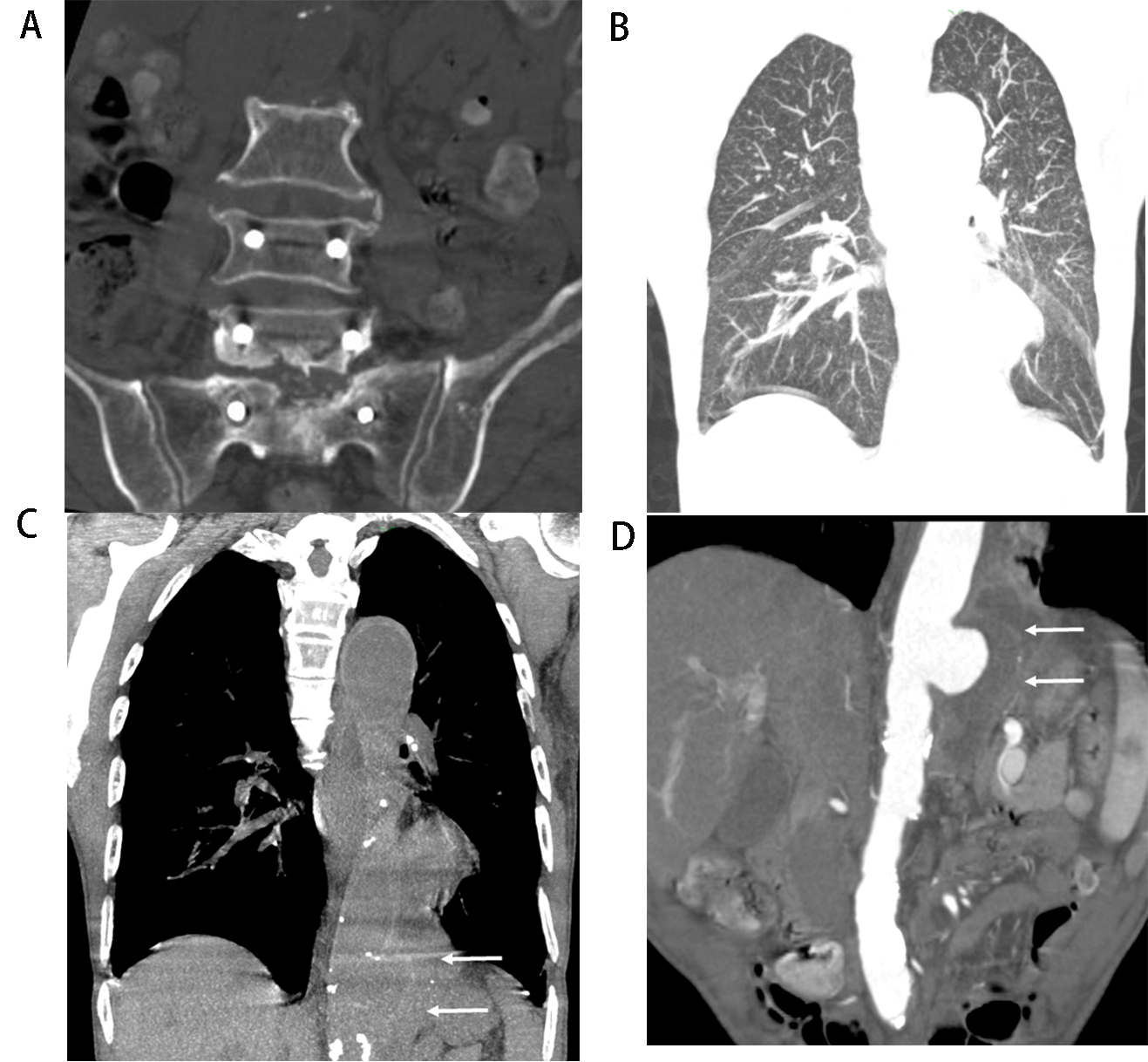

Tuberculous aortic aneurysm with abscess (Patient No. 11). A 74-year-old man, who underwent surgical treatment of lumbosacral TB 1 year prior, complained of cough and abdominal pain for 3 months. (A) Lumbar and sacrum spinal computed tomography (CT) scan showed destruction of the vertebral body from L5 to S1 and internal fixation from L4 to S1. (B) Coronal multiplanar reformation of lung CT demonstrated multiple miliary nodules in bilateral lungs. (C) Outline of the distal segment of the thoracic aorta was obviously enlarged (arrows). (D) Coronal view of abdominal CT angiography showed that the left wall was disrupted and a mural thrombus formed in the lumen (arrows) and lower density in the periaortic soft tissue with septum, which indicated necrosis and abscess. L, lumbar vertebra; S, sacral vertebra.

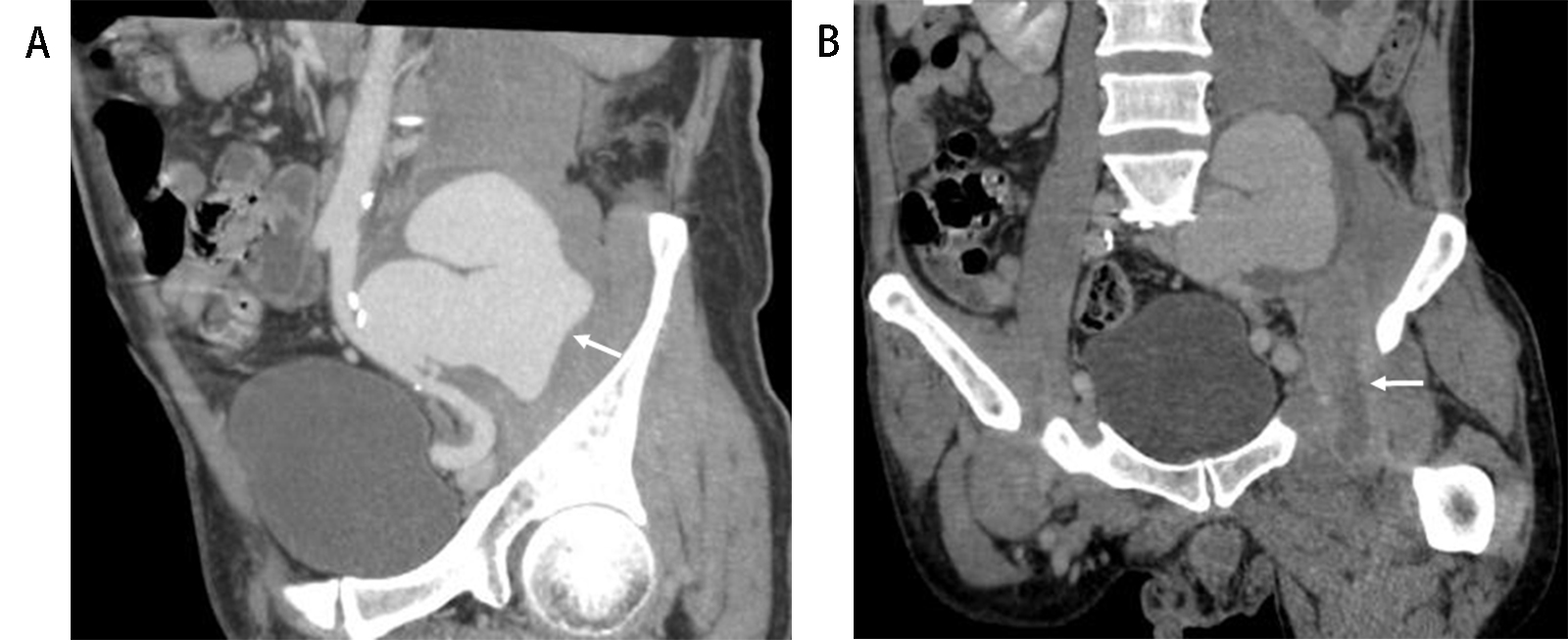

Iliopsoas abscess associated with tuberculous aortic aneurysm (Patient No. 13). A 47-year-old man with a history of human immunodeficiency virus, syphilis, and TB, presented with fever and left lower quadrant abdominal pain for 1 month. (A) Multiple planner reconstruction computed tomography angiography of the left iliac artery showed giant lobulated aortic aneurysm (arrow). (B) Left iliopsoas muscle showed swelling and was enlarged with a relatively low-density area, with contrast-enhanced rim of the abscess wall (arrow).

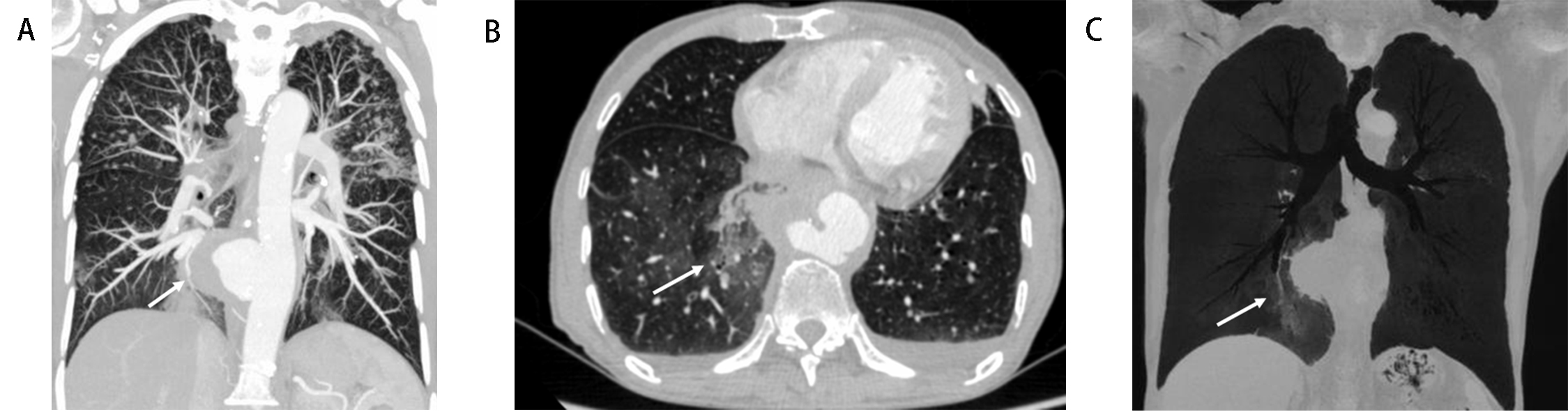

Aortobronchial fistula (Patient No. 15). An 84-year-old male with a history of diabetes mellitus and TB presented with fever, chest pain, and hemoptysis. (A) Maximum-intensity projection image shows multiple small nodules with sharp edges and upper lobe distribution, saccular pseudoaneurysm of the thoracic aorta with surrounding soft tissue (arrow). (B) Transverse view demonstrates patchy ground-glass opacity in the right lower lobe consistent with alveolar hemorrhage (arrow). (C) Minimum-intensity projection image shows the lumen of right basal segmental bronchus (arrow, adjacent to the aneurysm wall) obstruction filled with high-density material.

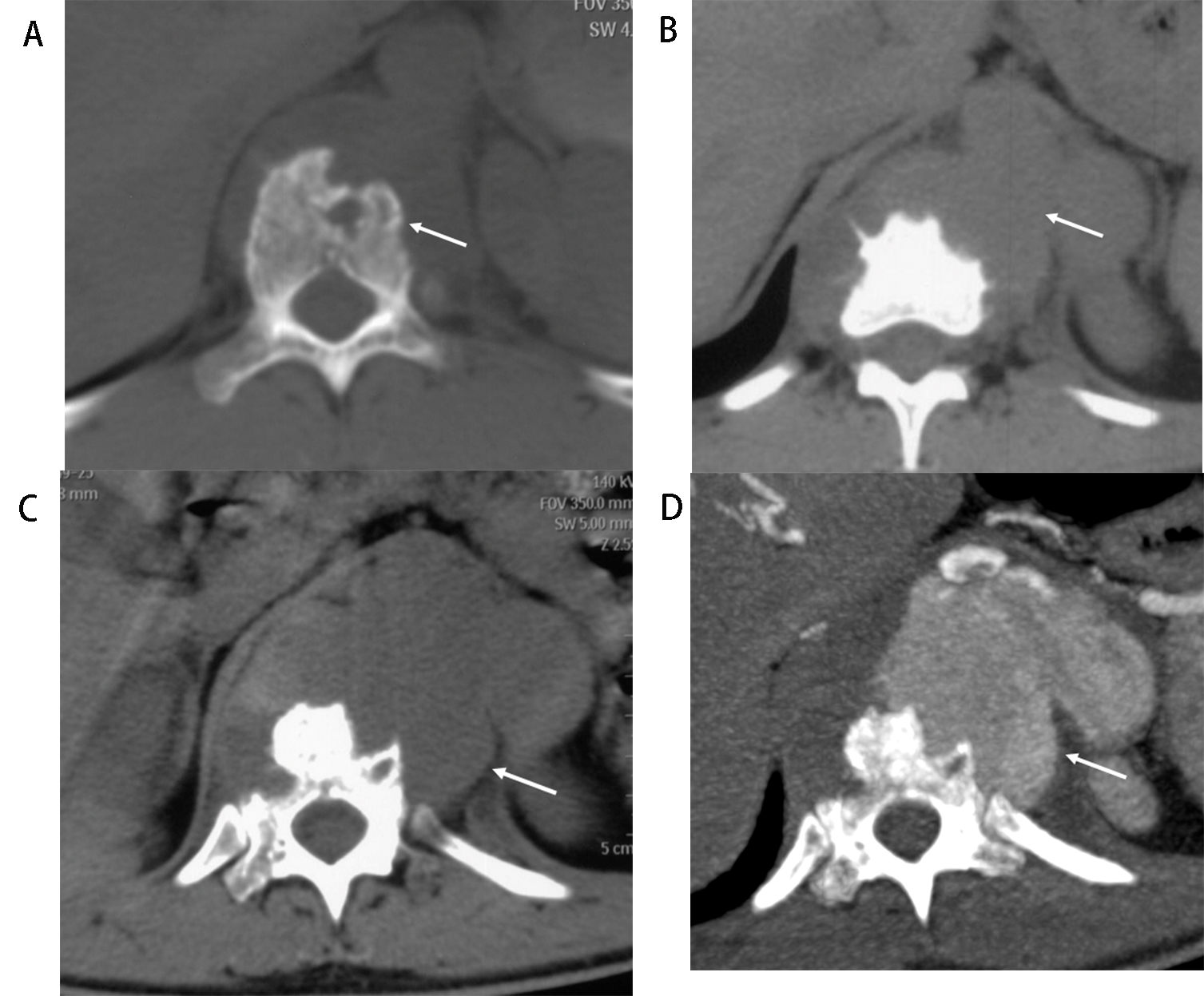

Rapid growth of TBAA (Patient No. 7). A 20-year-old male with a 3-month history of back pain, low fever (37.5–37.9 °C), and a further acute episode of back pain aggravated in recent days. (A) Initial lumbar vertebral computed tomography (CT) imaging (August 20, 2015) shows erosion of the vertebral body and endplate at T11 (arrow) with soft tissue swelling or abscess around the vertebral body. The outline of the aorta is distinct. (B) Lumbar vertebral CT after 53 days (October 13, 2015) reveals obliteration of fat planes between the vertebral body and aorta, the outline of the aorta protrudes to the left posteriorly (arrow). It suggests the aorta is involved. (C) Two weeks later (October 27, 2015), the obvious progression in the vertebral body’s destruction and surround tissue can be shown (arrow), the outline of the aorta is enlarged, which is confirmed by CT angiography (CTA). (D) CTA on November 3 2015 showed lobulated pseudoaneurysm formed adjacent to the eroded vertebral body. T, Thoracic vertebra.
Mycotic aortic aneurysm of TB is a rare complication of TB but with high mortality. When mycotic aneurysms are present in the context of TB, and particularly, disseminated TB, TBAA should be suspected . TB of any type was diagnosed on presentation in all of our cases. A few patients had an underlying condition that is known to increase the risk of TB such as HIV infection, diabetes, or oral immunosuppressants . Most of the reported cases of TBAA are symptomatic, but the symptoms are nonspecific and depend on the size, position, and rapid growth of the aneurysm. Patients may describe thoracic, abdominal, or dorsal pain, which may be accompanied by fever. Fever occurs in 35% of patients . In this study group, the proportion of fever was relatively high, with seven patients having fever (41%). They may also present with palpable or a radiographically visible periarterial mass, especially if expanding or pulsatile. Hemorrhage or hypovolemic shock may occur if the aneurysm ruptures or perforates. If a fistula is formed between the aneurysm and the nearby organs, such as the trachea or intestines, massive hemoptysis  or gastrointestinal bleeding  may occur. The poor prognosis of these patients emphasizes the importance of early diagnosis.
The vast majority of tuberculous aneurysms are pseudoaneurysms (87%), although true (9%) or dissecting (4%) aneurysms have been described . All tuberculous aneurysms of our patients were pseudoaneurysms. About 75% of TBAAs present as a contiguous lesion on the surrounding tissue, such as tuberculous lymphadenitis, pericarditis, empyema, spondylitis, or paravertebral abscess . Caseous necrosis invading the entire arterial wall results in perforation, some with massive hemorrhage or perivascular hematoma formation. Fibrosis gradually forms in the periphery of hematoma, and the hematoma is encapsulated and communicated with the lumen. Thus, the pseudoaneurysm is formed . Extravascular TB was found in all patients of this group. TB adjacent to aneurysm includes miliary pulmonary TB, tuberculous spondylitis, pleural TB, renal TB, IPA or psoas abscess. Some patients have multiple TB sites. Other mechanisms of tuberculous aneurysm formation may include the following: mycobacterium TB reaching the vessel wall through vasa vasorum, spread of bacteria through lymphatic vessels around the artery, and direct implantation of bacteria on the internal surface of the vessel wall after vasculature trauma. Normal arterial intima is very resistant to infection. Atherosclerosis can alter the arterial lining and lower the resistance to infection . At present, the incidence of TB is increasing in the elderly population who have the highest incidence of atherosclerosis; thus, it could be anticipated that seeding of the aorta would be a common finding.
CECT can provide valuable information about the morphology of AA, aortic wall
enhancement, and the relationship between the aneurysm and adjacent tissue
because of the higher quality spatial resolution. TBAA typically appears on CT as
a focal, contrast-enhancing, saccular lumen, with an indistinct, irregular aortic
wall . Tuberculous aneurysms may occur anywhere along the arterial system
and usually occur as a solitary lesion . The thoracic aorta
is the most common location , because it is adjacent to the lungs and
mediastinum where TB most commonly occurs. In this group, the incidence of TB
pseudoaneurysm is the same in the thoracic or abdominal aorta . Less
frequently, femoral , iliac  and subclavian  arteries can also be
affected. It has been reported that most of the aneurysms are saccular (98%)
. The shapes of TBAA in this study were all saccular, and nine of them were
lobulated—the wall of the aneurysm was irregular. A lobulated aneurysm
indicates more instability and higher risk of rupture. All aneurysms of the six
patients who died were lobulated based on the saccular shape.
The diameter of aneurysm ranged from 3 to 12
cm. The size of the aneurysm is neither a risk factor of
rupture nor the necessity for influencing treatment . Because one or more
layers of mycotic aneurysm wall are missing, they all have the risk of rupture,
no matter the size. However, the rapidly progressive growth of aneurysms (
Eccentric periaortic surrounding soft tissue can show as a rim or septum enhancement by the administration of contrast material (venous phase) on CECT. Significant exudation around aneurysm was in three patients in this study. Exudation and edema around aneurysm suggest that the aneurysm was unstable and may have ruptured with extravasation. CT cannot differentiate between the exudation and edema from hematoma, whereas MR can provide more information due to its high tissue resolution. Lymph nodes adjacent to TBAA might also appear swollen and enhanced. These enlarged lymph nodes showed ring enhancement and necrosis in the center. TB can cause progressive enlargement of the surrounding lymph nodes, and the rupture of lymph nodes can spread to the adjacent aorta to form an aneurysm. Tuberculous aneurysm can also cause lymph node hyperplasia. A causal relationship between aneurysm and enlarged lymph nodes was not identified, especially in the late stage of the disease. IPA or psoas abscess is a common complication in the abdominal TBAA, presenting as a direct invasive infection with purulent materials occurring within the iliopsoas or psoas muscles. The typical features on CT are enlarged and swollen muscles with single or multiple relatively low-density areas and contrast enhanced rim of the abscess wall. In tuberculous spondylitis patients, TBAA can involve secondary spread from spine lesions. Primary and secondary pyogenic spondylitis manifests as erosion of the vertebral body and/or intervertebral disc on CT. Soft tissue swelling or abscess may be detected around the vertebral body. Pseudoaneurysm may develop adjacent to the eroded vertebral body, which greatly increases the risk of rupture during surgery. It was reported that an abdominal AA was iatrogenically ruptured during surgery for lumbar tuberculous spondylitis with psoas abscess . In one case in this study, the patient’s AA was found during thoracic spine tuberculosis surgery. It is very important to evaluate the presence of aneurysm before surgery in patients with tuberculous spondylitis. Tuberculosis in other parts can usually be found in TBAA patients by CT scan, such as pulmonary TB, renal TB, and TB of the reproductive system.
Treatment of TBAA includes anti-TB chemotherapy treatment, open surgery (in situ reconstruction or extra-anatomic bypass), and endovascular treatment (embolization, aortic stent grafting) . The mortality rate of tuberculous aneurysm is 35% in this group, which is still high. Early diagnosis and timely treatment are critical in reducing the mortality of TBAA. CT plays an important role in the diagnosis of TBAA, especially for some patients without conditions (economic reasons, no MRI/PET equipment), or with contraindications to MRI [3, 23]. TBAA shows saccular shapes on CT scans, which are imaged as unstressed. Another distinguishing feature is that the surrounding tissues and adjacent organs of TBAA are usually infected with TB, and most of them are accompanied by other sites of TB. Regular CT follow-up is also important for diagnosis. The limitation of this study was the absence of TB etiology in most cases with no follow-up in those who survived treatment. Future studies will address this limitation.
In conclusion, this study showed that TBAA typically appears on CT as a single saccular pseudoaneurysm, and the incidence is the same in the thoracic or abdominal aorta. Surrounding tissues and adjacent organs of pseudoaneurysm are infected with TB, and other sites of TB may be found.
