Six-week-old male ICR mice (29–31 g, n = 80) were purchased from Vital River Laboratory Animal Technology Co., Ltd. in Beijing, China (certificate number, SCXK [Jing] 2016–0006). Mice in all groups were kept at 23 $\pm$ 1 ${}^{\circ }$C and a 12-h light/dark cycle (light on 7:00–19:00). During the experimental period, the mice were given free access to tap water and food. All animal experiments were carried out in accordance with the National Institutes of Health Guide for Care and Use of Laboratory Animals [15], and the Institutional Animal Care and Use Committee of Beijing University of Chinese Medicine approved the protocol (BUCM-4-2020100803-4136, 8 October 2020). All efforts were made to minimize animal suffering and reduce the number of animals used.

After 3 days of mice were fed, mice (n = 80) were randomly assigned to four groups (n = 20 per group), i.e., the control group, the LPS-treated group (LPS group), the 20 mg/kg Rb1 group (Rb1 20+LPS group) and the 40 mg/kg Rb1 group (Rb1 40+LPS group).

Rb1 (purity $>$98%, Chengdu Must Bio-Technology, Chengdu, China) was dissolved in normal saline (NS) (Shijiazhuang No. 4 Pharmaceutical, Shijiazhuang, China). Mice were administered Rb1 intraperitoneally (i.p.) to achieve 20 mg/kg/day (Rb1 20+LPS group) or 40 mg/kg/day (Rb1 40+LPS group) for a week (9:00–11:00 AM) (Fig. 1). The control and LPS-treated groups were treated with NS. To create a systemic inflammatory model, a single intraperitoneal injection of 3 mg/kg LPS (Escherichia coli, 0111: B4, Sigma, St. Louis, MO, USA) dissolved in NS was given to each mouse within 15–30 min after the last Rb1 injection or NS injection (excluding the control group).

Fig. 1.

The experimental design. ICR mice were intraperitoneally (i.p.) injected with 20 or 40 mg/kg Rb1 or saline for 7 consecutive days. On the 7th day, 30 minutes after Rb1 or saline administration, a single dose of LPS (LPS group, Rb1+LPS group) or saline (control group) was injected i.p. into the mice. The locomotive activity was evaluated using the open-field test and the beam walking test at 20–24 h after the LPS injection. Mice were anesthetized with 7 mL/kg 1% pentobarbital sodium and transcardially perfused with ice-cold NS and 4% PFA 24 h after LPS injection for subsequent immunohistochemistry. Mice were anesthetized with 7 mL/kg 1% pentobarbital sodium and sacrificed 24 h after LPS injection for subsequent Western blot analysis and ELISA.

The locomotive activity was evaluated using the open-field test at 20 h after the LPS injection (Fig. 1). Each mouse (n = 20 per group) was placed in the center of an open field apparatus (W50 $\times$ D50 $\times$ H40 cm), and free moving behavior was monitored for 5 minutes, and their behavior was recorded by the animal behavior analysis system (Etho-Vision XT9, Noldus, Wageningen, The Netherlands). The total distance moved and the crossing lines, moving and not moving durations, and velocity was analyzed. The open field apparatus was cleaned with 70% ethanol (Sinopharm Chemical Reagent Co., Ltd, Shanghai, China), and it was ensured that ethanol evaporated fully between trials.

Mice (n = 20 per group) were trained for two days to walk from a start platform along a square beam (80 cm long, 3 cm wide) elevated 30 cm above the bench by supports to a goal box. Three trials to traverse the beam were performed for each mouse daily, and mice were excluded from the cohort if they could still not traverse the beam autonomously and smoothly after 2 days of training. On the third day, the mice were tested on the cylindrical beam (80 cm long, 8 mm diameter) after the open field test. The time to traverse each beam (up to 60 s) was recorded, and the performance on the beam was evaluated by the scoring system adapted from the method of Feeney et al. [16, 17, 18]. The higher the score, the better the mice performed. Mice that traversed the beam normally with no foot slip were given a score of “5”; those that traversed the beam successfully and foot slips occurred on less than half of the way were given a score of “4”; those that traversed the beam successfully and foot slips occurred on more than half of the way were given a score of “3”. Mice that fell from the beam were given a score of “2”, and those unable to place limbs on the beam surface were given a score of “1”. Such situations were allotted a maximum latency of 60 seconds. The walking beam apparatus was cleaned with 70% ethanol, and it was ensured that ethanol evaporated fully between trials.

Mice (n = 6 per group) were anesthetized with 7 mL/kg 1% pentobarbital sodium (Sigma, St. Louis, MO, USA) and transcardially perfused with ice-cold NS and 4% paraformaldehyde (PFA) (Servicebio, Wuhan, China) 24 h after LPS injection. The brains were then placed in PFA and were preserved by paraffin embedding. Sagittal sections at 5 $\mu$m were deparaffinized and were placed in a repair box filled with EDTA antigen retrieval buffer (pH 8.0) (Servicebio, Wuhan, China) in a microwave oven for antigen retrieval. Non-specific proteins were blocked using 5% BSA (Servicebio, Wuhan, China) in PBS (Servicebio, Wuhan, China) for 30 minutes before incubation in a cocktail of primary antibodies, i.e., rabbit polyclonal anti-GLT-1 (1:1000; Proteintech, Rosemont, IL, USA)+mouse polyclonal anti-GFAP (1:800; Servicebio, Wuhan, China), rabbit monoclonal anti-GS (1:1000; Proteintech, Rosemont, IL, USA)+mouse polyclonal anti-GFAP (1:800; Servicebio, Wuhan, China) and mouse polyclonal anti-NeuN (1:200; Servicebio, Wuhan, China)+rabbit monoclonal anti-IBa-1 (1:200; Servicebio, Wuhan, China), overnight at 4 ${}^{\circ }$C. The sections were washed three times for 5 min in PBS (pH 7.4) (Servicebio, Wuhan, China) and further incubated with an appropriate combination of fluorochrome-tagged secondary antibodies, i.e., Cy3-labeled Goat Anti-Rabbit IgG (Servicebio, Wuhan, China), Alexa Fluor® 488-labeled Goat Anti-Mouse IgG (Servicebio, Wuhan, China), at a dilution of 1:500 for 50 min at room temperature. After proper washing in PBS were incubated with DAPI (Servicebio, Wuhan, China) for 10 min at room temperature in the dark and were mounted with an antifade mounting medium after PBS washing. Images of the brain were scanned with the Pannoramic Digital Slide Scanners (Pannoramic MIDI, 3D HISTECH, Budapest, Hungary) and were captured with Caseviewer 2.3 (3DHISTECH Ltd, Budapest, Hungary). The quantitative analysis of immunostained cells per field was done using Image J software (National Institutes of Health, Bethesda, MD, USA). Five visual fields were randomly selected, and inconsistency in background intensity was abolished. The pyramidal cells of the hippocampus appeared in a multilayered and compact arrangement, so the neurons in the CA1 stained by immunofluorescence were of slightly lower resolution. When counting the number of neurons in the CA1 region of the hippocampus, it was more accurate to count the number of double positive cells that DAPI co-label with NeuN on the CA1 using Image J software.

Mice (n = 3 per group) were anesthetized with 7 mL/kg 1% pentobarbital sodium and sacrificed 24 h after LPS injection. The brains were collected and deep-frozen in liquid nitrogen followed by transfer to –80 ${}^{\circ }$C for further analysis. The brain tissue was homogenized and sonicated on ice in RIPA lysis buffer (KeyGen Biotech, Nanjing, China) and protease inhibitor cocktail (KeyGen Biotech, Nanjing, China). After centrifugation, the supernatant was collected and assayed for protein concentration using the BCA protein quantitation assay (KeyGen Biotech, Nanjing, China). Lysate samples containing 10 $\mu$g of protein were fractionated by 10% SDS-PAGE for 45 min at 60 V and then 75 min at 100 V, and transferred onto a polyvinylidene difluoride (PVDF) membrane (Millipore, Boston, MA, USA) under ice bath conditions about 65 min 100 V. The PVDF membrane was blocked in newly prepared 5% novisualizedn-fat powdered milk (BioRuler, Danbury, CT, USA) for 1 h at room temperature and incubated with primary antibodies for GLT-1 (1:1000; rabbit monoclonal antibody, Abcam, Cambridge, MA, USA), GS (1:4000; rabbit polyclonal antibody, Proteintech, Rosemont, IL, USA), $\beta$-actin (1:12000; mouse monoclonal antibody, Proteintech, Rosemont, IL, USA), and $\beta$-tubulin (1:8000; rabbit polyclonal antibody, Proteintech, Rosemont, IL, USA) overnight at 4 ${}^{\circ }$C. Membranes were washed with 1% TBST (Servicebio, Wuhan, China) three times for 5 min each and incubated with HRP-conjugated affinipure goat anti-mouse or rabbit IgG (1:5000; Proteintech, Rosemont, IL, USA) for 1 h at room temperature. Blots were detected with enhanced chemiluminescence reagent (Analysis Quiz, Beijing, China) and the automatic chemiluminescence image system (Bio-Rad, Hercules, CA, USA). The density of the target protein and $\beta$-actin was measured using Image J software.

Mice (n = 8–11 per group) were anesthetized with 7 mL/kg 1% pentobarbital sodium (Sigma, St. Louis, MO, USA) and sacrificed 24 h after LPS injection. The brains were collected and deep-frozen in liquid nitrogen and stored at –80 ${}^{\circ }$C until subsequent ELISA. Tissues were weighed and homogenized in ice-cold normal saline, and amounts of IL-1$\beta$ in the mouse brain were determined with ELISA Kits (Raybiotech, Norcross, GA, USA) according to the manufacturer’s instructions. The protein concentrations were measured using a BCA protein assay (KeyGen Biotech, Nanjing, China), and their ratio was used as the relative value of IL-1$\beta$.

For statistical analysis, all data are presented using GraphPad Prism 6.01 (GraphPad Software Inc., San Diego, CA, USA) for statistical analysis. One-way analysis of variance (ANOVA) followed by an LSD test or Tamhane’s T2 test was performed. And if the data were not normal, Kruskal-Wallis of the non-parametric test was performed; p values of p 0.05 were considered significant. All data are shown as mean $\pm$ SD. Statistical analyses were performed using SAS 9.4 software (SAS Inc., Raleigh, NC, USA) and SPSS Statistics 25.0 (IBM, Armonk, NY, USA).

It has been reported that systemic inflammation induced by LPS can lead to behavioral disorders, including sensorimotor deficits and cognitive impairment. Thus, we firstly investigated the effects of Rb1 on the LPS-induced behavior changes by using the open-field test, which is regarded as a comprehensive quantitative assessment of voluntary activities and exploration behaviors [19]. Compared to control mice, reduced voluntary locomotor activity as indicated by slow walking and decreased activity was observed in mice treated with LPS, as shown in Fig. 2. Rb1 treatment improved the abnormal behavior caused by LPS, manifested as prolonged movement distance and increased movement speed (Fig. 2B–F), although the dose–effect relationship is not obvious. The results conclusively indicate that Rb1 relieves the behavior changes caused by LPS and improves locomotive activity.

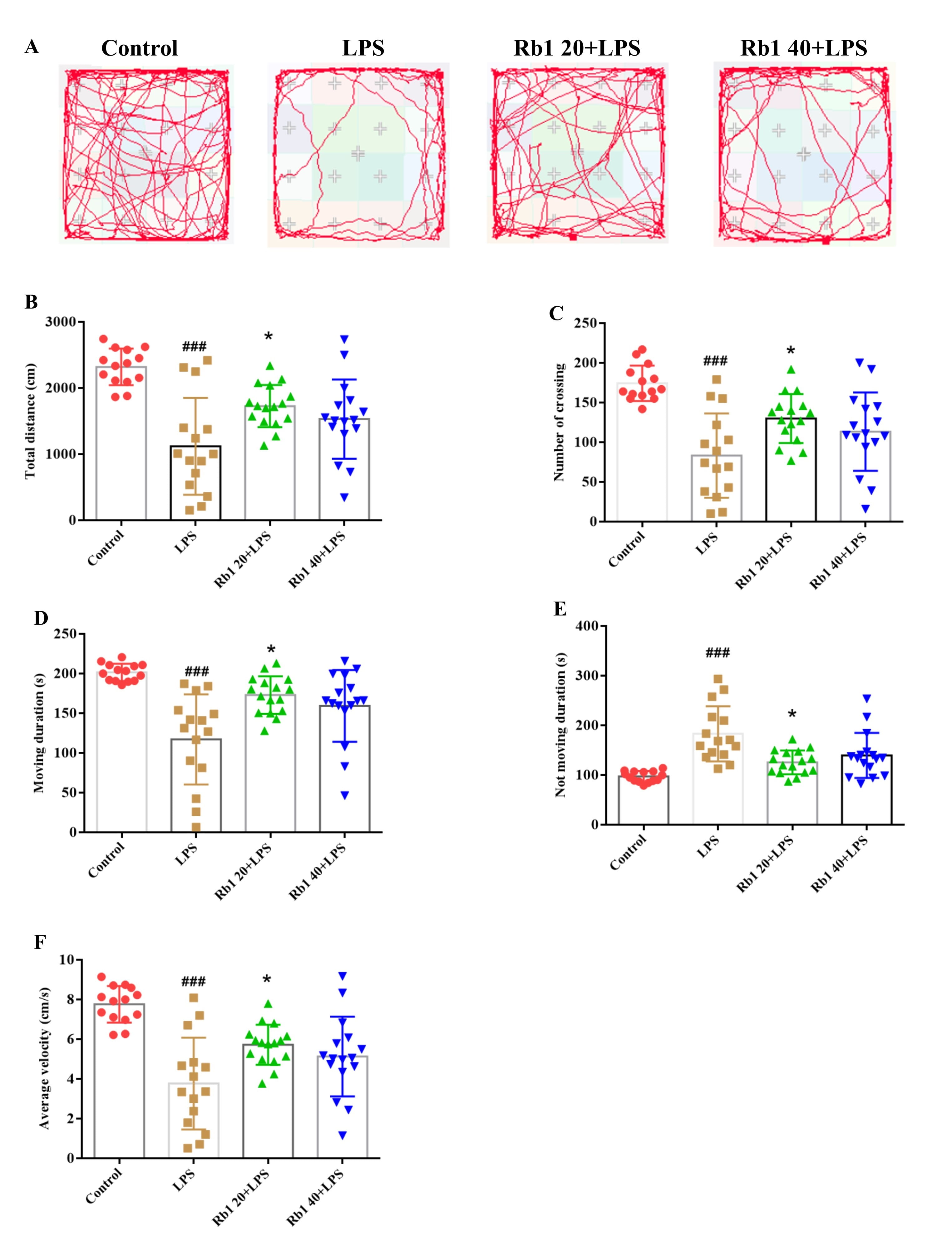

Fig. 2.

Rb1 improved the locomotive activities in LPS-treated mice. The locomotive activity was monitored using the open-field test between 20 h and 24 h after the LPS injection. The track maps of different groups (A), and quantitative analysis of total distance, crossing lines, moving and stand still duration, average velocity during 5 min (B–F) are listed. Data are represented as mean $\pm$ SD (n = 20). ###p 0.001 versus the control group; *p 0.05 versus the LPS group.

It has been reported that the beam walking assay is a more sensitive tool for monitoring sensorimotor function in rodents than locomotor studies [16]. To further examine the effect of Rb1 on motor impairment in LPS mice, we investigated motor coordination using the beam walking test with some modification [16, 18, 20]. The crossing performance is scored, and the time crossing the beam is recorded. A higher score indicates a better crossing performance. After two days of training, most mice could not cross the beam within a few seconds. Mice with poor training performance were excluded from the cohort. On the third day, the beam walking performance was tested. There were no foot slips or falls observed in control mice (Fig. 3A). However, as shown in Fig. 3, LPS mice were becoming slow when crossing the beam, and a significant number of foot slips or falls were observed in LPS-treated mice (Fig. 3B,D). Some of the LPS-treated mice were could not to cross the beam, and some could not even place their limbs on the beam (Fig. 3C). Compared to LPS mice, the mice in the 20 mg/kg and 40 mg/kg groups had a much better performance crossing the beam, with fewer foot slips (Fig. 3E,F). No falls were observed in both the Rb1 20 mg/kg and 40 mg/kg groups. The results suggest that Rb1 improved the motor coordination of LPS treated mice.

Fig. 3.

Rb1 improved LPS-induced motor coordination deficits. The beam walking assay was used to determine motor coordination between 20 h and 24 h after LPS injection. The images illustrate the performance for the beam walking test, including traversing the beam normally (A), or hindfoot slips (B) with difficulties to place the hindfoot on the beam (C) or falls from the beam (D). The performance of the mice crossing the beam was as evaluated with scoring (E), and a higher score represents a better performance on the beam. The time crossing the beam to reach the goal box was also recorded (F). Data are represented as mean $\pm$ SD (n = 20). ###p 0.001 versus the control group; *p 0.05, **p 0.01, ***p 0.001 versus the LPS group.

The primary somatosensory cortex and hippocampus are important sections of the brain responsible for regulating voluntary and involuntary movement. They also facilitate the control of motor coordination [21]. To explore the underlying reason for the locomotor changes, we investigated the neuronal injury in the cortex and hippocampus by immunostaining neurons with NeuN, a neuronal nuclear marker [22], in S1Tr, S1BF, and S2 areas of the somatosensory cortex and CA1 in the hippocampus (Fig. 4A). As shown in Fig. 4, LPS treatment mildly reduced the NeuN in all the above regions compared to the control mice (Fig. 4B–D). Rb1 20 mg/kg and 40 mg/kg treatments significantly attenuated LPS-induced neuronal loss (Fig. 4B–D). However, Rb1 40 mg/kg did not show a greater effect than 20 mg/kg. The above immunostaining results indicate that Rb1 protects neurons from LPS-induced damage.

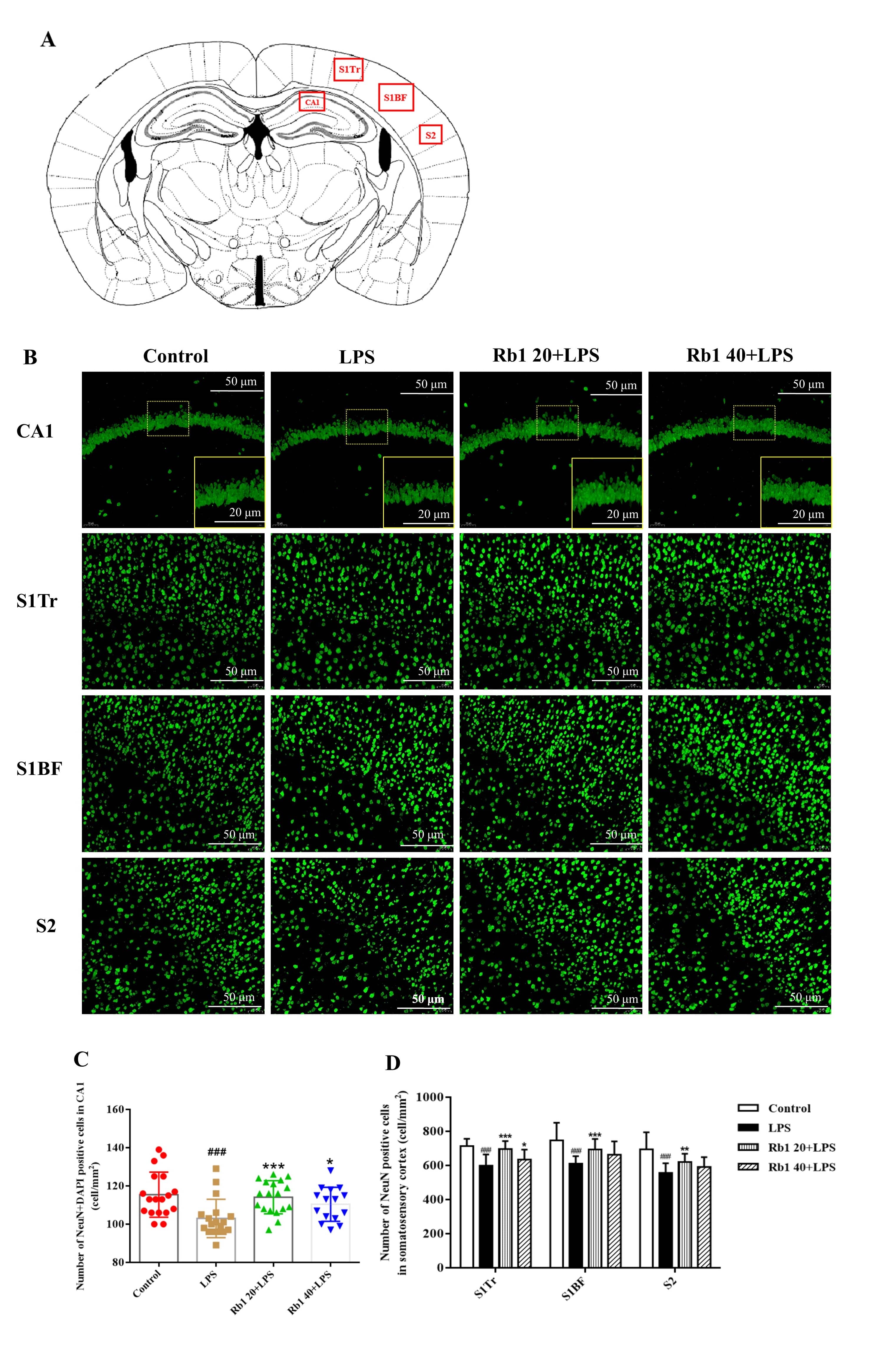

Fig. 4.

Rb1 attenuated neuron loss in the brain following LPS treatment. Immunostaining was performed 24 h after LPS i.p. injection. The NeuN positive cells in CA1, S1Tr, S1BF, and S2 were monitored (Red boxes) (A). The immunostaining of NeuN-labeled cells (Green) was presented in CA1, S1Tr, S1BF, and S2 areas (B). NeuN+DAPI or NeuN positive cells in the hippocampus (C) and somatosensory motor cortex (D) were counted. Data are represented as mean $\pm$ SD (n = 6). ###p 0.001 versus the control group; *p 0.05, **p 0.01, and ***p 0.001 versus the LPS group.

Excessively activated microglia are suggested to be directly or indirectly involved in neuroinflammation and consequent neuronal injury [11, 14]. To understand the neuroprotective effects of Rb1 following LPS insult, we investigated microglial activation as depicted by IBa-1-positive cells in CA1, S1Tr, S1BF and S2 areas. The production of IL-1$\beta$, one of the most important pro-inflammatory cytokines released by microglia [23], was also monitored. As shown in Fig. 5, LPS induced an obvious microglial activation with thicker protrusions and larger cell soma (Fig. 5A). The IL-1$\beta$ in the brain of LPS mice was significantly higher than that in control mice (Fig. 5C). Rb1 treatment significantly suppressed the microglial activation in CA1, S1Tr, S1BF, and S2 areas and inhibited the IL-1$\beta$ production induced with LPS (Fig. 5A–C). The results suggest that Rb1 effectively attenuated the LPS-induced microglial activation and IL-1$\beta$ production.

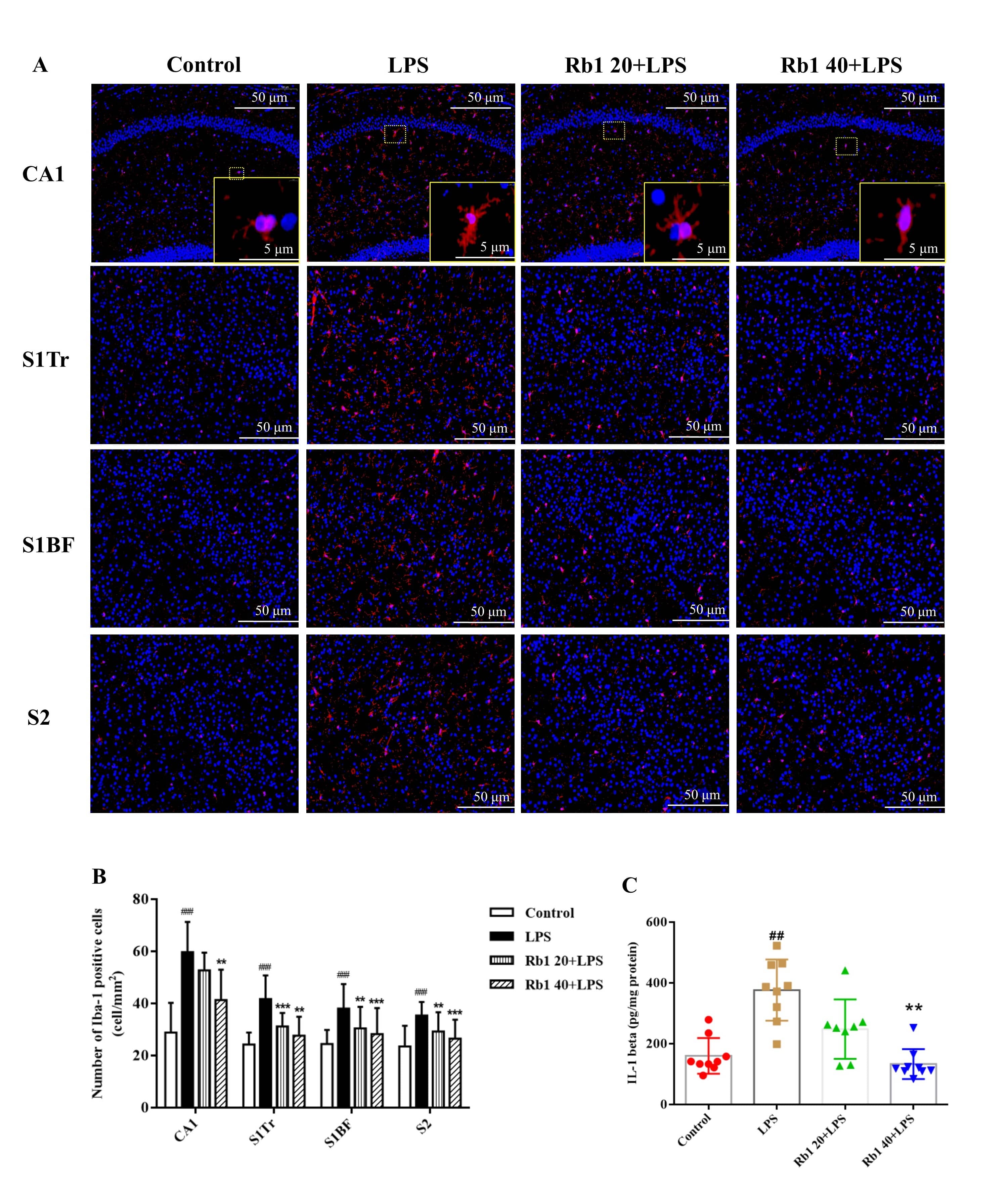

Fig. 5.

Rb1 treatment suppressed the LPS-induced microglial activation and inhibited the production of IL-1$\beta$ in the brain. IBa-1 immunostaining and the IL-1$\beta$ test were performed 24 h after LPS i.p. injection. The IBa-1 positive cells (Red) were shown in CA1, S1Tr, S1BF, and S2 area (A) . The nuclei were stained with DAPI (Blue). The IBA1 cells in CA1, S1Tr, S1BF, and S2 were counted (B). The IL-1$\beta$ production in the brain was analyzed with ELISA (C). Data are represented as mean $\pm$ SD (n = 6 or 9). ###p 0.001 versus the control group; **p 0.01 and ***p 0.001 versus the LPS group.

Astrocytes and microglia are two interrelated and interacting cells involved in maintaining brain function. Systemic exposure to endotoxin has been shown to activate microglia and astrocytes [24]. LPS-induced astrocytes activated to A1 subtypes are suggested to be harmful to neurons in the brain [25]. Although the mechanisms by which A1 subtypes act as “bad players” remain unknown, it is helpful to monitor the GLT-1 and GS after LPS insult because more than 90% of the glutamate released into the synaptic cleft is not taken by GLT-1 on the astrocyte membrane, and most of the glutamate entering into astrocytes is converted into glutamine by GS to avoid excitotoxicity [26]. As shown in Fig. 6, systemically LPS administration led to reactive astrogliosis in hippocampus CA1 characterized by hypertrophy and an increasing number of GFAP-labeled cells, along with considerable expression of GLT-1 transporter (Fig. 6A,B,E). However, the expression of GS was reduced after LPS treatment (Fig. 6C,D,F). Rb1 20 mg/kg and 40 mg/kg treatments further enhanced the production GLT-1 in astrocytes after LPS insult and significantly attenuated the GS reduction induced by LPS, which was confirmed by both immunostaining and Western Blot analysis. The results reveal that Rb1 can further increase the expression of GLT-1 and attenuate the GS reduction induced by LPS insult.

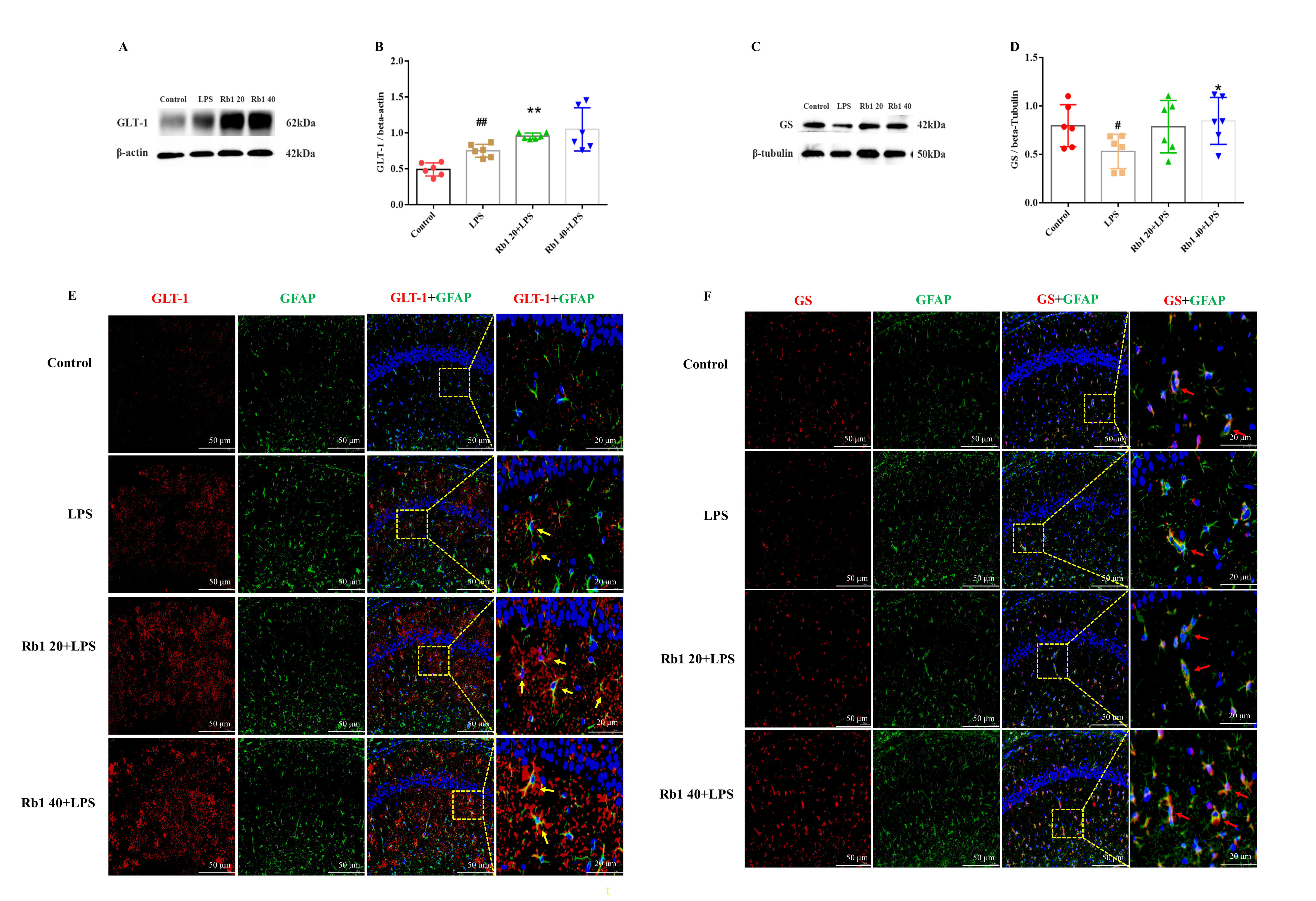

Fig. 6.

Rb1 upregulated the expression of GLT-1 and GS in LPS mice. Western Blot and immunostaining were performed 24 h after LPS i.p. injection. Expressions of GLT-1 and GS in the brain were evaluated by Western blot analysis (A,C). The quantification of GLT-1 and GS were normalized by the expression of $\beta$-actin (B,D). Dual immunofluorescence staining with GFAP and GLT-1 or GS in the CA1 region of the hippocampus (E,F). GLT-1 and GS (Red), GFAP (Green). GLT-1 was expressed in astrocytes (Yellow arrows), GS was expressed in astrocytes (Red arrows). Data are represented as mean $\pm$ SD (n = 3~6). #p 0.05, ##p 0.05 versus the control group; *p 0.05, **p 0.01 versus the LPS group.
