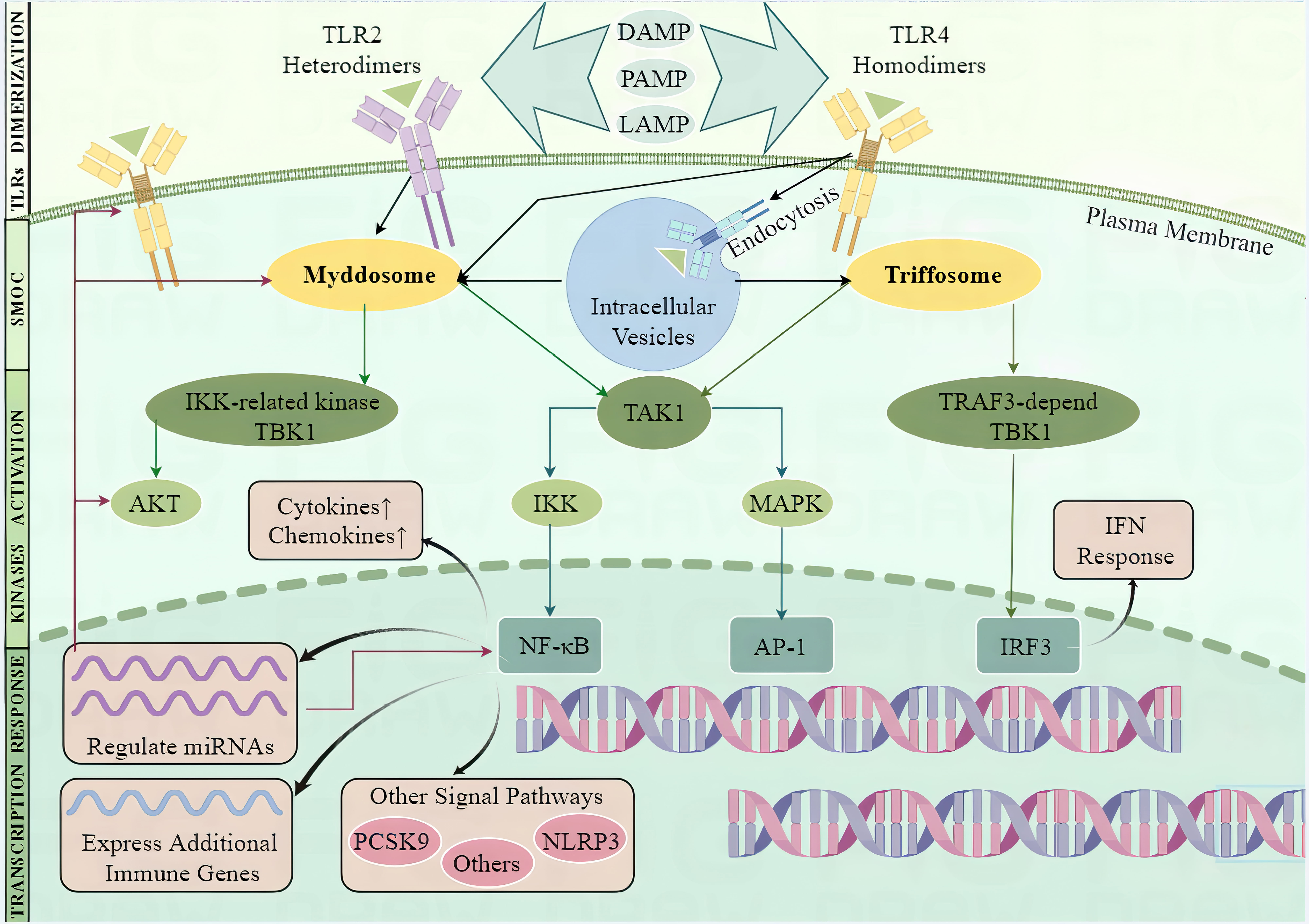

Fig. 1.TLR2 and TLR4 signaling in endothelial cells and regulation of
miRNAs. The transmission of toll-like receptor (TLR) signaling follows three
steps. First, agonistic ligands mediate the formation of TLR2 heterodimers and
TLR4 homodimers in the plasma membrane. These include pathogen-associated
molecular patterns (PAMPs), damage-associated molecular patterns (DAMPs) and
lifestyle-associated molecular patterns (LAMPs). The TLR4 homodimers subsequently
translocate from the cell surface to intracellular vesicles via endocytosis.
Second, TLR2 heterodimers and TLR4 homodimers mediate assembly of the
supramolecular organizing center (SMOC), including the Myddosome which governs
MyD88-dependent signaling, and the Triffosome which governs TRIF-dependent
signaling. TLR2 and TLR4 mediate assembly of the Myddosome, while TLR4 also
mediates assembly of the Triffosome (black arrows). Third, SMOCs mediate the
activation of kinases, which then activate the transcriptional response. The
Myddosome activates the inhibitor of kappa B kinase (IKK)-related kinase Tumor necrosis factor receptor-associated factor (TRAF)
family member associated Nuclear
factor-B (NF-B) activator (TANK)-binding kinase 1 (TBK1),
which in turn activates the kinase AKT (also known as PKB; protein kinase B). The
kinase transforming growth factor b (TGF-b)-activated kinase 1 (TAK1) stimulates
IKK-mediated activation of NF-B and mitogen-activated protein kinase
(MAPK)-mediated activation of activator protein-1 (AP-1). NF-B not only stimulates the expression of additional
immune genes, regulates downstream signal pathways (e.g., nod-like receptor
protein 3 (NLRP3), proprotein convertase subtilisin/Kexin type 9 (PCSK9), induces
cytokines and chemokines expression), but regulates microRNA (miRNA) expression.
The Triffosome also activates TAK1 and mediates similar downstream responses, as
well as activating TRAF3-dependent TBK1 which then activates interferon regulatory factor 4 (IRF4) leading to the
interferon (IFN) response (green arrows). TLR signal transduction may be regulated by miRNAs
at various levels (red arrows).
