Since the light is incident to the surface of noble metallic NPs, the conduction electrons exhibit specific collective oscillations leading to the emergence of a strong optical absorption and/or scattering peak as shown in Fig. 2A [68]. This unique phenomenon is termed LSPR entirely affected by the NPs’ size, shape, dielectric environment and other properties NM NPs, therefore, are frequently used as contrast agents for microscopic imaging or as targeted probes for detection and recognition of tumor cells dependent on the shifts of LSPR spectral peak when the diagnostic objects approach the surface of NPs [69, 70]. For example, screening blood samples for leukemia was proposed using nanohole-arrays on plastic (NAP) as a plasmonic sensor and human immunoglobulin kappa and lambda light chains in blood serum as a screening compound [71]. NAP was fabricated by the UV nanoimprinting on thin gold films to form the nanohole arrays. This typical SPR-based nanosensing platform has a capacity to accurately examine the overexpression of light chain antibodies in cancerous blood samples. Cytokines as one kind of immunomodulating protein biomarker, are secreted from immune cells and control cell growth, cell differentiation and immune response [72]. The classical enzyme-linked immunosorbent assay (ELISA) and fluorescent-based detection of cytokines have several disadvantages like time-consuming, complexity, and large sample consumption. A LSPR optofluidic platform device has been integrated with a polydimethylsiloxane (PDMS) supporting layer, a microfluidic layer which traps and incubates cells, and an LSPR sensing layer consisting of Au NPs connected with tumor necrosis factor (TNF)-$\alpha$ for cytokine detection [73]. This new-type optofluidic system was firstly applied in identifying THP-1 cells (human myeloid leukemia mononuclear cells) utilizing 100 times less sample volume and 3 times less in detection time than ELISA.

Fig. 2.

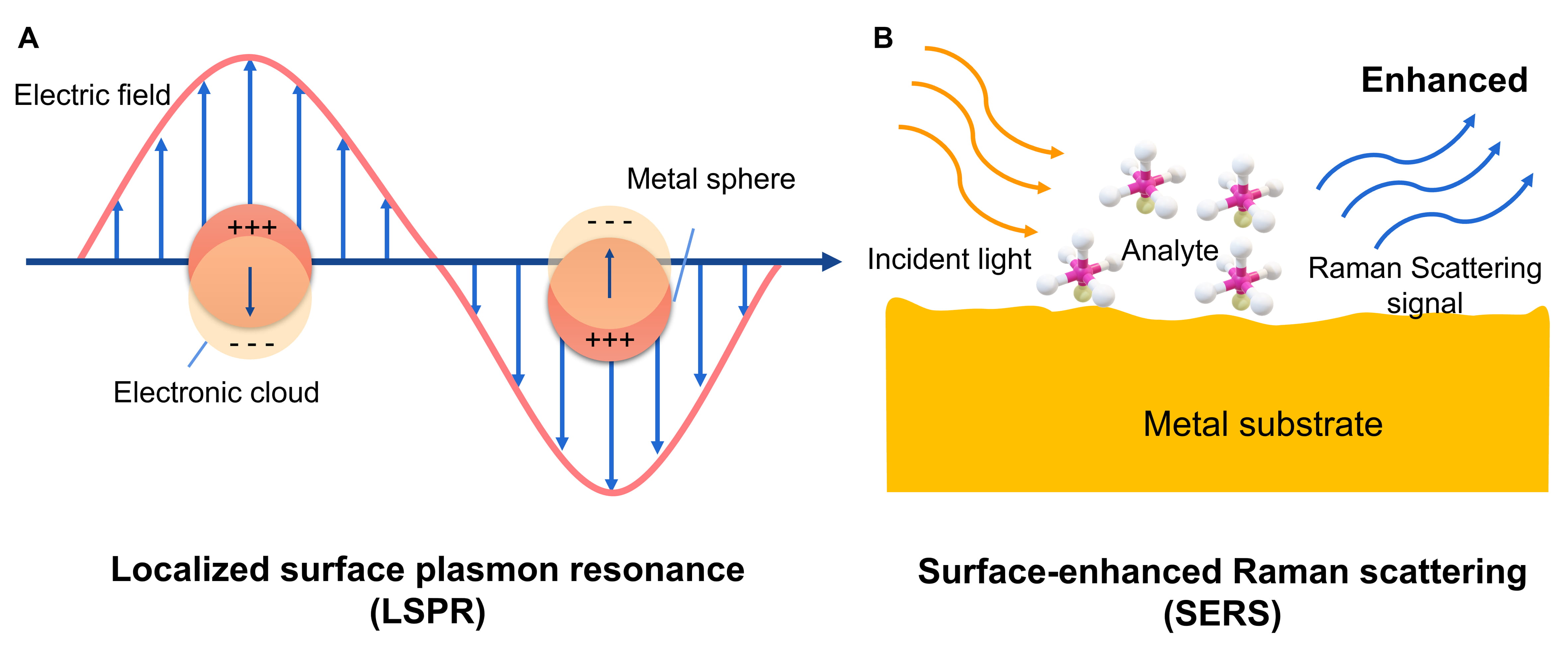

The schematic principle for localized surface plasmon resonance (LSPR), and surface-enhanced Raman scattering (SERS). (A) Since the light is incident to the surface of noble metallic NPs, the conduction electrons exhibit specific collective oscillations leading to the emergence of a strong optical absorption and/or scattering peak. (B) Raman scattering signal is remarkably enhanced when the molecules are located on the surface of metallic naoparticles. Reprinted major modification with permission from [70], Copyright 2011, American Chemical Society.

If molecules are located on the surface of metallic NPs, the Raman scattering signal is remarkably enhanced, which is defined as SERS (Fig. 2B) [70, 74, 75, 76, 77, 78]. SERS technology offers a new strategy for both biomolecule detection and intracellular imaging [61]. In addition to high sensitivity, SERS can precisely recognize molecular structure as well as avoid interference from cellular autofluorescence [79]. Lentini et al. [80] constructed Ag NPs assembled phage clone (Ag NPs–EIII1) network as a SERS probe to identify the human histiocytic lymphoma U937 cells in vitro. Once Ag NPs-EIII1 targeted to the U937 cells, a new Raman scattering peak and enhancement intensity appeared, due to the existence of oligosaccharide complexes by means of molecules involved in probe-target interaction. Boca’s group initially prepared hollow gold-silver nanoparticles (HNS) and then mixed them with Nile Blue (NB) Raman reporter, modified by PEG to conjugate with antiCD19 monoclonal antibodies [81]. Consequently, SERS active molecules, HNS-NB-PEG-antiCD19, were produced and used for evaluating the uptake and intracellular distribution inside both CD19-positive SKW6.4 cells (Epstein-Barr virus-transformed B lymphocytes, B-cell lymphoma) and CD19-negative OCI-AML3 cell line (AML). The results revealed that HNS-NB-PEG-antiCD19 could selectively targeted and imaged the CD19-positive lymphoma cells, showing the potential for a luciferous assay in the early and precise diagnosis of lymphoblastic cancers.

In summary, LSPR-/SERS-based diagnostic strategies provide sensitive identification of neoplastic indicator and noninvasive imaging of hematologic cells, designed to understand and improve the treatment of hematologic system diseases in advance.

Among various types of diagnostic methods, fluorescence-based techniques exhibit a highly sensitive, specific, and time-saving approach for the detection and imaging of various cancers. To achieve the fluorescence-based diagnosis involves combining the effective fluorescent agents such as organic dyes [82], fluorescent proteins [83], semiconductor quantum dots (QDots) [84], carbon nanotubes (CNTs) [85]. Novel NM NCs with discrete electronic state possess molecular-like behaviors and exhibit size-dependent fluorescence from visible to the near infrared (NIR) region [50]. In contrast to classical fluorophores, ultra-fine Au, Ag and Pt nanoclusters (NCs) have stable photobleaching, strong luminescence, and excellent biocompatibility, which has led to great progress in the application of biomolecular detection and cellular labeling for hematological malignancies. Tan’s group firstly reported the facile production of multidentate thioether-terminated poly (methacrylic acid) (PTMP-PMAA) stabilized NIR fluorescent Au NCs with 660 nm emission wavelength (Fig. 3A) [86]. These Au NCs were able to bio-label both adherent HeLa cells and suspended Jurkat cells. More interesting was the observation that hematopoietic cancer K562 cells had a distinct tendency for internalizing more Au NCs than normal cord blood mononuclear cells (CBMC), exhibiting a great potential application in diagnostic detection of hematologic malignancies due to their selective affinity to enter relative mature cells such as granulocytes and lymphocytes (Fig. 3B) [86]. Fluorescent glycine dimers capped Ag NPs with the sizes ranging from 9 to 32 nm have been produced (Fig. 3C) [87]. This blue fluorescent NPs-ligand system has a high quantum yield of (5.2 $\pm$ 0.1) % and was subsequently used to bio-image rat basophilic leukemia cells (Fig. 3D) [87]. As another common noble metal, Pt NMs are frequently used as catalysts in many chemical reactions based on their high surface activity in nano dimension [88]. However, the fluorescence of ultrafine Pt NCs was developed in the past decades and applied in the metal ion or antibiotic detection, and bio-imaging in vitro[89, 90, 91, 92, 93]. Chen et al. [94] developed bifunctional polyethylenimine (PEI)-encased Pt NCs (short for Pt NCs@PEI, as shown in Fig. 3E), and then co-cultured them with blood cancer K562 and BV173 leukaemia cell lines. This research demonstrated that Pt NCs smaller than 2 nm could selectively image K562 and BV173 cells with the internalized proportion at (97 $\pm$ 4)% and (95 $\pm$ 4)% respectively, compared to peripheral blood mononucleated cells (PBMCs) at (20 $\pm$ 8)% (Fig. 3F) [94]. These fluorescent Pt NCs have shown a great potential in the diagnosis of hematopoietic diseases such as leukemia, lymphoma, and myeloma, avoiding the inclusion of extra fluorescent biomarkers.

Fig. 3.

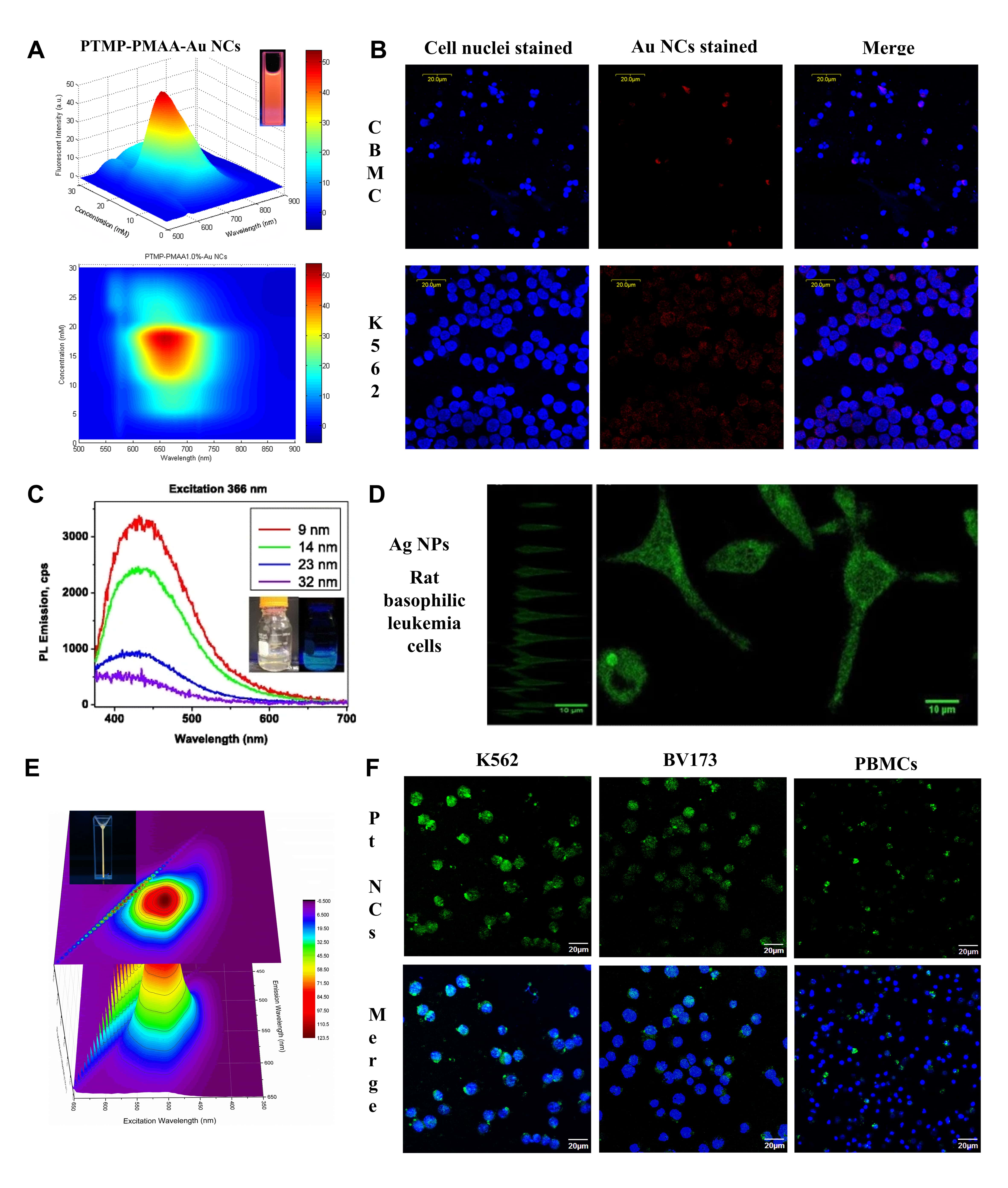

The fluorescence-based diagnosis of hematological malignancies using metal nanomaterials. (A) 3D excitation and emission spectrum of multidentate thioether-terminated poly (methacrylic acid) (PTMP-PMAA) stabilized near-infrared (NIR) fluorescent gold nanoclusters (Au NCs) and (B) confocal microscopic images of human umbilical cord blood mononuclear cells (CBMC) and hematopoietic cancer K562 cells cultured with Au NCs for 24 h. Cell nuclei were stained by Hochest 33258. Reprinted major modification with permission from [86], Copyright 2011, American Chemical Society. (C) Photoluminescence emission spectra of Ag NPs with different sizes excited by 366 nm UV light and (D) confocal microscopic graphs under cross-section (z-stacks) and top view of rat basophilic leukemia cells imaged by synthesized Ag NPs. Reprinted major modification with permission from [87], Copyright 2016, Springer. (E) 3D excitation and emission spectrum of polyethylenimine (PEI)-encased platinum nanoclusters (Pt NCs@PEI) and (F) confocal microscopic images of hematopoietic cancer K562 and BV173 cells as well as peripheral blood mononucleated cells (PBMCs) cultured with Pt NCs@PEI. Cell nuclei were stained by 6-diamidino-2-phenylindole (DAPI). Reprinted major modification with permission from [94], Copyright 2018, Elsevier.

As mentioned for chemotherapy, Pt(II)-based chemotherapeutics are traditional and preferred candidates for the clinical treatment of solid tumors [96]. After the approval of the Food and Drug Administration (FDA) in 1978, Pt chemotherapeutic drugs have evolved initially from cisplatin to carboplatin, lobaplatin and oxaliplatin [97, 98]. The problems of Pt(II)-based chemotherapeutics including poor pharmacology, systemic toxicities, rapid blood clearance, and side effect like nephrotoxicity, neurotoxicity, ototoxicity, and myelosuppression which strongly restrict their clinic efficiency and usable range, needs to be addressed [99]. Hence, major efforts have been made in exploring the new Pt-based drugs in order to eliminate toxic side effects and drug-resistance of tumors. Recently, the effects of small-sized Pt NPs or Pt NCs as anticancer nanomedicine to augment chemotherapeutic efficacy have been investigated [100, 101]. Besides the fluorescent imaging capacity, dual-functional Pt NCs mentioned above showed selective inhibition of hematopoietic K562 and BV173 cancer cells [94]. In contrast to hematopoietic normal cells, these Pt NCs induce a three times higher apoptotic rate in hematopoietic cancer cells. Additionally, immunoblotting was used to confirm the molecular mechanism of Pt NCs’- induced apoptosis and the results suggested that Pt NCs could induce pro-apoptotic protein expression (p53, PUMA, cleaved caspase) in hematopoietic cancer cells, leading to apoptosis in these cells. Some research also reported the apoptosis mechanism of Pt NCs-based chemotherapeutics, that is, high surface-active Pt NCs are eroded to an oxidation state caused by interaction with intracellular acidic organelles (endosomes, lysosomes, etc.) whereby Pt ions damage DNA, giving rise to a synergistic effect of both Pt NCs and Pt ions [52].

In addition to conventional Pt, Au and Ag NMs have also exhibited the induced apoptosis of hematological malignancies and the possibility for them to be developed as novel chemotherapeutics for the effective treatment of hematopoietic system disease, especially AML, lymphoma and multiple myeloma [102, 103, 104]. Kumari et al. [105] proposed a green nyctanthes arbortristis mediated synthetic method of Ag NPs with an average size of 22 nm. The different concentrations (5–50 $\mu$g/mL) of Ag NPs impacted on cell viability of THP-1 human leukemia cell lines with a half maximal inhibitory concentration (IC50) of 33.5 $\mu$g/mL. This cytotoxicity in vitro of Ag NPs for leukemia cells was contributed to cell ROS defense mechanisms resulting in cell death. Similarly, the Ag NPs produced in the Brassica rapa extract (NBRE) have the highest antioxidant and cytotoxic activity of 3.53 and 7.38 $\mu$g/mL for M-NFS-60 cells (Human Mouse Myelogenous Leukemia carcinoma) and HeLa cells, respectively [106]. Moreover, the solvent effect on Au NPs’ size was investigated and dimethyl formamide (DMF) and N-methyl-2-pyrrolidone (NMPL) mediated synthesized Au NPs possessed distinct average sizes of 10.2 and 40.4 nm, respectively [107]. The smaller Au NPs had a greater inhibitory effect on K562 cells (88% cell inhibition) due to their ideal size and easier permeability of cell membranes.

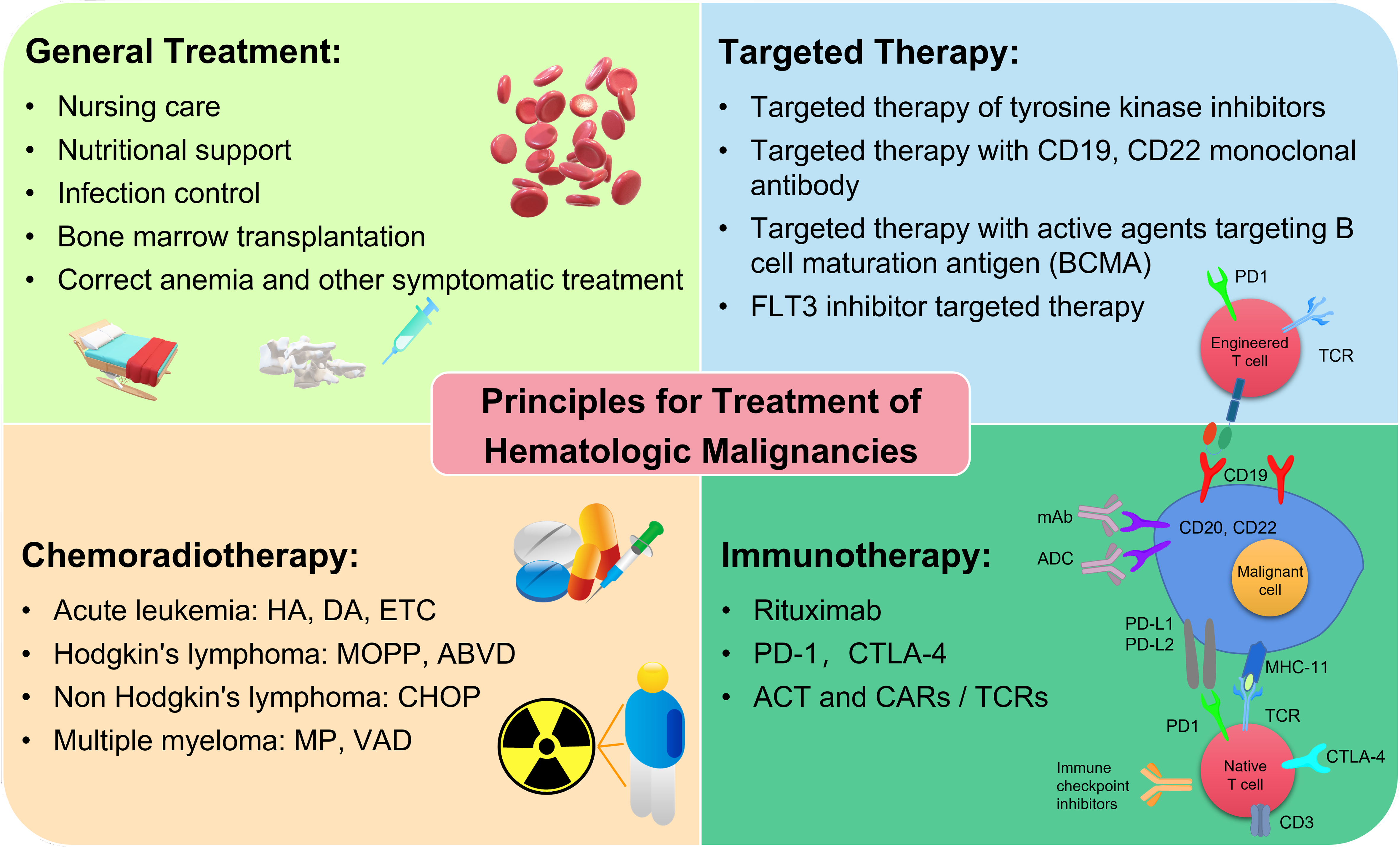

On account of the unsatisfactory bioavailability and non-specifical biodistribution of conventional chemotherapeutic drugs, certain molecular ligands like antibodies, proteins (including their fragments), nucleic acids (aptamers), and other receptor ligands (peptides, etc.) impose upon the chemotherapeutics the targeting and selective properties, that is targeted therapy (Fig. 4) [108]. Targeting agents facilitate the NM NMs to specifically reorganize the membrane receptors or antigens on target tumor cells and the type of selective targeting agents greatly determine the physicochemical properties of conjugates. Hence, NM NMs-ligand conjugates (combination with specific targeting agents) are a major way to limit the drug distribution in vivo and target onto the lesion site. Recently, the primary target site of hematologic malignancies is CD19 despite the increased use frequency of CD22 and active agents targeting B cell maturation antigen (BCMA) [109, 110, 111]. For example, Au nanourchins (GNUs) with core diameter at 101 $\pm$ 12 nm and branch length at 31.9 $\pm$ 12.9 nm, were initially modified by the Raman reporter molecule Nile Blue (NB) and stabilizer polyethylene glycol (PEG) and subsequently conjugated with antiCD19 IgA monoclonal antibodies in order to specifically target CD19 positive leukemic cells [112]. For the acquisition of a nondistinctive cell apoptosis effect, the dosage of antiCD19-PEG-NB-GNU treatment (0.17 ng/$\mu$L) was much less than that of antiCD19 alone (0.56 ng/$\mu$L). The possible cytotoxic effect was due to high oxidative stress and a blocking in the growth phases of the CCRF-SB cell cycle. Cancer stem cells (CSCs) rarely occur in multiple myeloma because of tumor multiresistance and recurrence [8]. Dou’s group studied the influence of anti-ABCG2 monoclonal antibody (McAb) conjugated with Ag NPs and vincristine (VCR) on myeloma CSCs [113]. They found that CD44+CD24- cells separated from the murine myeloma cell line SP2/0 had the characteristics of myeloma CSCs and McAb-Ag NPs-VCR showed close to 100% cell apoptosis, displaying an effective method to eradicate seeds of hematologic malignancies through specifically targeted therapy. FLT3 is another attractive targeting agent, given its overexpression on most leukemia cells as well as the high rate of FLT3 mutations in human leukemia [38]. Astilean group reported the FLT3 inhibitor-Au NPs conjugates were fabricated to targeted delivery of anti-drugs (midostaurin, sorafenib, quizartinib, and lestaurtinib) which have a superior therapeutic effect for AML comparison with the bare drugs [114].

Fig. 4.

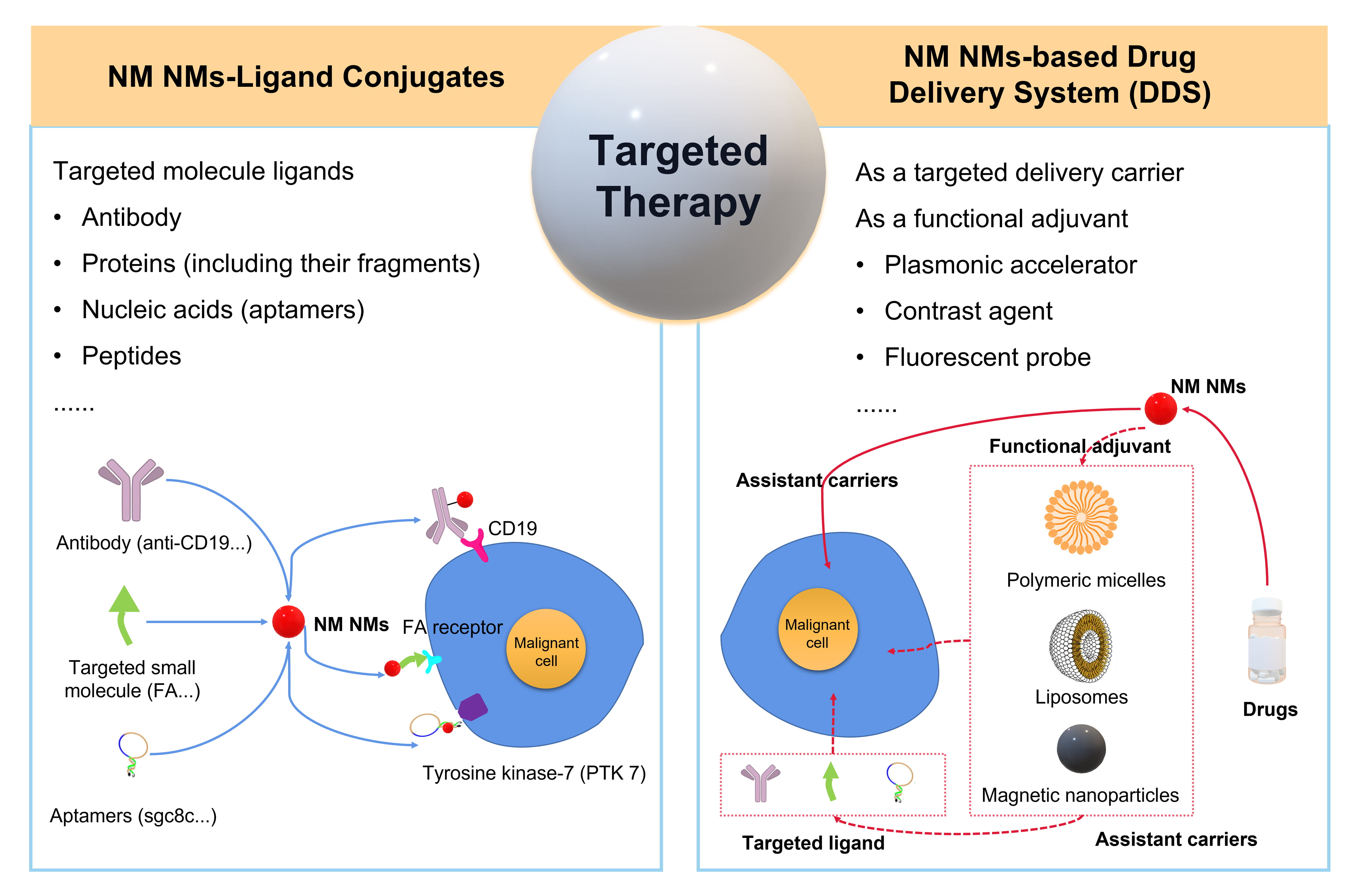

The schematic targeted therapy of hematologic malignancies using NM NMs to construct the NM NMs-ligand conjugates or NM NMs-based drug delivery system (DDS).

Generally, nanomedicines have a tendency to extravasate into solid tumor tissue via permeability and retention (EPR) effects, whereas, vascular phase and diffuse localization of hematologic malignancies make the EPR effect less efficient [115]. NM NMs with outstanding chemicophysical and biological properties can be used as the targeted delivery carriers or functional adjuvants in combination with other carriers like liposomes, biocompatible and degradable polymers, magnetic nanocarrier [40]. The establishment of NM NMs-based drug delivery systems (DDS) for the development of targeted therapy has become an innovative breakthrough in the traditional treatment of refractory cancers especially hematopoietic diseases (Fig. 4). Patra et al. [116] proposed a potential Au-Vel-FA DDS including velcade (Vel) as an anti-cancer drug, folic acid (FA) as a targeting agent and Au NP as a delivery vehicle. Au-Vel-FA was capable of inducing apoptosis against both multiple myeloma U266 and RPMI cells on the premise of maintaining the functional activity of velcade. This form of DDS could be deemed as an equally effective alternative to classical chemotherapeutics and capable of being extended to other malignancies. A triple DDS called DNA-nanosilver-berberine was constructed employing DNA as a carrier Ag NPs as a plasmonic accelerator, and berberine as an effective drug for leukemic cancer [117]. DNA-nanosilver-berberine exerted high toxicity against CCRF-CEM cells inducing apoptosis of cells through increased ROS production and executive caspase 3/7 activation. Ag NPs accelerated the electronic transitions of Berberine and adsorbed the high energy emission absorbent in the integration with penetrative light radiation for deeper localized tumors [118].

In a word, either NM NMs-ligand conjugates or NM NMs-based DDS for targeted therapy not only protect drugs against the external environment during the transportation towards the target site, but also increase the blood circulation time and surface multi-functionality. Most important is that the long circulation properties will increase the possibility of medicable drugs encountering malignant cells in peripheral blood which is one of the main target sites in hematologic malignancies [115]. High efficiency, specific selectivity and unique applicability of targeted therapy makes it advantageous for the treatment of hematologic malignancies, however, it is regrettable that targeted therapy has not shown a survival advantage in stage IV disease for many randomized trials, despite its significantly improving patient survival and quality of life [119].

As a form of photodynamic therapy (PDT), photothermal therapy (PTT) uses heat created by electromagnetic radiation to eliminate or ablate tumor cells [120, 121]. Light-responsive materials can be activated by light or near infrared (NIR) wavelength radiation, resulting in high affinity for cancer cells through hyperthermia [122]. PTT manifests a prominent role in the treatment of cancer based on its non-invasive, non-contact and low cytotoxic properties. Au NPs are preferred in the photo-based nanomedicine because of specific optical features like SPR [123, 124]. If Au NPs enter into tumors, they trend to aggregate at the local tumor sites, and absorb energy via a light (wavelength of 700–980 nm/1000–1400 nm) irradiation to generate heat which can transfer to tumors without damaging normal cells (Fig. 5A) [121, 125]. The first attempt for the photothermal therapy employing Au NPs in vitro was proposed by Lapotko et al. [126, 127]. They used laser activated nano-thermolysis for cell elimination technology (LANTCET) to target thermolysis of leukemia cells by means of producing microbubbles near the NPs under laser irradiation [126, 127]. Afterwards, Au nanorod (Au NRs) as one kind of NPs were conjugated with CD33 monoclonal antibodies (Au NRs-CD33) to achieve nano-thermolysis of human acute leukemia cells by a NIR pulsed-laser illumination [128]. The proportion of dead hematopoietic tumor cells went up 3–4 times after the PTT by Au NRs-CD33. Wang’s group creatively combined both PDT and PTT approaches by constructing an aptamer switch probe (ASP) connected chlorin e6 (Ce6) photosensitizer onto the surface of Au NRs [129]. ASP was formed as the initial sgc8 leukemia aptamer (OFF state) and polyethylene glycol (PEG) linked sgc8 (ON state) to turn on/off the fluorescence of the photosensitizer, leading to PDT controlled by singlet oxygen generation (SOG) as stated in Fig. 5B. Au NRs with a length below 100 nm (Fig. 5C) play a role as a PTT agent by their plasmon resonance absorption (LPRA) in the NIR region. Positive CCRF-CEM (acute lymphoblastic leukemia T-cells) and negative control Ramos cells (acute lymphoblastic leukemia B-cells) were selected to examine the efficiency of PDT/PTT and the result revealed that this multimodal therapy could efficiently kill the CCRF-CEM (cell viability = 39%) after 812 nm NIR laser irradiation for 10 min compared to nontarget Ramos cells (cell viability = 88%) as shown in Fig. 5D,E [129].

Fig. 5.

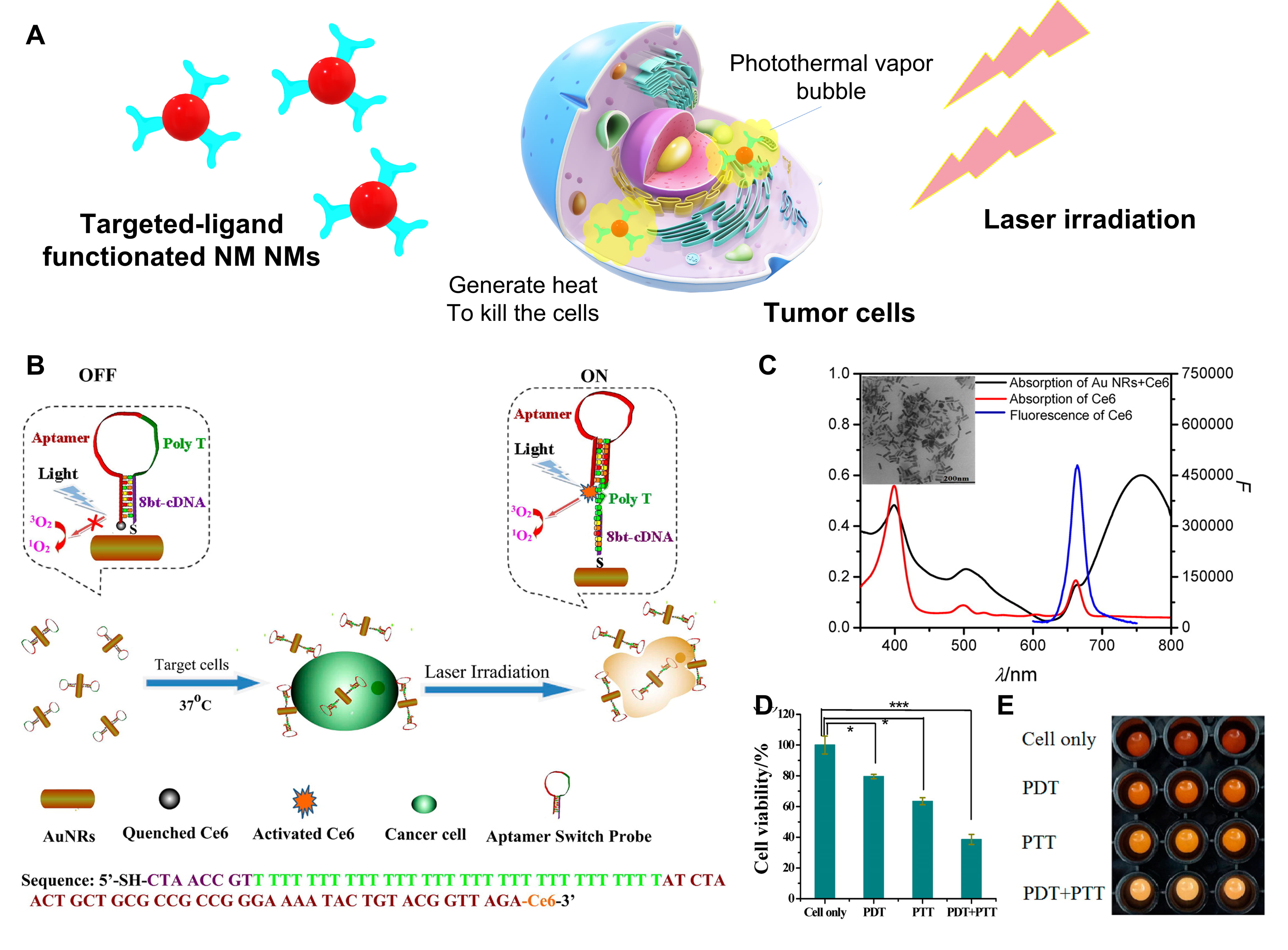

The photothermal therapy of hematological malignancies using metal nanomaterials. (A) Schematic representation of NM NMs-based photothermal therapy for tumors. (B) Scheme of the construction of an aptamer switch probe (ASP) and photosensitizer Ce6 modified the gold nanorods (Au NRs) to form the ASP-photosensitizer-Au NRs complex for photothermal therapy and photodynamic therapy. (C) Absorption spectra of Au NRs-Ce6 complex and free Ce6, emission spectrum of free Ce6. Inset picture is the transmission electron microscope (TEM) image of Au NRs. (D) Cell viability data and imaging (E) of CCRF-CEM cells incubated with ASP-photosensitizer–Au NRs without light irradiation (cells only), under white light irradiation (PDT), under 812 nm laser irradiation (PTT), and PDT + PTT, respectively. Cells, 200 k/sample; probes, 0.2 nM. p values were calculated by Student’s t-test: *p 0.05, **p 0.001, ***p 0.0001, n = 3. Reprinted major modification with permission from [129], Copyright 2011, American Chemical Society.

Although NM NMs have remarkable success in PTT for various cancers, the limitations such as inapplicability to metastasing tumors and irreversible tumor growth caused by hyperthermia need specific attention in the future.
