Scientific and social science research results are reported mainly in research papers published as journal articles and conference papers. There is an emerging research and development (R&D) effort to represent scientific research results and processes in ontologies and knowledge graphs that are machine-processable (Gutierrez and Sequeda, 2020; Ehrlinger and Wöß, 2016)—to support semantic information retrieval, generation of literature overviews, and updating of systematic reviews (Brack et al, 2020; Slaughter et al, 2015). This study contributes to extending this effort to social science research. Zou (2020) provided a broad survey of the potential applications of knowledge graphs in general.

A knowledge graph represents information or knowledge as a graph (i.e., network) structure of nodes and directed edges (links) with the nodes representing classes and entities (i.e., class instances) and the edges representing relationship types. The nodes or edges may be associated with properties or attributes (referred to as DatatypeProperty in the Web Ontology Language (OWL) 2) (World Wide Web Consortium, 2012). Knowledge graph is often considered to be synonymous with ontology in the literature (Bergman, 2019; Hogan et al, 2021; Ehrlinger and Wöß, 2016), and often represented using the Resource Description Framework (RDF) (World Wide Web Consortium, 2014) and OWL2 formalisms. However, knowledge graphs are increasingly being stored in graph database management systems using the built-in database schema of the systems for ease of retrieval and processing. Khoo et al (2024) proposed that the term ontology be reserved for formal representations (e.g., using RDF/OWL2) that support inferencing by computer programs and artificial intelligence (AI) agents, and knowledge graph be used for representations oriented towards supporting human information seeking and use.

The question we address in this study is what should be included in a knowledge graph representing the research results of a social science study, as reported in a research paper. Previous research in scientific knowledge graph construction has focused on extracting concepts and relations from the research abstracts (e.g., Rossanez et al, 2020; Dessì et al, 2021) as research abstracts are readily available on the Web and are short and concise. However, abstracts leave out many details of the research results as well as the supporting arguments and evidence. This is especially so for social science research papers, where the main research result may be modified by moderator variables, or the effect may vary for different subclasses of the main concept. Norouzi et al (2025, p. 140) pointed out that social science research papers use more “nuanced and ambiguous language when discussing causality, [with] the tendency to employ hedging or tentative statements about causal relationships, and the statement of causal claims as implicit rather than explicit”. They found sentences in social science papers tend to be longer and have more complex syntactic structure. They concluded that it was important to analyze causal statements across the fulltext of a paper from introduction to conclusion. However, knowledge graph construction based on the fulltext of research papers raises the question of what to select from the text to represent in the knowledge graph. One approach is to identify all the research result statements in the paper, and then the main supporting arguments and evidence for the research result claims. In addition, the knowledge graph can trace how the research claims are incrementally constructed in the “argument flow” of the research paper—from the introductory general statement, assertion of topic centrality, literature review summary, research gap identification, research objective statement, to the research result claim and contribution statements.

In this study, we manually identified the summary research result statements from the Discussion, Conclusion or Research Results section of sample sociology research papers. However, a summary research result statement taken out of context does not give a complete “picture” or understanding of the knowledge constructed in the paper. Other statements in the paper are needed to “flesh out” the summary result and indicate how the knowledge is constructed.

It is well-known that different statements in a research paper have different rhetorical and argumentative functions. Researchers in applied linguistics (especially genre studies) have analyzed the rhetorical structure of research papers following Swales’ (1990) Create A Research Space (CARS) framework. They have identified rhetorical functions such as topic centrality, topic generalization, research gap, research objective, research contribution, etc., (e.g., Kanoksilapatham, 2005; Kathpalia and Khoo, 2020). Cheng and Khoo (2022) adopted these terms and re-framed them as types of argumentative functions. Topic generalization (or general statement) and literature review statements indicate what is general knowledge, established knowledge, or pre-conceived assumptions—to be contrasted with the research result. Topic centrality and research gap statements indicate which part of the research result is of particular interest. The research objective statement often parallels the research result in the overall information structure, but the research result may indicate unexpected results, and often provide more specific information and more details. We propose that a knowledge graph representing the research results in a social science research paper needs to include information extracted from multiple statements in the paper—to provide a comprehensive view of the constructed knowledge. These statements taken in sequence represent the argument flow of the paper, showing how knowledge is constructed.

To sum up, this study sought to find out:

• What kinds of cause-effect information (i.e., which roles in the causal information structure) are often found in statements representing different argument/rhetorical functions (e.g., research gap and research objective), and what kinds of changes in the causal information structure occur from one cause-effect statement to the next?

The focus of our analysis was on sociology research that investigated cause-effect relationships—to construct causal knowledge. We analyzed 30 sociology research papers that investigated cause-effect relationships, examining the causal information structure of the summary research result statements (usually found at the beginning of the Conclusion or Discussion section, or the end of the Research Results section of a paper). We then analyzed what additional information is provided by selected statements in the Introduction and Conclusion sections of the paper: general statement, topic centrality, literature review summary, research gap, research objective, research method summary, research result summary and research contribution statements. We implemented a prototype graph visualization application to help users to examine the causal structure of the research result statement, and how the causal structure is incrementally constructed when the statements are viewed in sequence. Though the scope of the analysis is sociology research papers, the results are expected to apply more generally to social science research papers.

The literature on scientific knowledge graphs (and scholarly knowledge graphs for social science research) have focused on four issues: the knowledge graph schema design (i.e., ontology design) including the classes, relationship types and class/relation attributes used; automatic construction of the knowledge graph by performing entity and relation extraction on the scientific text; knowledge graph completion methods especially for predicting relations between existing entities; and graph embedding methods to represent relations and other graph structures as vectors for ease of retrieval, comparison and other applications. Most papers addressed two or more of these issues as they are interrelated. This literature review focuses on knowledge graph schema design for representing cause-effect statements in research papers together with their supporting arguments and evidence. This can be referred to as causal argument knowledge graphs. Previous research (e.g., Luan et al, 2018) in scientific knowledge graph construction has focused on research abstracts as these are easier to obtain and process, but some studies (Binder et al, 2022; Jain et al, 2020) have examined the issues of representing the argument structure of the whole research paper, which is the end goal of this study..

Different studies have represented different degrees of detail of the cause-effect information. Some studies simply identified sentences that contained cause-effect information (e.g., Norouzi et al, 2025) or extracted just the text spans representing the cause and the effect. Such papers usually focused on the automatic method of entity and relation extraction from text. A few studies have represented more attributes of the cause-effect relation such as the polarity of the effect (i.e., whether it increases or decreases the effect), the effect size (i.e., the magnitude of the effect), and the “epistemic” or belief status of the relation (e.g., whether the relation is hypothesized or observed). Some studies have represented factors or variables that represent moderator variables or conditions for the cause-effect relation to hold. Jiang et al (2019) urged for the representation of the Condition (a kind of qualifier) to indicate under what condition the research claim holds. Such information is more difficult to extract as they are often mentioned in a subordinate clause of a claim sentence.

Magnusson and Friedman (2021) adopted a fairly detailed cause-effect representation including the causal relation attributes of likelihood, strength and direction, relation qualifiers (i.e., the conditions under which the causal relation applies), supporting evidence (e.g., a study, theory or method), and the epistemic status of the causal relation (i.e., whether hypothesized, assumed or observed). In addition to representing cause-effect relations, they identified comparative, predictive, statistical and association relations in the scientific claim sentences. Their cause-effect schema design is quite similar to ours. After manually annotating 901 sentences, they used them to train a transformer model to extract entities and relations from a test sample of 100 sentences. While they adopted a fairly detailed cause-effect representation and used a state-of-the-art information extraction method based on a transformer model, their experiments made use of a curated dataset of sentences. Applying the knowledge graph schema and construction method to the fulltext of research papers will raise additional issues.

Some studies (e.g., Clark et al, 2014; Wang et al, 2020) adopted different perspectives of scientific research with corresponding implications for their knowledge graph schema design and semantics. Vogt et al (2020) focused on the contributions of the research, though this necessarily included the research results. They proposed a representation framework called Research Contribution Model that included the classes objective, method, activity, agent, material, and result from which the contribution is derived. They illustrated the knowledge graph design and construction based on abstracts from the domains of medicine, computer science and agriculture. The focus was on the overall argument structure of the research study rather than on a detailed conceptual representation of the research results or contribution. Though they illustrated a detailed representation of quantitative research results, they did not show how the conceptual structure of causal research results may be represented.

Chen et al (2023) viewed scientific research through the lens of problem-solving. They constructed problem-solving knowledge graphs that represented four types of relationships: problem-solving, problem hierarchy, solution hierarchy and association relation. This representation is more coarse-grained than our representation as they did not represent the conceptual structure of the problem-solving statements.

Though the majority of studies have focused on extracting cause-effect relations from research abstracts, a few studies have sought to identify cause-effect relations from the fulltext of the research paper. Inevitably, this raises the question of which parts of the paper to focus on, as well as how the discourse structure and argument structure are represented in the knowledge graph. Our main goal is to construct causal argument knowledge graphs focusing on how the research results (or scientific claims) are supported with other relationships, with evidence as well as with arguments. Another issue is how to represent the way causal claims evolve or are gradually constructed from the beginning of the paper to the end.

De Waard et al (2009) sought to construct an argumentation graph for scientific papers representing the relationships between hypotheses, claims and research evidence, including the epistemic status of the statements (i.e., known fact, experiment result or hypothesis) and highlighting the rhetorical and argument flow. They referred to this as a Hypotheses, Evidence and Relationships (HypER) approach. They pointed out that this “shift to author intent means shifting our conceptualization of the text towards discourse: that is, a move from viewing the text as a collection of verbs and nouns, to a view of the contextualized pragmatic language used for science” (de Waard et al, 2009, p. 2).

Pertsas and Constantopoulos (2017) proposed a Scholarly Ontology that modeled research activities as a kind of business process. The ontology focuses on events and activities that scholars engage in, and supports three perspectives: agent and intentionality, procedure and intellectual framework, and the resources used and produced. The ontology is broad enough in scope to import more specific ontologies covering specific aspects of research.

Recently, Song et al (2022) constructed an argumentation graph to link relations and supporting arguments within a paper (intra-article relations) and across papers (inter-article relations). Their case study involved 12 papers on the topic of Technology Acceptance Model (TAM). They sought to represent the evolution of knowledge within and across papers. They used 12 intra-article argumentation relationships from their Scientific Paper Argument Ontology (Zhou et al, 2019), and 11 inter-article argumentation relations some of which were imported from the Citation Typing Ontology (Shotton, 2010). Their intra-article argumentation classes and relations are a combination of argumentative functions, rhetorical functions and information types. They adopted categories from Toulmin’s argument framework (i.e., claim, evidence, warrant, backing, and rebuttal); the rhetorical categories of background, research problem, hypothesis, and conclusion; and information types comprising theoretical evidence (with subclasses work, principle, and formula) and the factual evidence (with subclasses experience, example, data, experiment, and fact). They did not model the detailed conceptual structure of the statements, such as the cause-effect relation claims.

In a parallel study, Wang et al (2022) used largely the same framework to analyze the argument structure of 20 papers each from the disciplines of library and information science (LIS) and biomedical research. They found that in the biomedical research papers, factual evidence in the form of data, method and experiment are more important than theoretical evidence in the form of formulae and cited works which were more prominent in LIS papers. The LIS papers tended to use theories and causal relationships to derive hypotheses for experimental confirmation, whereas biomedical papers focused on research problems and design of experiments to address them.

These frameworks for modeling the argument and rhetorical structure of research papers and the research activities described in them are well-founded. However, there have been no user studies to confirm their usefulness. We argue that these models of argument, rhetorical and research activity structure of research papers need to be extended to include the detailed conceptual (or information) structure of the statements that are usually represented as nodes in argument knowledge graphs. Our earlier study (Cheng and Khoo, 2021) showed how comparison structures link cause and effect subclasses, attributes and aspects to provide support for the cause-effect relationships. Representing the interaction between argument, rhetorical, activity and conceptual structures of research papers will make the scientific knowledge graph very complex, but it will allow intelligent applications to hypothesize relationships (i.e., knowledge graph completion), identify conflicting research claims and synthesize summaries for different purposes. Simplified sub-graphs highlighting these inferences and their text summaries can be presented in a user-friendly form. Our current study contributes to this goal by analyzing how the conceptual details of cause-effect relations change and evolve along the argument/rhetorical flow of general statement, topic centrality, literature review summary, research gap, research objective, research result and research contribution.

Our analysis was focused on seven types of statements, listed in Table 1. These categories have been used as rhetorical functions in discourse analysis frameworks following Swales’ (1990) CARS (Creating A Research Space) model. We adopted these terms and expanded them to construct our typology of information/argument element types—to carry out information/argument structure analyses (Cheng and Khoo, 2022). Several authors in the field of argumentation have pointed out the interrelatedness of argumentation and rhetoric. Hinton (2019, p. 96) noted “it is clear that any investigation into how language is used to put across arguments cannot remain aloof from considerations of rhetorical impact”.

We selected these seven argument/rhetorical elements because our earlier analysis of the Introduction sections of sociology research papers (Cheng and Khoo, 2022) found the following typical sequence of argument/rhetorical elements:

(General statement or Topic centrality) …

Literature review summary …

(Research issue or Research gap or Research question) … Research objective … Research contribution/recommendation

A corresponding analysis of the Abstracts of the same set of papers found a similar sequence of argument/rhetorical elements with the addition of the research result element. These argument/rhetorical elements can be considered to be linked together into a coherent argument chain, forming the main “spine” of the paper. As the Abstract and Introduction sections can be considered to present an overview of the arguments in a research paper, we propose that these statements can help to flesh out the causal knowledge summarized in the research result statement.

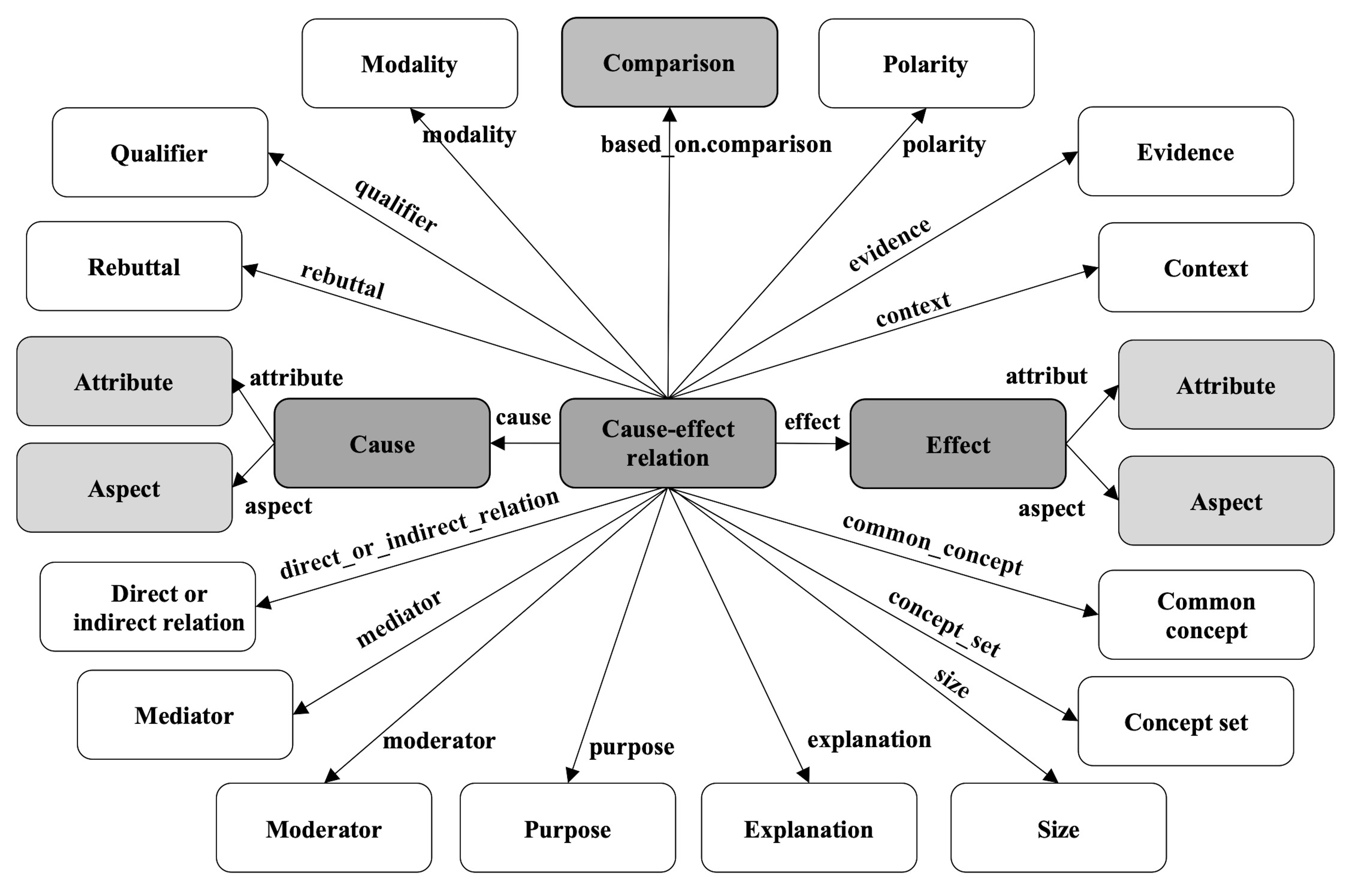

Our analysis and modeling of the causal information structure is based on our cause-effect information frame, developed in a previous study (Cheng and Khoo, 2022). This frame, outlined in Fig. 1, specifies all the possible types of causal roles that we can identify.

Fig. 1.

The Cause-Effect information frame.

In analyzing how causal knowledge is constructed when the paper steps through the seven types of argument/rhetorical elements (statements), we identified the following types of changes in the causal information structure of the statements:

• Type 1: Specifying the cause and/or effect concept, or narrowing or broadening them.

In addition, we examined whether the general statement and topic centrality statement focuses on the cause concept, effect concept, the causal relation between them, or some other role in the cause-effect frame. We also compared the research result statements with the associated research objective statements to find out whether the research objective statements contain any extra information not found in the research result statements.

A walk-through using statements taken from Ferraro et al (2016) (“Childhood disadvantage and health problems in middle and later life”) will illustrate our analysis. Consider the following two statements: literature review summary leading to a research gap:

Literature review

Text: Considerable research demonstrates important links between early experiences and adult health problems, …

Research gap

Text: … but questions remain as to how and under what conditions early experiences threaten health in later life …

The basic causal information structure underlying these two statements can be characterized as:

(childhood experiences) –[cause]-$>$ (adult situation).

Comparing the two statements, we observe the following changes to the causal structure:

• Specialization of the research relation: the literature review statement specifies a generic association relation (i.e., links), whereas the research gap statement specifies a subclass of the cause-effect relation threaten.

Now compare the research objective statement with the research result summary statement:

Research objective

Text: … we use longitudinal data from a national sample to examine links between multiple forms of early life disadvantage and multiple health problems in adulthood.

Research result

Text: The analysis reveals that all three domains of childhood disadvantage [low socioeconomic status (SES), family composition, and child abuse], are consequential to adult risks and resources. Frequent child abuse was related to W1 health problems [associated with lifetime smoking and heavy drinking], but this relationship was mediated by lifestyle risks and social psychological resources, namely lifetime smoking, family support, family strain, and personal control.

The research objective statement did not make changes to the causal structure except to promise to identify subclasses of the cause concept (i.e., types of childhood disadvantage) and the effect concept (i.e., types of adult health problems). The research result statement makes good on the promise: it identifies types of childhood disadvantage (i.e., low socioeconomic status, family composition, and child abuse) and types of adult health problems (i.e., health problems associated with lifetime smoking and heavy drinking). In addition, it identifies the mediator variables of lifestyle risks and social psychological resources (with the subclasses of lifetime smoking, family support, family strain, and personal control).

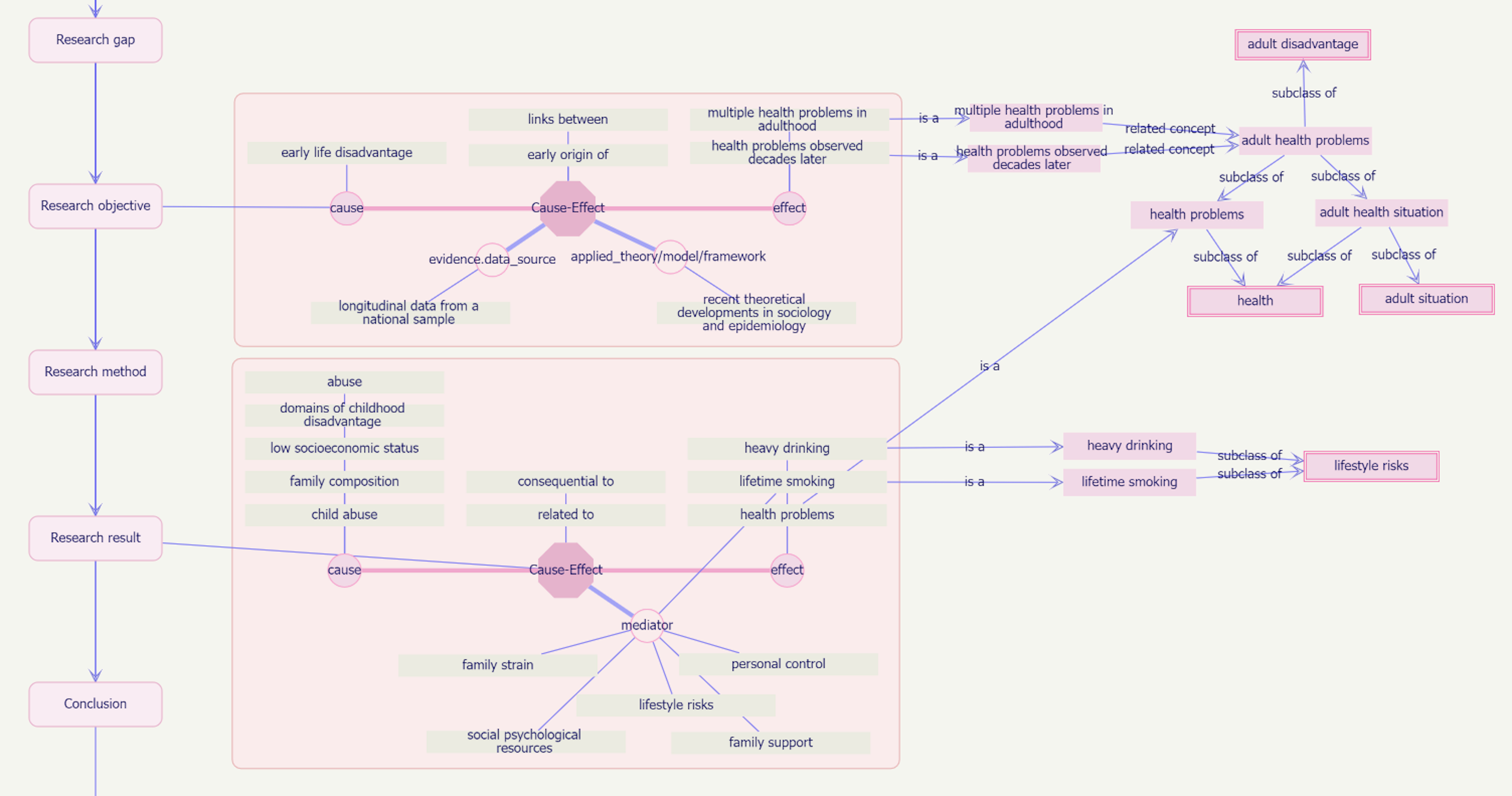

We implemented a graph visualization application to present the causal information structure of the statements along the argument chain, showing how the causal knowledge is constructed (the application is accessible at : https://kgraph.sg/argstructure/demo1.html and https://kgraph.sg/argstructure/demo2.html). Fig. 2 presents a visualization of the causal structure in the research objective and research result statements, showing how the Effect concepts in the two statements are related. Fig. 3 shows a merged visualization that combines the causal structure of both research objective and research result statements, but indicating the contributions of each statement.

Fig. 2.

Visualization of the causal information structure for research objective and research result statements, showing how the Effect concepts in the two statements are related.

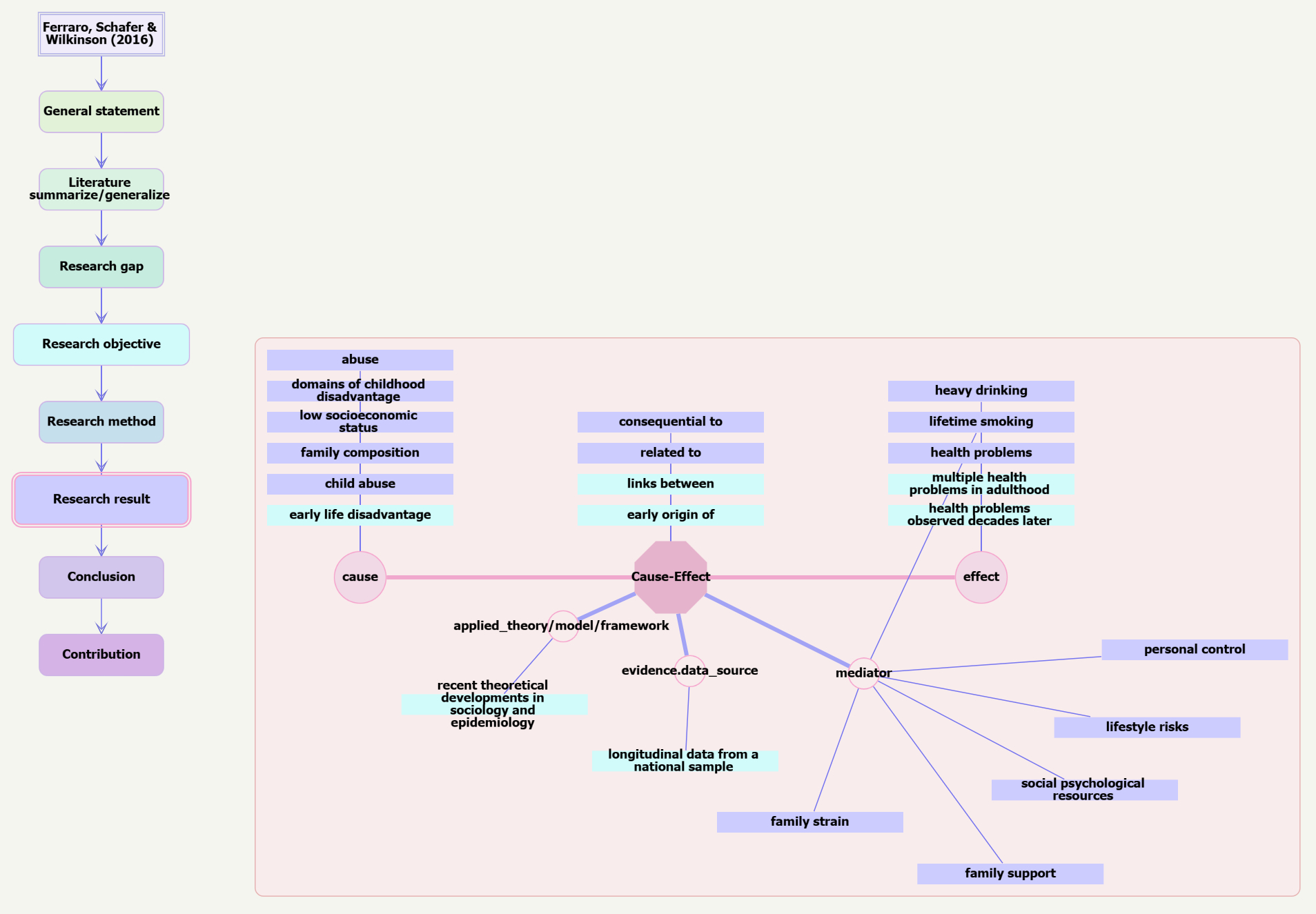

Fig. 3.

Merged causal structure of research objective and research result statements, showing the contributions of each.

We present the analysis results organized into the three types of information structure changes described earlier, as well as highlight the contributions of the general statement, topic centrality and research objective statements. To clarify the results, we make use of the main argument chain in the research paper Ferraro et al (2016) as the illustrative example for the graph visualizations presented in the figures. Table 4 lists the main argument/rhetorical statements from this paper. Fig. 4 offers a visualization of the causal information structure for the first four argument/rhetorical statements.

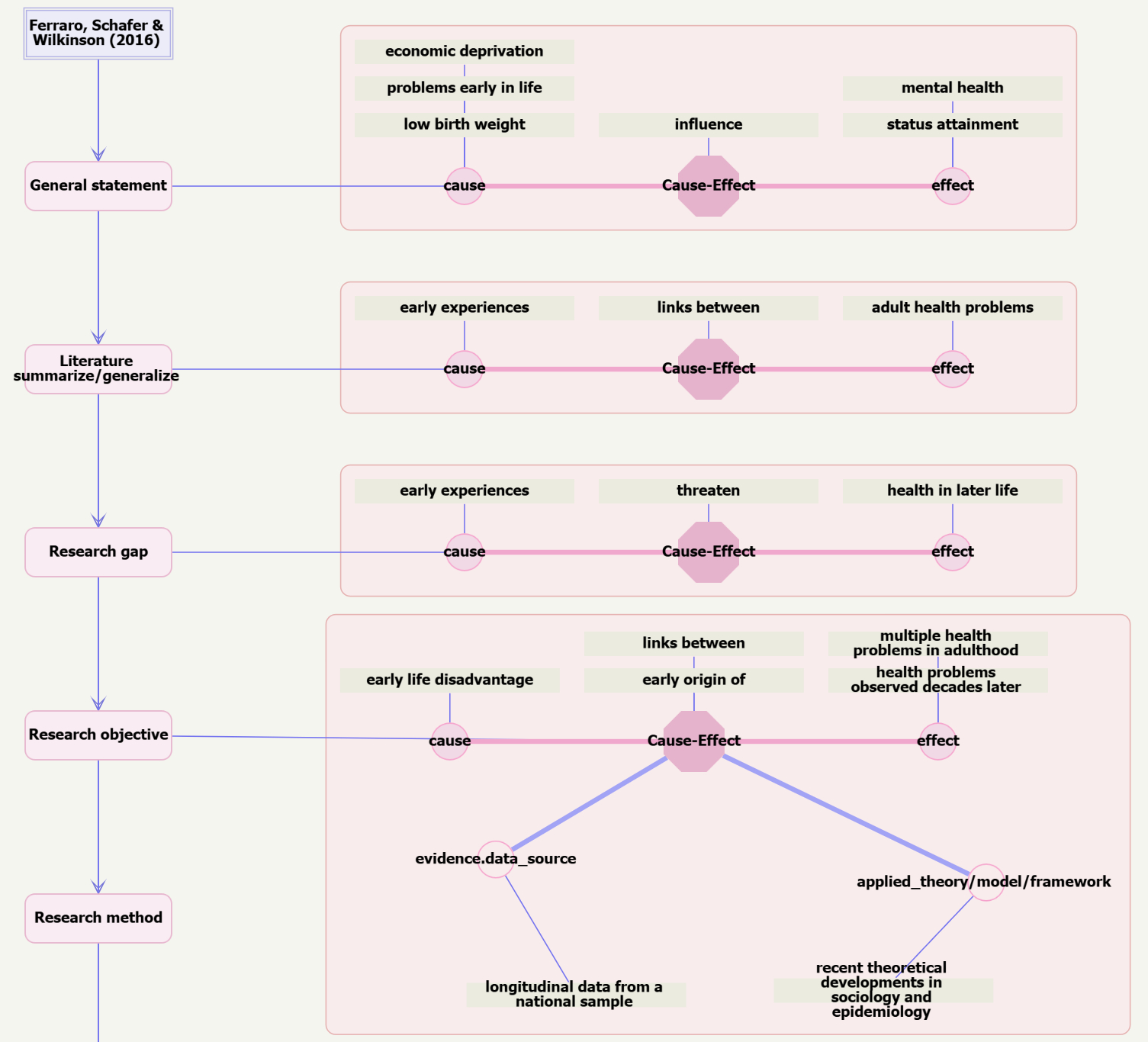

Fig. 4.

Visualization of the causal information structure for General statement, Literature summarize, Research gap and Research objective statements.

The general statement claim lays out the main causal information structure:

It is understandable that problems early in life [i.e., childhood situation] … may influence status attainment and mental health [adult situation], …

The causal information structure represented in this statement can be characterized as:

(childhood situation) –[cause]-$>$ (adult situation)

This general statement suggests that the causal relation is general knowledge, or at least plausible. It also starts sketching out a class hierarchy for the cause concept and the effect concept. The rest of the argument claims in the argument chain flesh out this causal information structure in various ways.

5.2 Type 1. Specifying the Cause or Effect Concept, or Narrowing or Broadening Them

This type of modification to the causal information structure includes:

• Adding a new cause or effect concept—which may be an alternative cause or effect to what is generally known or investigated in previous studies;

• Narrowing the cause or effect concept—by specifying a subclass of the concept, or adding an attribute or aspect of the concept, thus making the cause/effect more specific;

• Broadening the cause or effect concept—by moving up the class hierarchy to a more abstract concept (possibly suggesting that the study will broaden the scope of the study to additional sibling concepts in the class hierarchy).

Thus, this analysis sought to identify cases where the author zooms in to narrower concepts, and zooms out to broader or more abstract concepts (see Table 6). This coding obtained an intercoder score of 0.65 (Jaccard similarity measure). This indicates that for each coder, about 20% of the tags were not found in the other coder’s tagging, indicating that the coding involves some subjective judgement.

Table 6. Specializing or generalizing the cause concept and effect concept in argument steps (N = 30).

Argument step	Cause concept			Effect concept
	Add	Narrower	Broader	Add	Narrower	Broader
General statement, Topic centrality or Literature summarize/generalize $\Rightarrow$ Research gap	5	1	0	2	4	0
Research gap $\Rightarrow$ Research objective	3	3	0	0	3	0
Research objective & Research method $\Rightarrow$ Research result	5	0	1	1	5	0
Research result & Research gap $\Rightarrow$ Research contribution	0	0	3	1	0	4

Table 6 indicates that research gap statements introduced additional cause concepts 5 times (out of 30 papers), and specified narrower effect concepts 4 times—compared to the concepts in the preceding general statement and literature review statements. Similarly, research result statements added new cause concepts 5 times (compared to the research objective statement), and specified narrower effect concepts 5 times. The research contribution statement broadened the effect concept 4 times (compared to the research result). Admittedly, there are no compelling patterns that occurred more than 10 times.

The conceptual zooming in and zooming out along the main argument chain can assist argument mining programs to construct class hierarchies. In the example argument chain in Table 4, both the cause concept (childhood situation) and effect concept (adult situation) are elaborated with subclasses to form class hierarchies. The main class hierarchies for the cause concept and effect concept are listed in Table 7, and the complete concept network are displayed in the graph visualization in Fig. 5.

Table 7. Class hierarchies for the cause concept and effect concept for the example argument chain.

childhood situation (synonyms: early in life, early experiences)
	childhood problems (problems early in life, childhood disadvantage, early life disadvantage, early stressor, distal or “upstream” risk factors)
		childhood health problems
			low birth weight
			childhood mental health issues
				traumatic experience
		childhood economic deprivation
			low socioeconomic status
		child abuse
	family composition
adult situation
	adult status attainment
	adult health situation (health in later life)
		adult health problems
			adult mental health problems

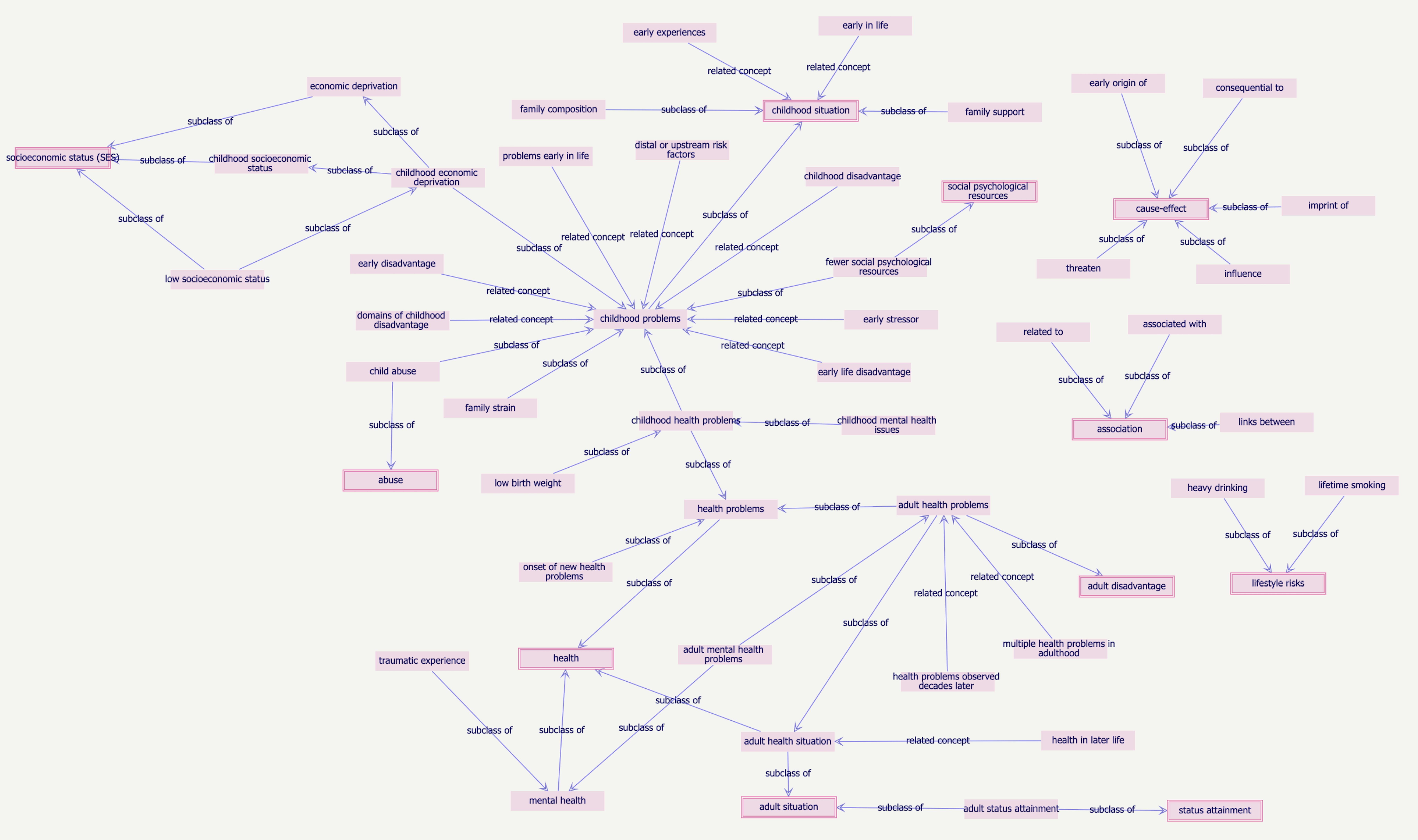

Fig. 5.

Multiple interconnected class hierarchies for the cause concept and effect concept for the example argument chain.

The argument chain navigates down and up the class hierarchies. First, the general statement sketches out the class hierarchies:

• Cause concept: Childhood situation $>$ Childhood problems $>$ Low birth weight and Economic deprivation

• Effect concept: Adult situation $>$ Status attainment and Mental health

The literature review, research gap and research objective statements specify broader concepts: early experiences/early life disadvantage cause adult health problems. Then the research result statement zooms in to subclasses of the cause concept and effect concept: low Socioeconomic Status (SES), family composition, and child abuse cause health problems associated with lifetime smoking, and heavy drinking. The research contribution statement then zooms out into broad concepts: distal or “upstream” risk factors causes social factors and health.

This conceptual zooming in and out along the argument chain occurs in some papers. Some academic writing authors have referred to this as the funnel structure in the Introduction section (e.g., Annesley, 2010; Bahadoran et al, 2018; Plaxco, 2010). However, we observed that a reverse funnel sometimes occurs in the Discussion/Conclusion section—forming what can be termed an hour-glass pattern (see Fig. 6). We found the hour-glass pattern to occur in 8 papers (27%, 8 of 30 papers) for the cause concept, and 7 papers (23%) for the effect concept. Examples of the hour-glass pattern of conceptual zooming in and zooming out across the argument chain are provided in Appendix Tables 10 and 11.

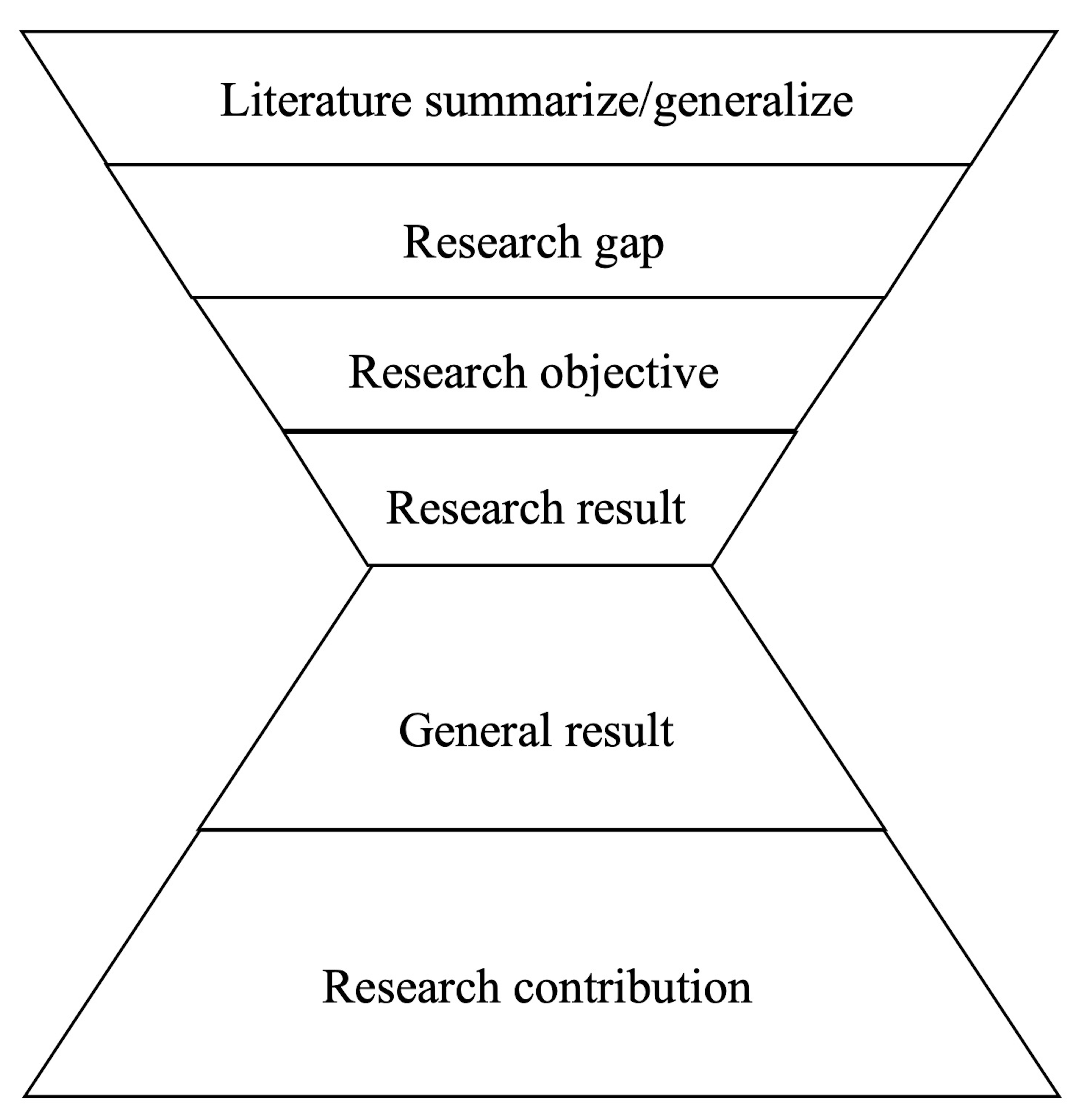

Fig. 6.

The hour-glass pattern of conceptual zooming in and zooming out along the main argument chain.

One way of making a cause concept or effect concept more specific is to elaborate it with additional attributes or aspects, thus narrowing the scope of the causal information structure, as illustrated in the following examples:

[Research gap] Surprisingly, the debate on the pros and cons of _{cause-concept}shared residence disregards the consequences for parents, …

[Research objective] We distinguish between two aspects of _{cause-concept}residence arrangements: _{aspect-of-cause}the main residence of the child (i.e., _{subclass-of-cause-concept}mother, father, or shared residence) and _{aspect-of-cause}the visitation of nonresident parents.

[Research gap] Despite frequent contact and the potential _{cause-effect-relation}impact of _{cause-concept}grown children on _{effect-concept}parental well-being, however few studies have examined _{subclass-of-cause-concept}daily experiences in this tie.

[Research objective] In this study we examined the _{aspect-of-cause}modalities parents use to be _{cause-concept}in touch with grown children _{subclass-of-cause}on a daily basis (e.g., phone text, in person). … We also examined the _{aspect-of-effect}emotional valence of daily experiences (i.e., pleasant, stressful).

Sometimes, a study investigated alternative causal factors:

[Objective] We assessed _{association-relation}the nature and direction of the relationship between _{aspect-of-cause}WFC [work-family conflict] and _{aspect-of-effect}psychological distress for _{cause-concept}mothers …

[Result] A range of _{alternative_cause}maternal, child family, and work covariates (with the exception of family size) were found to _{association-relation}be associated with _{cause-concept} WFC or _{effect-concept}psychological distress _{context.temporal}at each point in the family life cycle.

[Literature-summarize/generalize] Prior research that examines _{effect-concept}biracials’ labeling choices _{cause-effect-relation}emphasizes the importance of _{cause-concept}family, peers and environmental context, …

[Gap]… but gives little attention to the _{cause-effect-relation}influence of _{cause-concept}nonracial social identities…

5.5 Research Result Versus Research Objective Information

It is not surprising that the research result statement provides more detailed causal factors and more specific effects and relations than the research objective statement. The question arises whether the research objective statement provides any additional information not found in the research result. In other words, can the research objective statement be discarded once we know the research result?

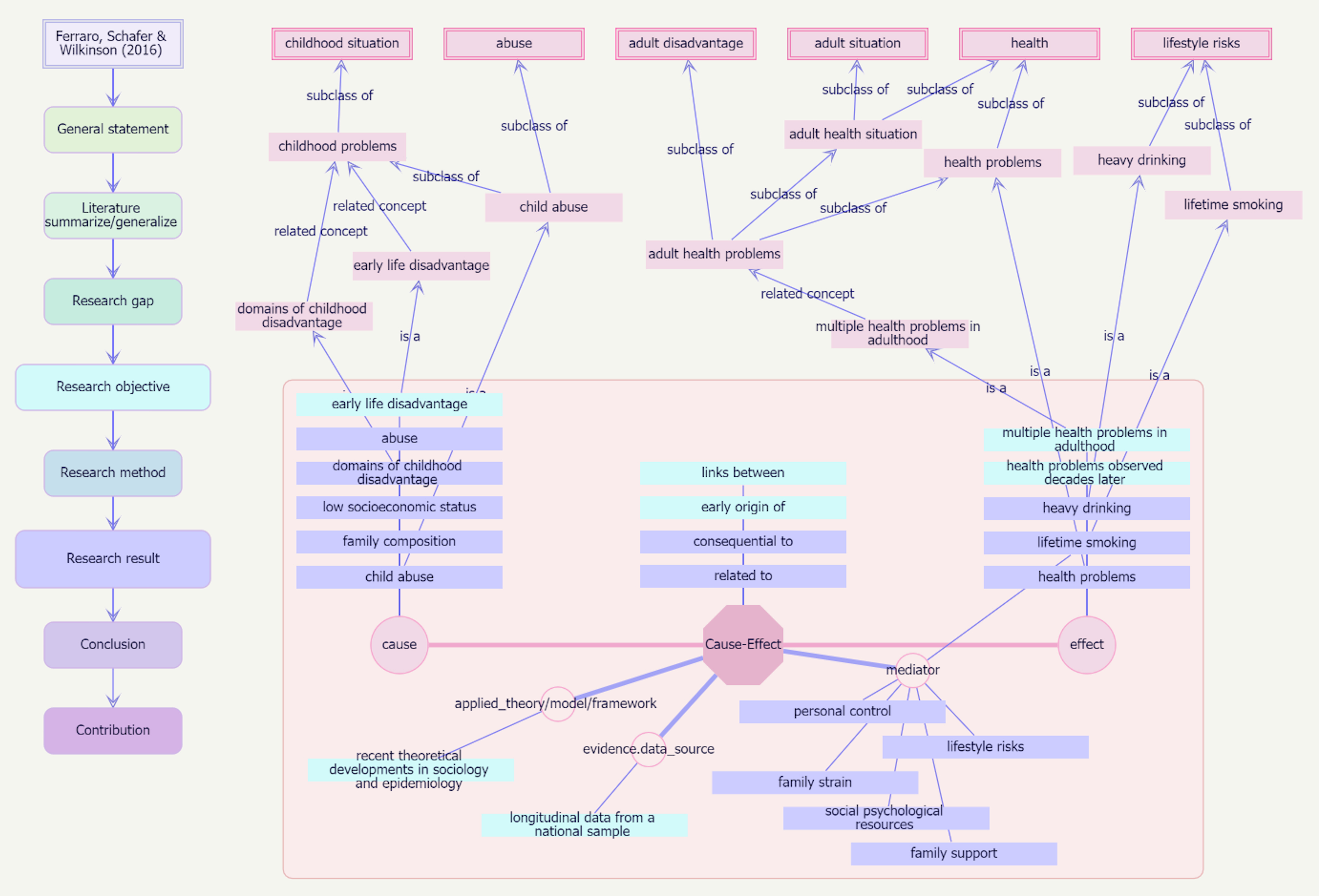

Fig. 7 visualizes the additional concepts and roles (colored green) that the research objective statement adds to the research result for the paper by Ferraro et al (2016) (the main illustrative example). Notably, the research objective indicates the theoretical basis for the study and the type of data used.

Fig. 7.

Visualization showing what additional concepts and roles (colored green) the research objective statement adds to the research result statement.

Comparing the research result with the research objective can highlight unexpected results not indicated in the research objective, as illustrated in the following two pairs of research objective-results statements:

[Objective] In the present study we built on this daily diary literature by examining _cause-effectbidirectional spillover from _concept1the marital to _concept2the parent – child dyad and _cause-effectvice versa.

[Result] An additional contributor to spillover as it is tested in this study could be timing: _concept1Marital and _concept2parent–child conflict may sometimes _{co-occurrence}co-occur rather than occurring in sequence.

[Objective] This study expands prior research by…testing the claim that _{measurement:target_entity}leisure with children and family is more likely to be experienced as _difference1leisure for _concept1men and _difference2work for _concept1women (Shaw 2008).

[Result] However, and _comparisoncontrary to expectations, the _concept2mothers in this study _modalitydid not seem to benefit _comparisonless from _difference2leisure than did _concept1fathers.

It can highlight negative and null results:

[Objective] _purposeTo test the classical conjecture above, I explore the extent to which _{concept_set/concept1}absolute mobility, in conjunction with economic development and income inequality, _{cause−effect}influences_concept2class identification.

[Result] This study also found that _aspect1national-level absolute mobility _modalitydoes not _{cause−effect}influence _concept2class identification.

It can also highlight exceptions or opposite results for a subset of the population or under certain circumstances:

[Objective] …we analyze _subclass1the choice of first names to investigate the _cause-effectcauses and consequences of _concept1immigrant assimilation at the individual level … We ask whether _{common_concept[comparison]}immigrants who attribute _attribute1assimilated were _difference1better able to climb the economic ladder than those who _attribute2retained their ethnic identity.

[Result] _ComparisonThe one exception to this pattern is _subclass1Russian, predominantly Jewish, _{common_concept}immigrants: for this group, sons with _moderatorethnic names ended up, on average, _difference1in higher-earning occupations…

We have analyzed how causal knowledge is constructed along the main argument chain in a sample of 30 sociology research papers. The main argument chain comprises a sequence of statements having the following argument and rhetorical functions: general statement, topic centrality, literature review summary, research gap, research objective, research method summary, research result summary and research contribution. In previous work, we have identified these as forming the main argument chain in the Introduction sections of sociology research papers (Cheng and Khoo, 2022).

The general statement and topic centrality statements highlight important concepts in the causal information structure, especially the causal factors that are the focus of the studies. A general statement often points out cause-effect relations that plausibly hold between two concepts being investigated in the study. The statements sometimes link the cause and effect concepts to other concepts in the literature, which can be used to construct class hierarchies for the cause and effect concepts. The topic centrality statement may extrapolate the cause-effect relation to a distal consequence to highlight the importance of the current study.

Conceptual zooming in and out occurs along the argument chain. The research result statements provide more detailed and specific causal factors and effects as well as moderator and mediator variables, while the research contribution statement sometimes provide broader concepts. We found the hour-glass pattern (zooming into more specific concepts and then zooming out to broad concepts) occurring in about a quarter of the papers, for both the cause concepts and effect concepts. Comparing the research result with the research objective can highlight unexpected results not indicated in the research objective, highlight negative and null results, as well as exceptions or opposite results under certain circumstances. Research result statements occasionally add new causal factors, specify narrower effect concepts, add moderator factors, and to a lesser extent mediator factors. The research contribution statements sometimes broaden the effect concept, and also sometimes compare the results with those of previous studies. They may also extrapolate the results to a possible distant consequence.

We have implemented a prototype knowledge graph visualization interface that visualizes the causal information structure of each statement along the argument chain, as well as how the concepts in the causal structure are linked across the argument elements as well as to class hierarchies, thus showing how information changes along the argument chain. This visualization interface was implemented as a Web application, with a graph database management system (Neo4j graph database on AuraDB cloud service) serving as the backend database, and a graph visualization JavaScript library (Cytoscape.js) on a Web page serving as a frontend. The system is designed with a view to supporting summarization of research results across social science research papers, identification of research gaps, and inferring potential new causal relations which can serve as hypotheses for investigation.

To fulfil this vision, accurate information extraction from the fulltext of research papers covering the details of the cause-effect information frame is needed, together with argument mining methods to identify the argumentative and rhetorical functions of the sentences. Though the state-of-the-art in automatic extraction of cause-effect information is in supervised learning using deep-learning models such as BiLSTM, Transformer and BERT models (Ali et al, 2021), recent studies using ChatGPT (a Large Language Model) have found that with well-designed prompts, LLM models can yield information extraction accuracies that are close to deep-learning models with much less effort (e.g., Zhu et al, 2024; Chan et al, 2024). Thus, it is now feasible to develop Web applications for constructing causal argument knowledge graphs for science and social research papers automatically.

In addition to extracting the details of cause-effect relationships from text and tagging sentences with argument/rhetorical functions, our analysis has highlighted that additional metadata should be provided to indicate meta-level discourse elements such as: which element of the cause-effect relation is the focus of the study, whether a cause-effect relation is proposed or argued as being plausible, whether a cause-effect relation is extrapolated to distal consequences, conceptual zooming in and out, unexpected results, and exceptions to a research result under particular conditions.

Although the scope of our analysis is limited to sociology research papers, the results are expected to apply more generally to social science research papers. This is because our analysis framework is based on argument/rhetorical functions (e.g., research gap and research objective) that are common to many social science disciplines. We acknowledge that while the general argument/rhetorical structure is shared, the specific forms of causal claims and the level of quantitative rigor vary across disciplines. For example, economics and psychology are likely to have more complex mathematical and statistical expressions. Our analysis has highlighted some of the conceptual dynamics of knowledge construction, which is a meta-level phenomenon that is threaded through the argument/rhetorical structure of a research paper.

The primary dataset for this study consists of sociology articles published in SSCI-indexed journals. Due to copyright restrictions and subscription-based access through university library databases, the full texts of these articles cannot be publicly shared by the authors.
