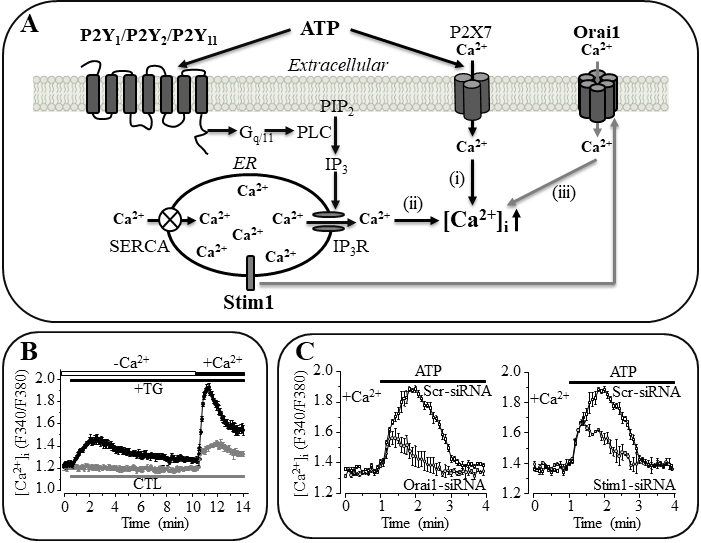

Fig. 1.A graphic illustration of the molecular mechanisms that
participate in ATP-induced Ca signalling in mesenchymal stem cells (MSC).
(A) Extracellular ATP induces an increase in intracellular Ca
concentration via the P2X7 receptor that mediates Ca influx (i).
Alternatively, ATP activates the G-coupled P2Y receptor (P2Y,
P2Y and/or P2Y) and phospholipase C (PLC) to generate inositol
1,4,5-triphosphate (IP) from membrane lipid phosphatidylinositol
4,5-bisphosphate (PIP) and induce IP receptor (IPR)-mediated
Ca release from the endoplasmic reticulum (ER) (ii). Release of the ER
Ca subsequently triggers store-operated Ca entry (SOCE) through the
store-operated Ca (SOC) channel, particularly the
Ca-release-activated Ca (CRAC) channel (iii). Inhibition of the
sarcoplasmic/endoplasmic Ca-ATPase (SERCA) with thapsigargin (TG) to
prevent the cytosolic Ca uptake can lead to loss of the ER Ca,
which is widely used in “Ca add-back” experiments to activate the SOC
channel. (B) Example recordings using “Ca add-back” to show that
treatment of human dental pulp-derived MSC with TG induced release of the ER
Ca in the absence of extracellular Ca led to a greater Ca
response upon re-introduction of extracellular Ca. CTL, control (without
TG treatment). (C) Example recordings showing that small interference RNA
(siRNA)-mediated knockdown of the expression of Orai1 or Stim1 reduced
ATP-induced Ca response in human dental pulp MSC. Scr-siRNA, scrambled
siRNA. (B) and (C) taken and modified from Peng et al. (2016) [80].
