Impact of Prostatic Artery Embolization in Patients with Enlarged True Middle Lobes
Show Less
1 Clinic for diagnostic and Interventional Radiology and Neuroradiology, MediClin Robert Janker Klinik, 53129 Bonn, Germany
2 Department for Urology, Urology Centre Friedensplatz, 53111 Bonn, Germany
*Correspondence: (Attila Kovács)
J. Mens. Health 2022, 18(11), 216;
Submitted: 18 January 2022 | Revised: 18 March 2022 | Accepted: 25 March 2022 | Published: 17 November 2022
(This article belongs to the Special Issue The treatment of LUTS/BPE)
Copyright: © 2022 The Author(s). Published by IMR Press.
This is an open access article under the CC BY 4.0 license.

Background: Prostatic artery embolization (PAE) is an emerging minimal-invasive therapy of benign prostatic hyperplasia (BPH), able to reduce the prostatic volume (PVol) and the IPP. The presence of a true middle lobe (TML) is associated with bladder outlet obstruction (BOO), causing lower urinary tract symptoms (LUTS). In this study we investigate the effect of PAE in TML improvement in patients with LUTS. Methods: A retrospective analysis was done of 47 men treated with PAE from April 2015 to September 2021. The volume of the TML, IPP, and PUA were measured on MRI prior and 2 months after PAE. Successful devascularization of the TML was evaluated by contrast-enhanced MRI (ceMRI) 48 hours after therapy. Results: The TML was successfully embolised technically in 72%. After two months, the total volume of the prostate (PVol) was reduced by 25.8 ± 13.3% (from 72.1 ± 39.8 cc to 52.5 ± 27.9 cc; p < 0.000). Following a technically successful PAE of the TML, the TMLVol decreased by 32.1 ± 21.5% (from 10.6 ± 16.1 cc to 7.2 ± 13.1 cc; p < 0.000), and the IPP was reduced by 29.3 ± 15.5% (from 16.3 ± 7.4 mm to 11.9 ± 6.6 mm; p < 0.000). In contrast, after a technically incomplete devascularisation of the TML the TMLVol decreased by only 7.2 ± 17.7% (from 8.4 ± 9.3 cc to 7.5 ± 8.9 cc; p = 0.089), and the IPP was reduced by only 10.9 ± 8.8% (from 16.4 ± 7.3 mm to 14.6 ± 6.7 mm; p = 0.003). The currecture of the PUA after a successful and after an incomplete embolization of the TML was comparable with 11.6 ± 7.6 and 12.2 ± 9.4, respectively (in both p < 0.001). Conclusions: Our study firstly shows that PAE is able to reduce TML volume. Furthermore, PAE is able to reduce the IPP even if caused by a TML.

benign prostatic hyperplasia
lower urinary tract symptoms
prostatic artery embolisation
minimal-invasive therapy
true middle lobe
1. Introduction

The pathophysiology of male lower urinary tract symptoms (LUTS) is complex and multifactorial. A common cause of LUTS is benign prostatic hyperplasia (BPH). A key morphological parameter of the enlarged prostate that influence bladder outlet obstruction (BOO) is the intravesical prostatic protrusion (IPP) [1, 2]. The IPP is defined as the protrusion of the prostate into the lumen of the bladder. IPP thus refers to the morphological disorder without specifying which anatomical structure it is formed by. The IPP may be caused by the middle lobe and/or lateral lobes (Fig. 1A and B) [3]. Prostatic artery embolization (PAE) is an emerging minimal-invasive therapy of BPH, able to reduce the prostatic volume (PV) and the IPP [2, 4, 5, 6, 7]. True Middle Lobes (TML) are technically difficult to embolize (Fig. 1D) and are considered to be a relative contraindication to PAE [8]. To the best of our knowledge, there is currently no publication that has investigated the effect of PAE on TML improvement in patients with LUTS. Only patients in whom the IPP was formed only by the TML were included in this study.

Fig. 1.

Intravesical prostatic protrusion (IPP) caused by the lateral lobes of the prostate or by the middle lobe. (A) T2-weighted MRI of the prostate, with coronal angulation. The IPP relocates the urinary bladder outlet. The MRI clearly shows that the IPP is formed by the left lateral lobe in this case (outlined in green). (B) T2-weighted MRI of the prostate, coronal angulation. The urinary bladder outlet is also displaced by the IPP. The MRI clearly shows that the IPP is formed by the middle lobe in this case (outlined in green). (C) Angiography image of the prostate in the context of PAE. If the IPP is formed by the lateral lobe, the IPP is also supplied by the lateral lobe artery (red arrow). (D) Angiography image of the prostate in the context of PAE. If the IPP is formed by the middle lobe, the IPP is supplied by its own artery, which usually runs along the prostatic urethra from the apex to the base (red arrow).

2. Material and Methods

A retrospective analysis was done of 47 men with TML treated with PAE from April 2015 to September 2021. The IPP, the prostatic urethral angle (PUA), and the volume of the TML (TMLVol), were measured on MRI prior and 2 months after PAE. The IPP was measured on the midsagittal plane in T2-weighted MR-images of the prostate as the shortest perpendicular distance between the protruded end of the prostate and the bladder base on the bladder neck in the sagittal plane. The PUA was measured as the angle between the prostatic urethra and the membranous urethra in the midsagittal plane also at MRI. The volume of the TML was measured in the multiplanar MRI using the volume formula a × b × c/2; where a, b, and c are the diameters in all three spatial directions. During embolisation of the TML, we targeted the TML-supplying artery shown in Fig. 1. In order to ensure that the target vessel supplies the entire TML, we performed a pre-therapeutic (i.e., before embolisation) simulation using a capillary cone beam CT (cCBCT) in all cases. The technical success of PAE of the TML, defined as a complete devascularization of the TML was evaluated on contrast-enhanced MRI (ceMRI) 48 hours after therapy. Patients with urologic tumors, neurogenic bladder, urinary tract infection, bladder stones, which could affect voiding, were excluded. PAE was carried out with calibrated spheric embolic agents with a diameter of 300–500 μm (Merit Embospheres®). SPSS ver. 13.0 (SPSS Inc., Chicago, IL, USA) was used for statistical analysis. p-values of <0.05 were considered statistically significant.

3. Results

The mean age was 66.4 ± 9.6 years. According to the ceMRI 48 hours after PAE, the TML was successfully embolised technically in 72% (34 of 47 patients). After two months, the total volume of the prostate (PVol) was reduced by an average of 19.5 ± 19.6 cc, from 72.1 ± 39.8 cc to 52.5 ± 27.9 cc (p < 0.000). This corresponds to 25.8 ± 13.3% volume reduction (Fig. 2).

Fig. 2.

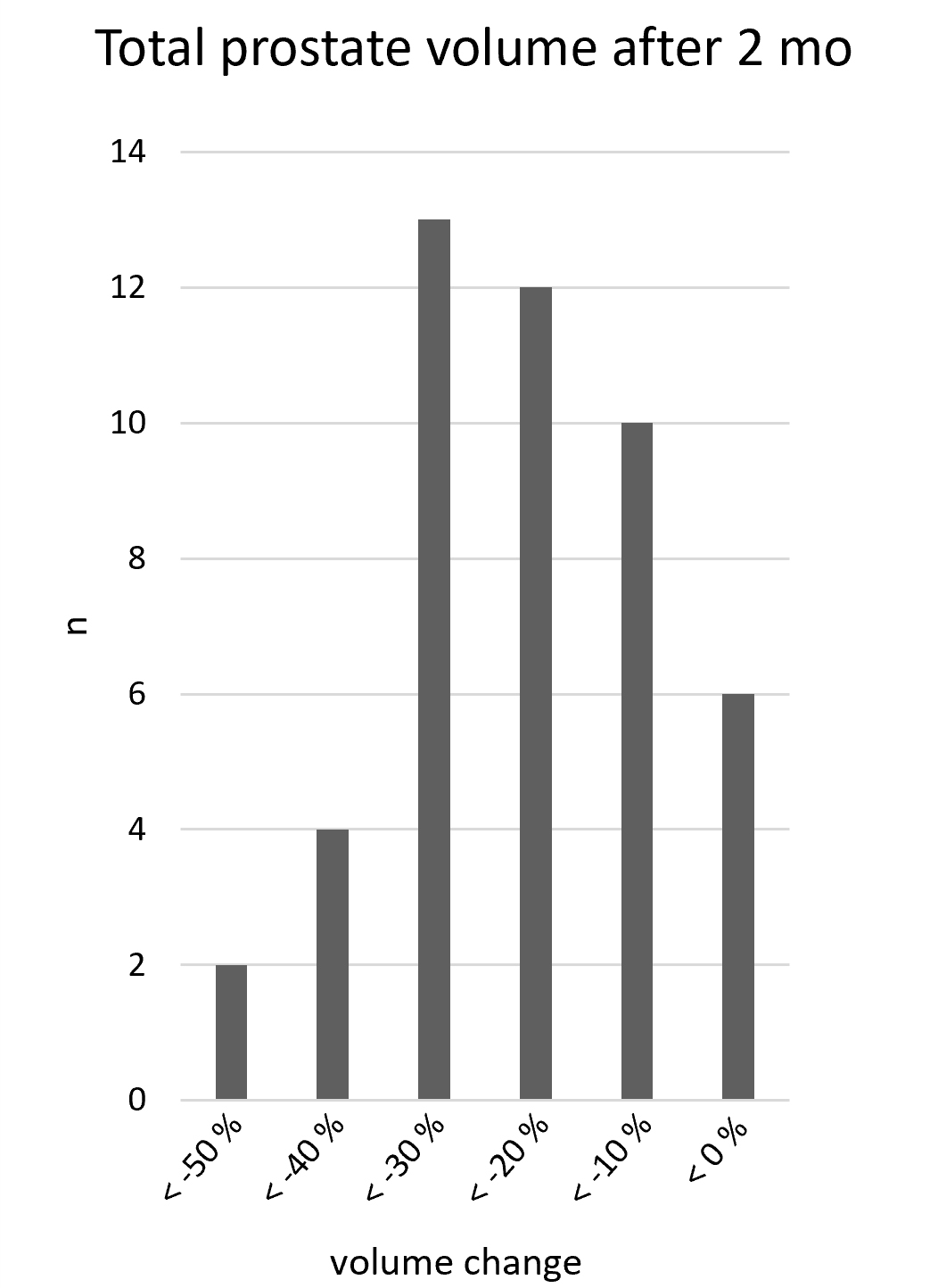

Distribution of prostate volume reduction after 2 months. In most patients, the prostate volume was reduced between 10% and 30%. In no case was the increase in prostate volume observed.

Following a technically successful PAE of the TML, the TMLVol decreased by 3.3 ± 4.3 cc, from 10.6 ± 16.1 cc to 7.2 ± 13.1 cc (p < 0.000). This corresponds to 32.1 ± 21.5% volume reduction. In contrast, the TMLVol decreased after a technically incomplete devascularisation of the TML by 0.8 ± 1.6 cc from 8.4 ± 9.3 cc to 7.5 ± 8.9 cc (p < 0.09). This corresponds to 7.2 ± 17.7% volume reduction (Figs. 3 and 4). A similar result can be observed for the IPP. Following a technically successful PAE of the TML, the IPP was reduced by 4.4 ± 2.9 mm, from 16.3 ± 7.4 mm to 11.9 ± 6.6 mm (p < 0.000). This corresponds to a reduction by 29.3 ± 15.5%. In contrast, after incomplete devascularization of the TML the IPP was reduced by 1.8 ± 1.9 mm, from 16.4 ± 7.3 mm to 14.6 ± 6.7 mm (p < 0.004). This corresponds to a reduction by 10.9 ± 8.8% (Figs. 4 and 5).

Fig. 3.

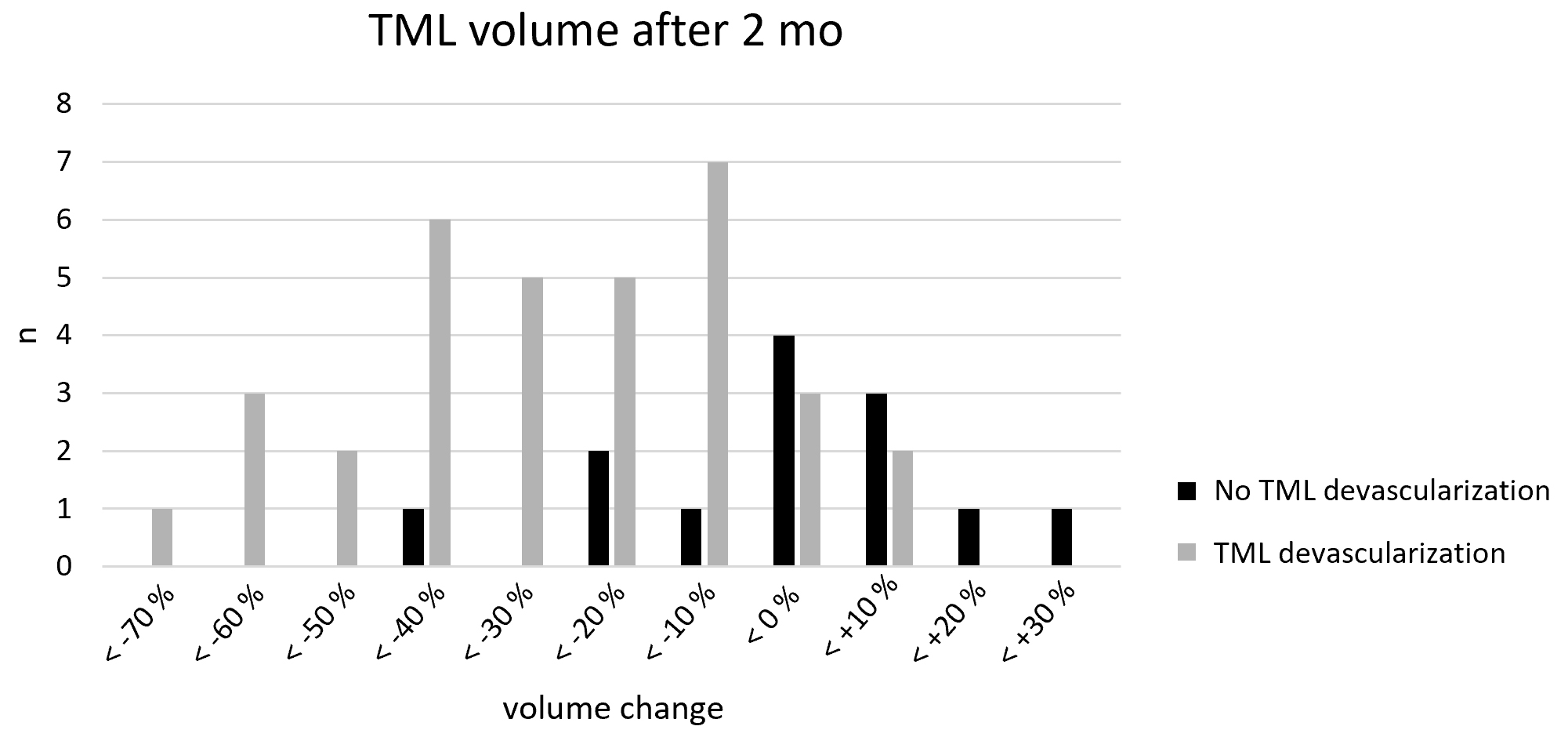

Course of the true middle lobe volume (TMLVol) two month after the prostatic artery embolization (PAE). There is significant volume reduction of the TML after successful embolization with most cases presenting a 10–50% reduction. 29 out of 34 patients (85.3%) with successful TML devascularization showed a significant reduction of TML volume of greater than 10%. By contrast, without devascularization TML volume is almost indifferent.

Fig. 4.

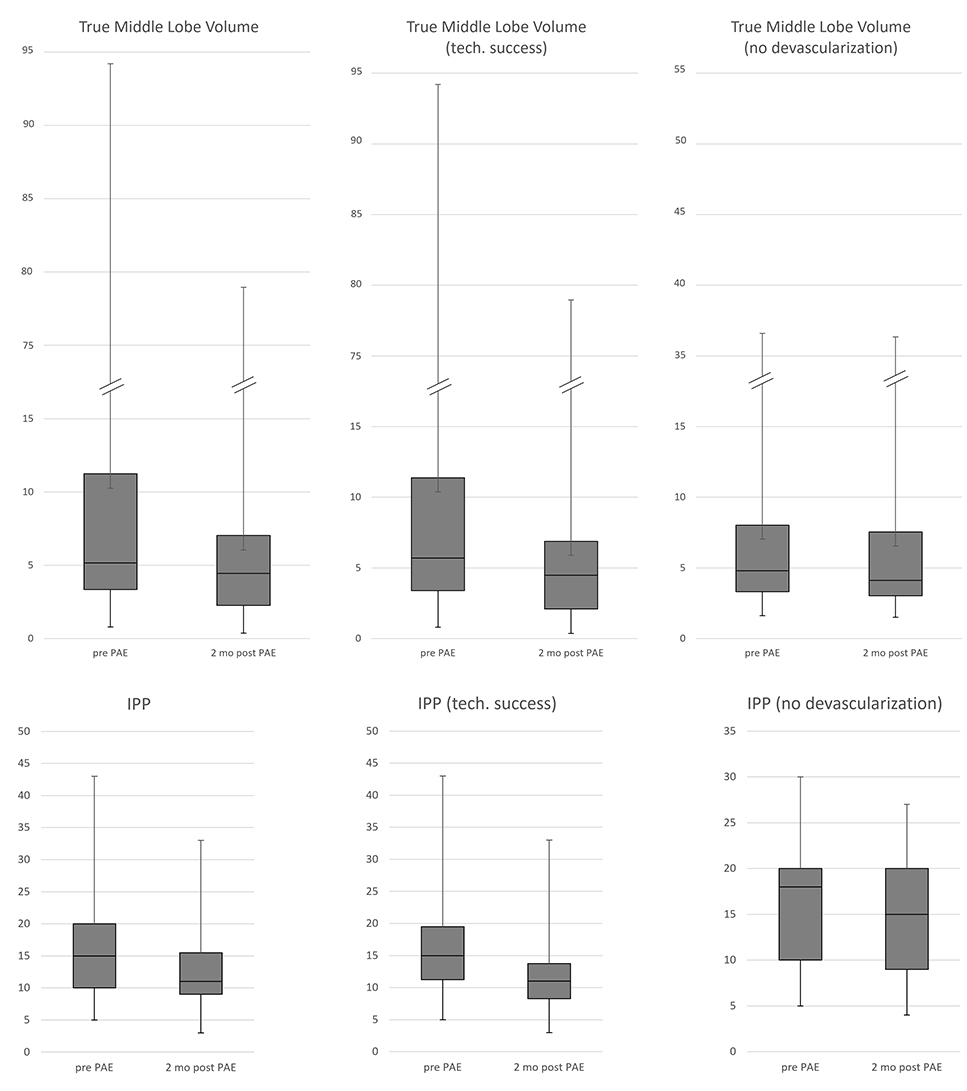

Volume of the true middle lobe (TML) and height of the intravesical prostate protrusion (IPP) in the course after PAE. Both the volume reduction of the TML and the height of the IPP are reduced more significantly after successful devascularisation of the TML than after incomplete devascularisation.

Fig. 5.

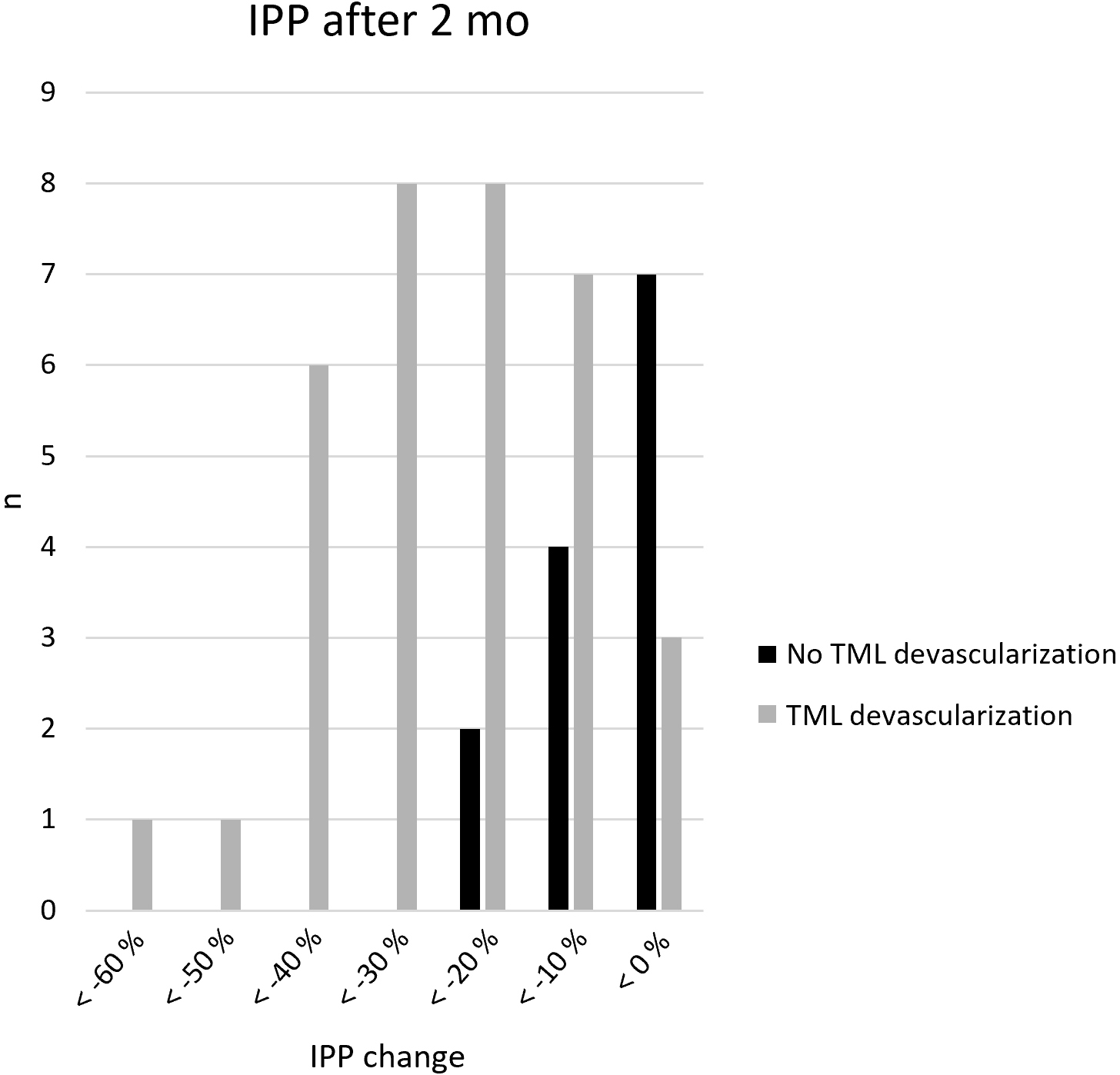

Course of the intravesical prostatic protrusion (IPP) two month after the prostatic artery embolization (PAE). Accordingly, to the TMLVol (Fig. 3), considerable IPP reduction was achieved after successful embolization of the TML: In 31 out of 34 cases (91.2%) IPP decreased significantly after successful TML devascularization. By contrast, without complete devascularization of the TML, IPP stayed indifferent or showed only a slight reduction.

The curvature of the PUA after a successful and after an incomplete embolization of the TML was comparable with 11.6 ± 7.6 (p < 0.000) and 12.2 ± 9.4 (p < 0.001), respectively.

In 8.5% (4/47) of patients, a mild postembolisation syndrome was seen in the first two days after PAE. Postembolisation syndrome (PES) summarise temporary dysfunctional disorders, that may occur in the first days after treatment. These temporary complaints (urodynia, urine discolouration, and spasms) can usually be effectively controlled by non-steroidal anti-inflammatory drugs (NSAIDs) such as ibuprofen p.o., usually combined with a proton pump inhibitor. In case of spasms a combination with spasmolysis is suggested. Additional analgetics are generally not required.

The median dose area product (DAP) was 75.35 Gycm2, which corresponds to an effective dose (ED) of 19 mSv.

4. Discussion

We here present the first single centre retrospective study proving the positive effect of PAE not only on the reduction of PV, IPP and PUA, but also on the volume of TML (Fig. 6). Our results suggest that IPP and TML are two closely physiologically linked parameters. Further, the TML, has only a subordinate role on PUA.

Fig. 6.

59-year-old patient with pronounced LUTS (IPSS 27), severely impaired quality of life and without impairment of erectile function (IIEF 24). The patient explicitly desired ejaculation-preserving therapy. (A) Pretherapeutic diagnostic MRI (sag T2w) with the pronounced IPP. (B) Coronal angulated ceMRI 48 hours post PAE clearly shows complete devascularisation of the TML. (C) Follow-up MRI 2 months post PAE shows a marked reduction in IPP with persistent signs of devascularisation.

While BPH represents a histological diagnosis, LUTS comprises a symptom complex. BPH is a common cause of LUTS, predominantly in older men [8]. In fact, a variety of conditions can lead to LUTS, so that only about a quarter to half of patients with proven BPH also have LUTS, and conversely, of men with LUTS, only about 50% have urodynamically proven BOO. Although the prevalence is high, many questions about the pathogenesis of LUTS remain rather incompletely answered [9, 10].

Clinically, the diagnosis of BPH and BOO is usually made based on PV >40 mL, a maximum flow rate (Qmax) <10 mL/s, in combination with a high IPSS [9]. Many clinical studies have demonstrated that LUTS have poor diagnostic specificity for BOO, moreover the correlation between PV and LUTS severity is weak [7, 10].

It is well studied and known that the effect of PAE goes beyond volume reduction alone [11]. The reason lies in the variety of therapeutic effects of PAE and their synergistic effects: (1) shrinkage of the enlarged prostate gland as a result of ischemic infarction, (2) relaxation of the increased prostatic smooth muscle tone by reducing the prostate stroma and additionally α-adrenergic denervation, (3) the softening effect of nitric oxide pathway, (4) blockage of androgen circulation into the prostate, and (5) ischemia-induced apoptosis [11].

Our study is one of the first to evaluate changes in TML as well as in IPP following PAE. The IPS-score correlate only partially with prostate enlargement, BOO and LUTS [12]. Further, there is no fixed correlation between PVol, and BOO [13]. Eckhardt MD et al. [14] demonstrated in a study from 2001, that patients with LUTS primarily suffer from storage symptoms, particularly urge incontinence and nocturia. The particular burden of irritative storage symptoms has been confirmed by follow-up studies [15, 16]. Therefore, as is so often the case in the relevant literature, it is only of limited use to take the total volume of the prostate as a reference value for the success of the therapy and as a morphological correlate for clinical improvement.

IPP is of increasing interest in the context of PAE. The prevalence of IPP is reported to be 27% in Caucasians aged 41–88 years. IPP and BOO index correlate positively with each other, whereas drug therapy strategies and significant IPP correlate negatively. Analogous to IPP, TML must also be scientifically evaluated, especially since the enlarged middle lobe originating from the periurethral zone often leads to mechanical bladder outlet obstruction. In addition, hyperplasia of the lateral lobe originating from the transition zone may also be involved in IPP. Pathophysoplogically, IPP produces a type of “ball valve” obstruction that disrupts the funnel effect of the bladder neck and leads to dyskinesias of the bladder muscles during voiding [17].

Downsizing of the middle lobe resulted in a significant decrease in the mean IPP index three months after PAE in a prospective study of 18 patients. This in turn correlated with the IPS score and it was concluded that approximately 40% of the change in clinical relief of IPSS could be explained by a decrease in the IPP index [18]. Another analysis stratifying IPP patients by thickness-to-height ratio (T/H ratio), using a cut-off value of 1.3, found that IPP with a T/H ratio 1.3 correlated with suboptimal IPSS at 12 months (p = 0.025) and suboptimal QoL at 6 months (p = 0.025) and 12 months (p = 0.008) [19]. In addition, complications such as de novo AUR seemed to occur more frequently in patients with IPP. However, even with successful devascularisation of the IPP, BOO may worsen and AUR may develop due to the valve effect. This highlights the need for further investigation of stratified IPP parameters and their predictive potential in clinical practice.

The increasing prevalence of BPH and dissatisfaction with conventional therapies for LUTS have paved the way for new, minimally invasive, continence- and ejaculation-preserving treatment strategies and individualised therapeutic approaches. This is reflected in the EAU recommendations, which take into account not only the feasibility and expected symptom relief of each procedure, but also patient preferences and expectations for efficacy, side effects, quality of life and disease progression. Minimally invasive therapies are expanding the therapeutic spectrum for BPH-related LUTS, with equivalent medium-term outcomes in terms of IPS score and superior outcomes for side effects and ejaculation maintenance compared with TUR [9].

Especially in the context of modern, low side effects and individualized therapy of LUTS, the knowledge, that PAE can effectively reduce the TML is an important scientific finding.

The perioperative risk of bleeding and anaesthesia and, in the medium term, incontinence, impotence and retrograde ejaculation are serious side effects of conventional BPH treatment for patients, which often justify their refusal. The fact that PAE is almost free of complications when performed correctly is perhaps the most important advantage of PAE, leading to high patient satisfaction and acceptance. From the perspective of the interventional radiologist, PAE is a technically demanding procedure the complexity of which places high demands on anatomical knowledge, technical skills and equipment. The radiologist must possess extensive experience in embolization therapy. Image guidance using a high-resolution angiography system combined with the C-arm CT are advantageous and are required as a necessary safety standard for performing PAE. The C-arm CT, also known as cone beam CT (CBCT), is indispensable for simulating embolisation before the procedure. Non-target regions can be detected much more reliably, so that in these cases either the microcatheter must be positioned even more selectively or, if not possible, embolisation must unfortunately be dispensed with [7]. If the disease continues to progress despite the successful procedure, surgical interventions ranging from TUR to HoLEP to MIST are still possible without restriction. PAE should therefore not be considered a replacement for established surgical procedures within the therapeutic algorithm of LUTS, but rather a bridging therapy between exhausted conservative treatment options and surgery in patients with moderate to severe storage-dominated symptoms [2, 4, 6, 7, 20].

Although the PAE has many advantages, it also has some disadvantages worth mentioning. A method inherent limitation of the PAE is the applied radiation exposure. The median dose area product (DAP 75.35 Gycm2) and effective dose (ED 19 mSv) measured in our study population was significantly lower than in comparable publications (176.5 Gycm2) [17]. 19 mSv equates in average with a 0.07% additional lifetime cancer risk in a 60-year old man. This corresponds to the radiation exposure of an EVAR, for example [21, 22]. The low radiation exposure in our collective is largely due to a very structured and radiation-hygienic protocol, in accordance with the recommendations of the European Professional Society (CIRSE Academy Course Prostate Artery Embolization”).

The amount of radiation exposure depends significantly on the constitution of the patient as well as the duration of the intervention. The latter depends, among other things, on the extent of atherosclerosis and the diversity of the vascular supply of the prostate. Unnecessary radiation exposure can be avoided in severe atherosclerosis by performing a CT or MR angiography prior to the intervention, which shows the vascular anatomy and helps to preselect technically difficult cases [5]. A limitation of the study presented herein are the missing long-term results.

5. Conclusions

The IPP, regardless of whether it is formed by the lateral lobe or the middle lobe, should be considered as an important clinical factor in male LUTS management. PAE is currently considered a potential link between the exhausted medical management and more or less radical resection-based interventions. Our study found that PAE is able to reduce the IPP even if it is formed exclusively by a TML. Particularly in view of the fact that patients with larger IPPs respond less well to different drug therapies, minimally invasive therapy options must be researched for the targeted therapy of IPP and, equivalently, TML.
