How axons are wiring the vertebrate spinal cord has in particular been studied at the ventral floor plate using fixed samples or looking at single growing axons with various microscopy techniques. Thereby may remain hidden important live organismal scale information concerning dynamics and concurrent timing of the many axons simultaneously crossing the floor plate. Here then, applying light-sheet microscopy, axonal growth and guidance at the floor plate are followed in vivo in real time at high resolution along several hundred micrometers of the zebrafish spinal cord by using an interneuron expressing GFP as a model axon. The commissural axons are observed crossing the ventral floor plate midline perpendicularly at about 20 microns/h and in a manner dependent on the Robo3 receptor. Commissural growth rate reaches a minimum at the midline, confirming previous observations. Ipsilateral axons extend concurrently, at three to six times higher growth rates. At guidance points, commissural axons are seen to decrease their growth rate and growth cones increase in size. Commissural filopodia appear to interact with the nascent neural network, and thereby trigger immediate plastic and reversible sinusoidal-shaped bending movements of neighboring commissural shafts. A simple protocol isolating single neuronal cells from the spinal cord is developed to facilitate further molecular characterization. The recordings show the strikingly stereotyped spatio-temporal control that governs midline crossing. The live observations give renewed perspective on the mechanisms of axonal guidance in the spinal cord that provide for a discussion of the current distinction between diffusible long-range versus substrate-bound short-range guidance cues.
How axons are wired up in an organism is an open and interesting question. In the spinal cord, axons specified as ipsilateral are found on either side of the midline (ipsilateral, contralateral), whereas the commissural axons cross the midline and connect the two body halves (de Ramon Francàs et al., 2017; Sakai and Kaprielian, 2012; Graphical Abstract in the Appendix). The midline separates the right and left body halves and represents a crucial guidance point for the growing axons. Errors of midline guidance can have deleterious effects on further development of the organism (Comer et al., 2015, 2019; de Ramon Francàs et al., 2017; Tessier-Lavigne and Goodman, 1996). In light hereof, it is not surprising that many of the known axonal guidance receptor-ligand pairs have been characterized in conjunction with studies of axons crossing the midline; including the classical four sets of receptor-ligand molecules: Robos-Slits, DCCs-Netrins, Plexins-Semaphorins and Ephs-Ephrins (Chédotal, 2019; de Ramon Francàs et al., 2017; Kolodkin and Tessier-Lavigne, 2011; Stoeckli, 2018; Tessier-Lavigne and Goodman, 1996).
Technically, neuronal wiring at the cellular scale has until now mostly been studied with various widefield, confocal and two photon microscopy techniques and often using discretely fixed samples. Live high-resolution real time studies of axonal outgrowth in vivo have particularly been done on individual axons during pathfinding in the visual system. With its anatomically distinct and well localized axonal pathways, contained in small narrow volumes, confocal and two photon microscopy studies are facilitated (Akin and Zipursky, 2016; Bak and Fraser, 2003; Gaynes et al., 2015; Hutson and Chien, 2002; Mason and Wang, 1997; Nagel et al., 2015; Pittman et al., 2008; Simpson et al., 2013; Sretavan and Reichardt, 1993). In the spinal cord, individual sensory Rohon-Beard axonal growth has been followed live in vivo by widefield and confocal microscopy in the zebrafish (Andersen and Halloran, 2012; Lee et al., 2017; Liu and Halloran, 2005), and individual motoneurons by confocal microscopy in the zebrafish and Xenopus (Bremer and Granato, 2016; Plazas et al., 2013) and widefield in Drosophila (Murray and Whitington, 1999). Though there are compelling reasons to study axon guidance with the Xenopus model (reviewed by Erdogan et al., 2016), a live imaging study of Xenopus spinal cord floor plate commissurals was based mostly on fixed samples (Moon and Gomez, 2005) because the closely apposed notochord obscured live imaging, just as mouse commissural axon studies also rely on fixed samples (e.g. studies by Brose et al. (1999); Comer et al. (2015); Jaworski et al., (2015)).
Direct real time live in vivo recordings showing how the many commissural spinal cord axons simultaneously are crossing the midline are missing. Having such information would potentially give new spatio-temporal insights about development as well as the dynamics and mechanisms of axonal wiring on an organismal scale. This study was initiated in an attempt to fill this gap by using the zebrafish model system (Key and Devine, 2003).
The embryonic zebrafish spinal cord is long, curved and transparent, and grows relatively rapidly in all three dimensions during early development. Therefore, to contain physically and image simultaneously several segments of the spinal cord in real time, a large live image acquisition volume is necessary. Recently, the light-sheet technique has rendered such large scale image acquisition possible (Kaufmann et al., 2012; Keller and Ahrens, 2015; Keller et al., 2008; Wan et al., 2019). In this light-sheet study, in few seconds, at least hundred micrometers deep areas of around 500 by 500 microns were routinely imaged every 0.2 micron in depth and with a resolution in the range of a few hundred nanometers. Such large high resolution image volumes are not attainable with confocal or two photon techniques because of the time involved to scan each layer (each z-stack plane) of large volumes. Moreover, the prolonged acquisition times with these techniques, at larger sampling volumes, augment both phototoxicity and may render time lapse imaging prohibitive on a meaningful time scale. Yet, for smaller volumes, confocal and two photon approaches have provided many high-resolution real-time image studies of neuronal dynamics. These techniques have also been used to demonstrate that similar resolution can be reached by light-sheet microscopy (Akin and Zipursky, 2016; Kaufmann et al., 2012; Keller and Ahrens, 2015; Keller et al., 2008; Portera-Cailliau et al., 2005; Weinger et al., 2015).
In the zebrafish spinal cord, outgrowth of axons starts at about 16 hours post fertilization (hpf). In the literature, extensive zebrafish spinal cord nomenclature, electrophysiological studies, and static neuronal mapping of both unidentified, based on morphology and growth patterns, and identified neurons exists (Bernhardt, 1994; Bernhardt et al., 1990, 1992; Drapeau et al., 2002; Hale et al., 2001; Higashijima et al., 2004; Kuwada et al., 1990a,b; Lewis and Eisen, 2003). Immediately preceding spinal cord axonal outgrowth, dynamic cell movements during neurulation and neurocoel formation occur and was therefore occasionally also observed in this study due to the developmental spatio-temporal intertwined proximity to commissural outgrowth (Buckley et al., 2013; Cearns et al., 2016; Geldmacher-Voss et al., 2003; Kimmel et al., 1994; Papan and Campos-Ortega, 1994).
The model-axon imaged here to study midline crossing in vivo, are interneurons expressing GFP from transcription factor promotor dmrt3, previously described in zebrafish as belonging to the dorsal interneuron 6 (dI6) progenitor domain (Satou et al., 2013). This particular type of interneuron has also been studied in mice and horses, indicating a largely uncharacterized both ipsilateral and commissural population (Griener et al., 2017; Staiger et al., 2017).
Here, a striking spatio-temporal synchrony of commissural axons performing similar simultaneous stereotyped guidance steps in different spinal cord segments is reported. Observing this synchrony required real-time imaging on an organismal scale, and may not be achieved looking at single growing axons by conventional microscopy techniques. The live observations give renewed perspective on the mechanisms of axonal guidance in the spinal cord that provide for a discussion of the current distinction between diffusible long-range versus substrate-bound short-range guidance cues.
Zebrafish (RRID: Danio rerio) were maintained at 28.5 °C by the SciLifeLab Zebrafish Facility at Uppsala University according to approved institutional methods. Dr. Higashijima, Japan, kindly provided Dr. Boije with the transgenic Tg(dmrt3: GFP) zebrafish used in this study, expressing GFP under control (GAL4-UAS) of the dmrt3 promotor (Satou et al. 2013). Embryos were staged according to Kimmel et al. (1995). Morpholino antisense oligos were translation blocking and produced and designed by Gene Tools® (Oregon). 0.25% trypsin-EDTA (#25200056), defined trypsin inhibitor (#R007100) and foetal calf serum (#10270098) were from Thermofischer Scientific®. Tricaine, Phenylthiourea (PTU) and low melt agarose were from Sigma®.
For microscopy, the same batch of eggs was used for wild-type and microinjection studies. Eggs were kept at 28.5 °C; occasionally at 30-32 °C the first 12 hours to accelerate development (Kimmel et al., 1995). With a stereomicroscope, signs of GFP expression in the spinal cord were routinely monitored from about 12 hpf. About 14-16 hpf, GFP-expressing embryos were mounted in 1% low-melt agarose dissolved in zebrafish system water with 200 mg/L Tricaine (Kaufmann et al., 2012). The entire embryo, with chorion, was mounted. This was done to give these early embryos the best survival conditions; they are fragile to mechanical handling at this stage and embryos with strong GFP expression in the spinal cord were scarce. The green labelled glass capillaries and plugs for the Carl Zeiss® light-sheet microscope were used. Up to four embryos were mounted at one time, on top of each other, and inserted in the light-sheet microscope chamber filled with regular zebrafish systems water and 200 mg/L Tricaine. Using phase contrast, the GFP expressing embryos were then turned so the dorsal side of the spinal cord faced the microscope objective directly; this was not always possible, because even though the round sample is immobilized in the agarose, the embryo is freely floating inside the chorion. Zebrafish already develops significant pigmentation on the dorsal side by around 24 hpf. Hence, if the purpose was to watch stages past around 24 hpf, 0.1-0.2 mM PTU (Li et al., 2012) final was added to the growth medium about 12 hpf to prevent pigment formation and thereby keeping the zebrafish transparent; 0.1-0.2 mM PTU final was also added to mounting solutions and the observation chamber fluid during light-sheet microscopy. Embryos older than 24 hpf were dechorionated, if not already hatched, and mounted in either 1-1.5% agarose or in an uncoated FEP (Fluorinated Ethylene Propylene) tube with regular zebrafish system water. FEP having about the same refractive index as water (Weber et al., 2014). The FEP tube was briefly precleaned with 70% ethanol and water prior to use. The same piece of FEP tube was used multiple times, minimizing material and cleansing needs. The zebrafish can grow and extend in the FEP-tube and was used for imaging zebrafish up to 40 hours continuously; placing the fish head upwards improved survival. Adjustment of significant drift caused by the soft FEP tube was sometimes necessary; in comparison, little or no drift occurs for agarose mounted samples.
The SciLifeLab BioVis Zeiss Z.1 Light-Sheet microscope equipped with standard chamber (30 mL) for use with a 20 × observation objective (NA = 1) and 10 × illumination objective was used (Zeiss). Image acquisition was every 8th minute, typically x, y 1920 × 1920 pixels, or about 500 μm × 500 μm, zoom 0.8-1.4. GFP was visualized at 488 nm at approximately 2-8% laser power, with pivot scanning, at 26-29 °C. The early spinal cord is not more than about 100 × 100 μm (widthxdepth) but the x, y, z image field was chosen big to accommodate for drift, movement and growth during the long term recordings. Deep z-stacks of the spinal cord, typically 200-700 slices with each slice having a thickness of 0.19 μm, were made to cover both above and below the region of interest (ROI) during growth. To increase data amounts acquired per recording sessions, several larvae were frequently mounted at the same time in the microscope; also because the curved form of the larval spinal cord limits the field of observation and the larvae may change position significantly (due to growth inside the chorion) at this stage of development. For such multi-embryo mounting, the Multiview menu in the microscope operating software was used to fix the x, y, z imaging coordinates for each embryo for each loop of the time lapse. Only one view was taken for each embryo. Multiview was, hence, not used in attempt to improve the point spread function (PSF), and thereby resolution by imaging the same volume of the specimen from several angles; Multiview applied this was did not seem to improve resolution in this transparent zebrafish specimen; moreover, it gives more files to process, becoming impracticable for long term acquisitions. Adjustment of the light-sheet was best done manually, using a few days old zebrafish with fluorescent structures of the kind to observe; alternatively, the light-sheet adjustment wizard was used. Frequently, a narrower light-sheet (manually adjustable in Advanced settings) was used, than set by the software, as it gave sharper images of the submicron structures observed in this study.
Needles with a tip opening of about 10-15 μm were freshly made by manually breaking with forceps (Dumont®, size 5) a drawn-out glass capillary with filament (1 mm diameter, Harvard Apparatus® #BS430-0032). Ejection pressure calibrated to give a roughly 1 nL drop at each ejection prompt. Embryos at the 1- to 2- cell stage were immobilized by letting them adhere to the long edge of a standard microscope slide positioned in a 15 cm petri dish and excess water sucked away (holding about 50 embryos). The needle mounted on a micromanipulator and approached to the chorion, poked through the chorion and, once inside the yolk, pressure ejection activated and the needle immediately withdrawn. Morpholino stocks were at 1 mM in Millipore® water, about 8 ng/nL, and if diluted this was done just prior to the experiments. 5’-3’ sequences for the two zRobo3, Robo3var1 AAAGTCCTGCGAAACTCCATCAGCC, Robo3var2 CGTCTTTATCAGGTAACGCAGCATC, based on the Genebank sequence data AF337036 and AF304131, respectively (Challa et al., 2005); the Gene Tools standard control morpholino was used as control.
From 2 dpf GFP expressing zebrafish, the yolk bag was removed manually with forceps (Dumont 5). The zebrafish head was cut off with forceps at the junction between the spinal cord and the hind brain. The remaining full length spinal cord cut in half, giving rise to two pieces of about equal length. The top (rostral) part was with a pipette transferred to a drop of 0.25% trypsin-EDTA solution and with forceps teared briefly somewhat apart; then transferred to a 1.5 mL Eppendorf tube filled with 0.25% trypsin-EDTA, which had been preheated in a heating block at 31 °C with water-filled sample holders. 2 to 3 spinal cord pieces/tube were used. Digestion was for about 30 minutes and the tubes were manually shaken gently every second minute or so, both to monitor the digestion and to improve the exposure of the spinal cord to the digestion mix. To stop the reaction, one volume defined trypsin inhibitor with 4% final Fetal Calf Serum added was added at room temperature; each digestion mix tube hence doubled in volume to 3 mL (2% final FCS); if several digestions were carried out, they were pooled at this stage. The pooled mix was then promptly poured over first a 40 and then a 20 μm filter to remove large debris. The mix then transferred to 1.5 mL tubes and centrifuged at 380 g, 5 min at 10-20 °C. The supernatant removed, and the pellets one by one resuspended in the same 100 μL PBS at room temperature and analyzed by FlowSight® (amnis®) at medium to high flow rate.
Light-sheet files were typically 0.1-1 terabytes (tb) and were manually trimmed using the Subset function in the used Zeiss Zen (black edition) software (RRID: SCR_013672); if possible, cutting away parts of the x coordinate and the z-coordinate, when containing no information. The z-coordinate was further trimmed so only slices containing the commissural axons (without the cell bodies) were left, as the strong emission from the cell bodies disturbed subsequent processing. For commissural midline studies, a maximum intensity projection (MIP) was then performed, a step that reduces the file size significantly; given that the floor plate is flat and the specimen is transparent there was virtually no visual difference between the MIP projected and the fully trimmed z-stack image file. The obtained MIP file was then used for manual measurement of axonal growth; however, if a specific structure is studied, even higher image quality may be obtained by selecting, at each time point, the best slice of the ROI (exemplified in Fig. 4); if necessary, analysis of the full z-stack slice by slice was used similarly to ascertain that the same axon was followed over time. For three dimensional (3D) display and rendering, files were trimmed further in Imaris® (RRID: SCR_007370; Bitplane®), which was also used to render the live recordings as rotatable 3D live recordings when necessary to ascertain that the same axon was followed over time (e.g. Movie 2 and 3). Igor Pro (RRID: SCR_000325; WaveMetrics®) and Excel (Microsoft®) were used to analyze and plot the neuronal growth data. Movies were made with ImageJ or Fiji (RRID: SCR_003070, RRID: SCR_002285) open-source software (directly on the Zeiss light-sheet czi-format image files, or after first having exported each time point as a full resolution 16 bit Tif file) or Imaris (czi files of the z-stack converted to ims files); motion correction with Stack Reg (ImageJ or Fiji) or drift correction (Imaris). Deconvolution was done on the raw z-stack using the Huygens Software (RRID: SCR_014237) of Scientific Volume Imaging® with their light-sheet (SPIM) software module and auto-wizard generated settings. Stitching of the spinal cord was made using Arivis® or the open-source XuvStitch (RRID: SCR_005894; www.xuvtools.org), giving comparable results; each portion of the spinal cord consisted of about 600 images in a z-stack (both Arivis and XuvStich require the stacks to be stitched to have the same number of z-slices). The stitched image was subsequently reconstructed and analyzed in Imaris using clipping plane and surface reconstruction tools. The FlowSight data were analyzed with the IDEAS® software (amnis). In the morpholino microinjection experiments, the number of midline crossing commissurals was counted manually and the number of midline crossing commissurals/μm length spinal cord used in the statistical test. The angle of growth cone wandering was measured frame by frame using the Graphics options in the Zeiss Zen (black edition) freeware. Statistical tests were two-tailed t-test for two independent population means. Error bars are standard deviations (sdev) except in the midline crossing plot where standard errors of the mean (sem) are displayed.
For the midline crossing plot (Fig. 1b), each axon’s length was measured at each time point and the instantaneous growth rate (y) calculated by comparison with the axon’s length at the immediate previous time point, i.e. △length/△time = (t2 length - t1 length)/(t2 - t1) measured in μm/min, and the physical position (x) of the growth cone on the floor plate at that time point noted. The purpose of using the instantaneous growth rate is to look for variations in the commissural growth rate at as high as possible temporal resolution and then correlate that information with the physical position of the growth cone on the floor plate at that time. The time resolution on the instantaneous growth rate is 60/8 or 7.5 measurement points/hour, given that an image frame was taken every 8th minutes (i.e. △time = t2 - t1 = 8 min). For each calculated instantaneous growth rate (△length/8min), the physical position of the growth cone was expressed by the fraction of the floor plate crossed at the given time. A number between 0 and 1, and the exact midline has then the value of 1/2. The fraction arises by measuring how far the commissural growth cone has grown at the given time point and dividing it by the total distance to cross the floor plate. Hence, a normalization of the total distance grown compared to the total distance to grow, and calculated independently for each neuron. Thus, the N = 11 axons (those shown in Fig. 1a, Movie 1) were analyzed at each 8th minute time point, giving rise to a total of ntot = 101 measurements of instantaneous growth rate (△length/8min), and for each of these 101 time points there was then a corresponding fraction of the floor plate crossed, giving ntot = 101 (x, y) = (fractional crossing, △length/8min) coordinate sets. Regardless of from which axons the growth rates were derived, the 101 (x, y) coordinate sets were sorted according to their growth rate (y) into growth rate bins with a width of 0.1 μm/min (thus with the bins representing growth rate intervals of 0-0.1, 0.1-0.2, 0.2.-0.3, 0.3-0.4, 0.4-0.5, 0.5-0.6, 0.6-0.7, 0.7-0.8, 0.8-0.9 μm/min); the 101 △length/8min growth rate measurements were distributed into the following bins: 0.05 (n = 22), 0.15 (n = 14), 0.25 (n = 22), 0.35 (n = 16), 0.45 (n = 10), 0.55 (n = 9), 0.65 (n = 6), 0.75 (n = 1), 0.85 (n = 1) μm/min (the two bins ‘0.75’ and ‘0.85’ were not used subsequently as these instantaneous growth rates were only observed n = 1 times). For example, if at a particular time a commissural could be observed growing at an instantaneous growth rate (y) of △length/8min = 0.33 μm/min at a normalized fractional midline crossing position (x) of 0.47, this coordinate set would be placed into the y = ‘0.35 μm/min’-bin, used for all coordinate sets having growth rates in the interval between 0.3-0.4 μm/min, and since the bin’s midpoint-value ((0.3 + 0.4) / 2 = 0.35) is used for averaging of the bins growth rate-interval value for the subsequent graphical display (Fig. 1b); here, n = 16 of the total 101 growth rate points were observed to be in this 0.3-0.4 interval. Another example could be a growth rate of y = 0.62 μm/min at a crossing of x = 0.58 which would then be placed in the y = ‘0.65 μm/min’-bin that represents all growth rates observed to be in the interval from 0.6-0.7 μm/min; here, n = 6 of the total 101 growth rate points were observed to be in this 0.6-0.7 interval. Regardless of which of the N = 11 axons the growth rates were derived from, all the 101 (x, y) measurements were this way distributed into their corresponding growth rate bin. Hence, all points in each growth rate bin had an associated normalized fractional midline crossing point (given mentioned 101 (x, y) = (fractional crossing, △length/8min) coordinate sets). Then, in principle, it were possible that growth rates in a given growth rate bin could stem from any fractional midline crossing point, i.e. from any position (x) during the crossing of the floor plate. To test this, for each growth rate bin the average normalized fractional crossing value with sem was then calculated and plotted against the bin △length/min growth rate value (y) (see Fig. 1b); it is seen from the plot that slow growth rates cluster close to the midline, which has the normalized fractional floor plate crossing value (x) of 1/2 (illustrated in the Graphical Abstract in the Appendix, stippled blue line). Hence, growth rates on the floor plate do not vary randomly but tend to be lower near the midline. A quadratic curve fit of the plotted data rendered a fitting polynomial (y = 3.57 - 13.59x + 14.05x2), used to draw the stippled curve in Fig. 1b. Extrema of a defined function can be found by differentiation. Thus, by differentiating the fitting polynomial, it is seen that there is an average minimum in the growth rate △length/min (y) at the normalized fractional floor plate crossing point of x = 0.484, where the midline is at the exact midpoint with a value of 1/2.
In the inserted in Fig. 1b, the location of the midline is now at 0.0. This has been obtained by subtracting 0.5 from the x-values values. Plotted is then the growth rate value (y) versus the absolute x-value, such that this graphical representation does not distinguish whether the growth cone still has a distance left to reach the midline (negative x) or has already crossed the midline and is at a distance away from the midline (positive x).
To obtain live real time in vivo recordings of axons crossing the midline in the zebrafish spinal cord by light-sheet microscopy, a transgenic Tg(dmrt3: GFP) zebrafish that express GFP under control of the dmrt3 promotor was used in this study (Satou et al., 2013). The first observable GFP signal was 10 hours post fertilization (hpf) in the nostral region of the forebrain (Satou et al., 2013), and 13-16 hpf was the earliest time points where a strong GFP signal in the spinal cord could be observed with a regular stereomicroscope and which is just prior to the outgrowth of pioneer axons in the spinal cord (Geldmacher-Voss et al., 2003; Kimmel et al., 1994; Papan and Campos-Ortega, 1994). The strong GFP expression in the spinal cord made it likely that it would be possible to follow early commissural axonal wiring in the spinal cord that begins around 16 hpf (Bernhardt et al., 1990; Drapeau et al., 2002; Kimmel et al., 1994; Kuwada et al., 1990a).
When embryos aged 16-28 hpf were imaged, commissural axons could be observed to cross the floor plate at a growth rate of about 18.1±6.4 μm/h (N = 12 axons in 4 different zebrafish, representing 20.8 h of total axonal growth). It was therefore endeavored to observe the first commissural axons that start crossing the floor plate around 16 hpf. Looking at the ventral midline of the rostral half of the spinal cord, in one embryo and starting about 18 hpf, commissural axons could be observed to utilize around 2 to 4 hours to cross the 55±6 μm wide ventral floor-plate and reach the contralateral side; the average growth rate during this journey was 0.35±0.14 μm/min or about 21±8.4 μm/h (N = 11 axons in 1 zebrafish, representing 18.5 h of total axonal growth; Movie 1, Fig. 1; Movie S1).
Moreover, along the length of the spinal cord, a striking synchrony of commissural axonal pairs crossing the midline with bilateral symmetry in adjacent segments was observed. Hence, on either side of the midline, three pairs of commissurals are seen crossing in temporal synchrony at a rostral-caudal interval of approximately 100 μm (labelled with asterisks in Movie 1, Fig. 1a, starting at t = 48 min). At this early developmental stage, 100 μm is approximately the length of a segment in the rostral spinal cord. To address whether the growth rate of these early commissurals vary during the passage of the floor plate, the growth rate data were analyzed graphically in the Midline crossing plot that reveals an experimental average minimum in the growth rate at a fractional-crossing close to the exact midline crossing point of 1/2 (Fig. 1b, derived in section 2.6; Movie 1). In the vicinity of the midline choice point, growth cones appear to become bigger in cross sectional area as compared to before the midline. The decreased growth rate and increase in size are seen to be reversible (Fig. 1b, Movie 1).
Real-time observations showing commissural axons crossing the midline in temporal and spatial synchrony (see accompanying Movie 1, 2 and 3). a) Left, commissural axons at three different points (each (1-3) marked by an asterisk (*), t = 48 min) start crossing simultaneously at 18 hpf from either side of the floor plate (Movie 1); right, the commissurals have reached the midline (growth cones of the three commissural pairs are marked by six arrows, t = 2 h); the compass shows spatial directions and Rostral (R) is towards the bottom, Caudal (C) top, Dorsal (D) is above (⊙) and Ventral (V) below ($\otimes$) the field of view, bar 50 μm. (Movie 1). b) Midline crossing plot (derived in section 2.6), quantifying that the midline crossing commissural axons (shown in (a), Movie 1) tend to grow slower in the area close to the midline (N = 11 axons in 1 zebrafish, errors are sem); illustrated by the stippled quadratic trendline, indicated as a guide for the eye, suggesting a minimum growth rate very close to the exact floor plate midline (located in the plot at the fractional floor plate crossing point of 0.5). Insert: the same data, here plotted as the growth cone speed against the absolute fractional distance to the midline. Thus, the midline is here located at x = 0; the stippled linear trendline is indicated as a guide for the eye; this representation also illustrates that the commissural axons tend to have a slower growth rate in the vicinity of the midline (Movie 1).
After crossing the floor plate, some commissural axons could be followed further (Movie 2 and 3; Fig. 2). At the contralateral site, these axons could be observed ascending with spatio-temporal synchrony at an oblique asymptotic angle in three adjacent segments of the spinal cord, most likely toward the dorsal longitudinal fasciculus (DLF) (Movie 2; Fig. 2a1-a3, three arrows). These same three commissurals may be distinguished during growth on the floor plate itself (Movie 3; Fig. 2b, three arrowheads). The noticeable rostral-caudal temporal shift in the synchrony is consistent with the rostral-to-caudal gradient of developmental progression (Movie 2, Fig. 2; a slight rostral-caudal temporal shift is also noticeable for the commissurals in Movie 1).

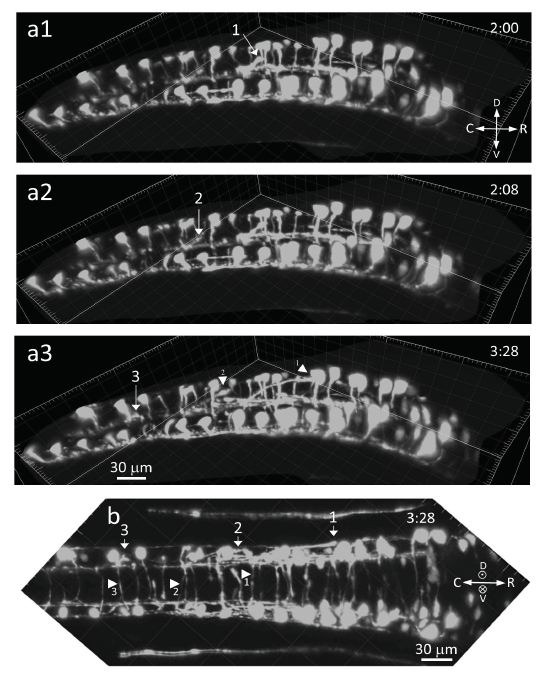

After crossing the floor plate, obliquely ascending axonal growth contralaterally (28 hpf; see accompanying Movie 2 and 3). a1-a3) Having crossed the floor plate, three commissurals (indicated by arrows 1-3) are seen ascending at an oblique asymptotic angle in three different segments and with both spatial and temporal synchrony, most likely to join the dorsal longitudinal fasciculus (DLF), compass shows rostral (R) is to the right, time in hours:min in right corner, bar 30 μm, (Movie 2). b) Same recording as in a1-a3 (dorsal (D) is above (⊙) the field of view), where these 3 axons (arrows 1-3) are seen having crossed the floor plate (their shafts are indicated by the tip of arrowheads 1-3, all pointing to the right; correspondence was ascertained by rotatable 3D live rendering), compass shows directions, bar 30 μm, (Movie 2 and 3).
In the presented movies, the dorsal GFP-expressing cell bodies have been removed from the display because their intense GFP staining interferes with observations of the growing axons on the ventral floor plate. To illustrate this, Movie S2 shows an example with cell bodies. The axon starts growing out from the dorsally located cell body down in the ventral direction toward the ventral floor plate. Then crosses the ventral floor plate and on the contralateral side turns to join most likely the DLF (Movie S2).
Interestingly, almost no guidance errors were observed in the recordings in this study from more than 10 different zebrafish, representing more than 100 axons. An error is here defined as a growth cone straying at least 10 μm off, measured orthogonally, the normal pathway (Hutson and Chien, 2002). Hence, in the recordings in this study it was never observed that a commissural axon would commence an ipsilateral path, for then to correct it as an error, and continue with a midline crossing growth path across the ventral floor plate. In converse, but only on one occasion and that in the future hindbrain, an ipsilateral axon was observed growing towards the floor plate midline as if a commissural (Movie S3a and S3b), for then to correct its path by rapidly shrinking back upon reaching the midline and continue the correct caudally directed ipsilateral path, most likely towards the medial longitudinal fasciculus (MLF; Bernhardt et al., 1990; Drapeau et al., 2002; Kimmel et al., 1994; Kuwada et al., 1990a). These observations suggest that axonal guidance errors of this magnitude (Hutson and Chien, 2002) are extremely rare events during the observed stereotyped spinal cord wiring in vivo, that is, spinal cord wiring seems error-free.
The light-sheet technique enables high resolution acquisition along many hundred microns long regions that may then be viewed at variable zoom rates to display different information, such as the spatio-temporal synchrony at moderate zoom shown in Movie 1, 2 and 3. At higher zoom (Movie 4, 5 and 6; unlabeled Movie S4, S5 and S6, Movie S7; Fig. 3 and 4), transiently slowing down and increasing the growth cone size was observed to be a generic guidance response of the commissurals. Not just as observed at the midline guidance point of the ventral floor plate (Movie 1, Fig. 1b) but also at the contralateral guidance point (Movie 4 labels N1 (midline) and N2 (contralateral); Fig. 3).

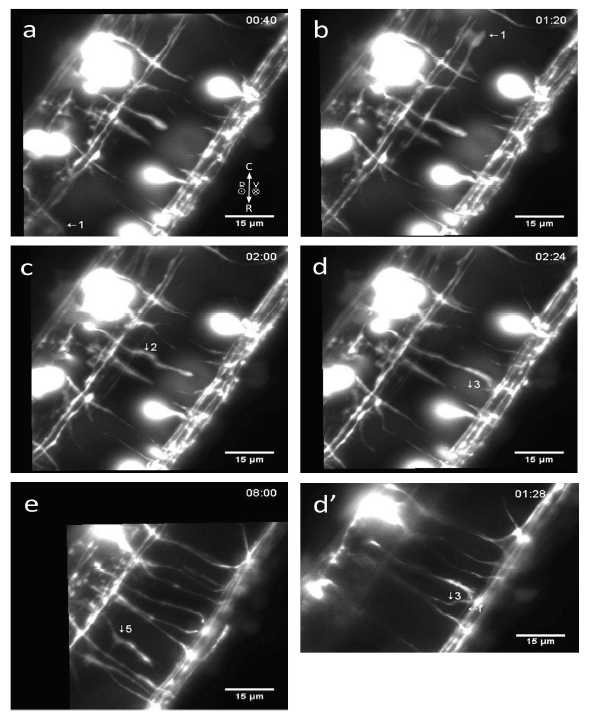

Filopodia dynamics and growth paths of three midline commisurals and one ipsilateral axon (see accompanying Movie 4). Here, the already high-resolution raw light-sheet image recordings have been deconvolved, improving the resolution from about 800 to 600 nm, estimated by a full-width half maximum (FWHM) measurement of the Gaussian signal, as well as the signal-to-noise ratio. a-d) N1, cross from the contralateral side toward the viewer, then turns right (caudally); N2, cross the floor plate, then bifurcates on the contralateral side (at N2 in d it has already bifurcated); N3, this axon wraps around the ipsilateral axonal bundle (on the ipsilateral side) on the outside, for then to make a sharp turn onto the floor plate and cross to the contralateral side; *, marks the growth cone of an ipsilateral axon that in Movie 4, at t = 4 h 19 min, can be seen extending fast rostral to caudal at the level of the contralateral ventral floor plate. Time in hours:min in right corner, compass shows directions, bar 10 μm (Movie 4).
Commissural axonal shafts and filopodia display bidirectional dynamics during floor plate crossing (see accompanying Movie 5 and 6). a-b) 1, an ipsilateral axon is here followed for 40 min showing no shaft bends; c-e) four examples of commissural sinusoidal-shaped shaft bends (labels 2-5; 4 occurs on the same shaft as 2 and is only marked in the accompanying Movie 5, starting at t = 5 h 44 min; Movie 5); d’) This is the same area and recording as image d), showing how the filopodia (f) from the growth cone of 2 collides with a neighboring shaft 3 and appears to cause it to bend. Time in hours:min in right corner, compass shows directions, bar 15 μm. The difference in resolution between d) and d’) is caused by different image handling. Hence, image (d) is a MIP of stacks (just as Movie 5) whereas (d’) (Movie 6) only shows the one single slice-plane (0.2 μm thick) of the stack where the object to observe (label 3) was clearest. As can be seen, the latter display option, while having better resolution by removing unwanted signal, has the drawback that the usable field of view is significantly decreased. The small arrows inserted in Movie 1 (e.g. at t = 3 h 20 min - 3 h 52 min, middle) are pointing at other examples of occurrences of sinusoidal-shaped shaft bends; they look smaller in magnitude than in Movie 5 and 6 because the zoom magnification is smaller in Movie 1. In actual size, the small arrows inserted in Movie 1 are twice as big as the arrows used in Movie 5 and 6.
When axons are growing, the path of their growth cones often deviate slightly from that of a straight line which was also observed clearly in this study at the higher zoom. To quantify this wandering, or searching, the absolute angle made, at each time point, between a commissural growth cone and the straight line connecting the growth cone’s starting to its ending position (the straight path) was measured. This gave a wandering variation of (7.23°±6.17°)/8 min that appeared random (n = 268 time points of 8 minutes, measured on N = 18 axons in 4 different zebrafish, representing 34 h of commissural growth). The investigator induced error on this angle measurement was estimated empirically to around 1.22±0.75° (n = 14). Because all labelling is monochromatic green (GFP) in this study, the ipsilateral population of axons was not evident to follow at low magnification. At the higher zoom, they could be observed to grow at around 69.6±20.7 μm/h (N = 13 axons in 6 different zebrafish, representing 28.3 h of total axonal growth) and some were even observed to grow as fast as 120 μm/h (Movie S8). Hence, ipsilateral axons appear to extend about three to six times faster than the commissural axons (Movie 4, 5, S8; Fig. 3 and 4). The ipsilateral axonal growth cones, in comparison with the commissurals, grow straight with little wandering of (3.71°±3.83°)/8 min (n = 136 points, measured on N = 8 axons in 4 zebrafish, representing 21.4 h of total axonal growth), also considering their three to six times higher growth rates. The few abrupt changes observed in the ipsilateral growth cone direction seemed not random but caused by encountered obstacles (e.g. shafts of axons growing from the dorsal cell body towards the ventral floor plate). The wandering behavior is an intrinsic property of advancing growth cones and a read-out of the growth cone angle is obtainable at each time point. Thus, even if the image acquisition frequency was increased, giving higher time resolution, these growth cone wandering angle estimates would likely not change.
Interestingly, the commissural shafts could often be observed making localized sinusoidal-shaped bending movements on the floor plate, both during and after crossing (Movie 5 and 6, Fig. 4). They appear from the recordings to be mostly caused by the stochastic transient actions of filopodia emanating from neighboring growth cones that are visible at higher zoom and having lengths of up to more than 10 μm and which are very responsive to the environment; the filopodia seems to collide transiently with shafts in the vicinity, and appear thereby to cause a local and reversible displacement of the shaft in the direction of the growth cone of the colliding filopodia, and appear thereby to cause the observed transient shaft bends (Movie 5 and 6, Fig. 4), as also proposed by Moon and Gomez (2005). These transient bends are not, unlike growth cone wandering, caused by intrinsic properties of the axons. Therefore, quantifying the occurrence of shaft bends is strongly dependent on the image acquisition frequency. A higher image acquisition rate will increase the probability of observing the bends. At the used acquisition rate, an estimate of (0.13±0.14)/8 min axonal shaft bends per axon was obtained (n = 235 time points, N = 16 axons in 3 different zebrafish). Representing about 1±1 commissural axonal shaft bends per hour per commissural axon. Looking at the complementary scenario of a filopodia from an observed growth cone making contact with and apparently causing the bend of a neighboring commissural shaft, an occurrence of (0.044±0.081)/8 min contact-bending events were measured (Movie 5 and 6, labels 2, 3 and f; Fig. 4d, d’); or approximately 1 contact-bending event every 3 hours±1.7 hours per commissural axon. This is a three times lower frequency than aforementioned axonal shaft-bending frequency. That is to be expected because the GFP-labelled neurons are a minor fraction of all growing commissural and ipsilateral axons. Hence, only GFP-labelled filopodia are visible in this study whereas all growth cone filopodia may potentially cause bending of neighboring shafts.
While the ipsilateral growth cones also had long filopodia, they appeared more collected than their commissural counterparts. From the obtained recordings, the ipsilateral shafts did not seem to display noticeable sinusoidal-shaped bending movements (Movie 2, 3, 4, 5, 6 and S8).
Obtaining in vivo recordings by light-sheet microscopy of commissural axons crossing the spinal cord midline at the floor plate was the primary rationale for this study. However, the accompanying important questions of molecules regulating guidance were considered, also to probe technically, whether it would be feasible to use molecularly perturbed zebrafish for these in vivo light-sheet experiments. Robo3 receptors were knocked down by conventional translation blocking morpholino antisense techniques. Morpholinos were chosen because they have already been applied to knock down Robo3 in zebrafish. Phenotypes for both Robo3 mutant zebrafish and translation blocking morpholino treated zebrafish have been reported (Burgess et al., 2009; Challa et al., 2005). In the Robo3 morpholino treated spinal cords, the number of commissurals per micrometer spinal cord that were observed to cross the floor plate was significantly reduced compared with the control (Fig. S1b, P < 0.01), in accord with previous data (Burgess et al., 2009). As expected, the real time observations showed that the commissural axons appeared to be avoiding the midline region of the ventral floor plate whereas ipsilaterally projecting axons were not affected (Movie S9). These results show light-sheet microscopy can be applied for in vivo studies of molecularly perturbed zebrafish. However, following microinjections, a general cumbersome reduction in the number of both healthy and strongly GFP expressing zebrafish embryos and larvae was observed. Indeed, it would be timely to shift from morpholinos, affecting the whole embryo, to less toxic and more precise cell-specific gene editing tools such as the CRISPR-cas systems, as discussed by e.g. Rojo et al. (2018) and Schulte-Merker and Stainier (2014).
To address whether the commissurals consist of molecularly distinct axons, specific neuronal markers need to be generated, which could be accomplished by isolating individual neurons from the spinal cord. To that end, the rostral most half of the spinal cord was first digested with 0.25% trypsin until a suspension of individual single cells was obtained. By FlowSight, each individual cell in the cell suspension was then imaged while flowing past a camera (Figure S1c, Appendix). This single-cell approach may then be aimed at a subsequent single-cell omics analysis (Zeisel et al., 2015) of a specific GFP-labelled neuronal population.
Finally seeing both in vivo and in real time the simultaneous commissural midline crossing events over extended lengths of the spinal cord is illuminating. In particular noticeable is the stereotyped spatio-temporal commissural growth synchrony (Movie 1, 2 and 3). The movies show the type of live organismal scale data that can be obtained by applying light-sheet microscopy and the zebrafish model system to the study of cellular developmental neurobiology.
A minimum in commissural growth rate was observed very close to the midline (Fig. 1b; Graphical Abstract in Appendix; Movie 1, 2 and 3). A decrease in growth rate is expected at a choice point (Andersen, 2005; Bonner et al., 2012; Goodhill, 2016; Michalski et al., 2013; Rosoff et al., 2004). At the midline, both a decrease in growth rate and an increase in growth cone size have been reported previously (Bak and Fraser, 2003; Mason and Wang, 1997; Moon and Gomez, 2005; Myers and Bastiani, 1993b). Confirming previous reports, Robo3 is shown here to be a positive guidance factor for commissural axons; ipsilateral axons, as expected, appear guided independently of Robo3 (Fig. S1b, Movie S9). How ipsilateral axons are guided remain an open question that is considerably less studied than commissural guidance. A plausible role for diffusible ipsilateral cues derives from recent data (Kastenhuber et al., 2009; Kim et al., 2014; Paixão et al., 2013; Sakai and Kaprielian, 2012; Schweitzer et al., 2013).
Earlier static wiring studies classified the commissurals based on morphology. Thus, the CoPA (Commissural Primary Ascending) are here the commissural axons observed crossing perpendicular to the midline (Movie 1 and 2), and continuing an ascending growth at an oblique angle toward the DLF on the contralateral side (Movie 2). The CoSA (Commissural Secondary Ascending) are seen crossing the floor plate later (Movie 2 and Move 3). In Movie 4, axon N2 bifurcates upon reaching the contralateral side, identifying it as a commissural bifurcating longitudinal (CoBL, Hale et al. (2001); Fig. 3a-d). A minor population crossing the midline obliquely at 1-1.5 dpf, and slightly more dorsally, may likely be identified as Commissural Local (CoLo) interneurons (data not shown; Satou et al., 2009; Shah et al., 2015).
An elucidation of the full wiring paths and origins (e.g. some axons may originate from the developing brain (Movie S3a and S3b) and not the spinal cord), synaptic partners and functions of the axons studied here require more experiments. A significant step forward in that characterization will be the establishment of specific molecular neuronal markers. This may be accomplished by applying single cell analysis (Zeisel et al., 2015) of the FP-labelled neurons as illustrated and initiated here by the single cell FlowSight® experiments (Fig. S1c). A number of FP-spinal cord neuronal transgenic zebrafish lines have been described already (Satou et al., 2013), and the single cell approach may be applied to all spinal cord neurons to gain further knowledge about their specific localization, properties and functions. In comparison, for example, a fixed number of three primary motoneurons per hemisegment have been described (CaP, MiP, RoP; Lewis and Eisen, 2003).
The mechanism of axonal pathfinding is commonly described by growth cones’ ability to sense gradients of diffusible guidance cues in the environment. At the midline, a switch in growth cone responsiveness to gradients is explained by a change in growth cone surface receptor expression. Earlier, though, axonal pathfinding was described mediated by substrate-bound molecules, which are a common guidance mechanism for migrating cells (reviewed and investigated by Akin and Zipursky, 2016; Batlle and Wilkinson, 2012; Bernhardt et al., 1992; Bovolenta and Dodd, 1990; Brose et al., 1999; Chédotal, 2019; de Ramon Francàs et al., 2017; Kidd et al., 1999; Kolodkin and Tessier-Lavigne, 2011; Lentz et al., 1997; Mai et al., 2009; Moore et al., 2012; Stoeckli and Landmesser, 1995; Tanaka and Kirschner, 1995; Tessier-Lavigne and Goodman, 1996).
In this study, the striking stereotyped spatio-temporal wiring suggests, without providing direct evidence, that growth cones in the zebrafish spinal cord find their path by following predetermined substrate-bound tracks in the environment. Hence, though disregarding that there perhaps occur corrections of guidance errors of a smaller magnitude than the here defined 10 μm type (Hutson and Chien, 2002), the very fast stereotyped and error-free wiring in many segments would seem easiest to accomplish if the growth cones were following corridors of substrate-bound cues (i.e. short-range cues) rather than gradients of diffusible cues (i.e. long-range cues). For example, the three different stereotyped tracks of a): the obliquely ascending axons joining the DLF (Movie 2), b): the canonical commissurals crossing perpendicular to the midline (Movie 1 and 3) and c): all the ipsilateral axons, would otherwise require three different intermingled gradients to be set up by yet other cells that would need to be present at precise spatial locations to generate the three different spatial gradients of guidance cues. Additionally, erroneous midline crossings, corrected subsequently to ipsilateral growth, were never observed in the spinal cord. This indicates an underlying error-free process that likely could be accomplished by stereotyped corridors of growth. This discussion on stereotypical guidance concerns the mechanism by which it is achieved, since it unarguably is occurring in vivo. Indeed, zebrafish resemble each other generation after generation, which is proof of a stereotypical process, in some cases even down to details observed at the microscopic level, as recently reported for the processes leading to the emergence of patterned neuronal population activity in the developing zebrafish spinal cord (Wan et al., 2019).
Recent and older data from other investigators also point to the importance of substrate-bound guidance mechanism. Substrates (e.g. NrCAM, laminin) are known to have a dramatic impact on axonal growth (Andersen, 2001; Lentz et al., 1997; Stoeckli and Landmesser, 1995; Stoeckli et al., 1997; Tanaka and Kirschner, 1995). In the mammalian forebrain, commissural midline crossing requires a transient population of midline glial cells (reviewed in Comer et al., 2015). Akin and Zipursky (2016) reported for the wiring of the Drosophila R8 photoreceptor cells that while a gradient of substrate-bound netrin was observed, netrin-DCC was not required for R8 chemoattraction but was found to be required for the R8 axon to remain attached to its final target. Both Slit and netrin are possibly in vivo presented to the axons in a co-localized substrate-bound form rather than as freely diffusible ligands (Akin and Zipursky, 2016; Brankatschk and Dickson, 2006; Brose et al., 1999; Kidd et al., 1999; Zelina et al., 2014). Indeed, physical attachment of netrin to a substrate seems important for its ability to induce an attractive response via the DCC receptor (Endo et al., 2016; Moore et al., 2012).
Hence, whether growth cones are explained to be guided by gradients of diffusible cues (i.e. long-range cues) or by substrate-bound corridors of growth (i.e. short-range cues) may in part be a question of semantics; likely of minor importance for the cellular mechanisms of axon guidance in vivo (also discussed by Akin and Zipursky, 2016), but probably of importance for setting up and organizing axon guidance at an organismal scale in a 3D in vivo environment. Thus, the various ligands may well be substrate-bound in vivo (i.e. are membrane-bound, reviewed by Stoeckli and Landmesser, 1995). However, gradients of ligands are still involved in vivo, and in vitro experiments have demonstrated clearly that gradients of diffusible cues can guide axons in vitro. Nevertheless, in vitro experiments represent non-physiological conditions that may not properly mimic and cannot substitute for a 3D in vivo environment (reviewed in Aberle, 2019; de Ramon Francàs et al., 2017; Endo et al., 2016; Kolodkin and Tessier-Lavigne, 2011).
The commissural axons avoid each other on the floor plate. The recordings suggest the avoidance is mediated by the growth cones’ filopodia, which seem to serve as a steering device that appears to act repulsively by avoiding prolonged interactions when colliding with neighboring axonal shafts in the vicinity. However, upon reaching the DLF at the contralateral side, the axons will eventually fasciculate. What mediates this shift from avoidance to fasciculation upon floor plate crossing remains unknown, though similar observations were reported earlier (Bak and Fraser, 2003; Drapeau et al., 2002; Michalski et al., 2013; Moon and Gomez, 2005; Myers and Bastiani, 1993a, b). Axonal fasciculation and peripheral synapse formation likely could be analyzed further in vivo with this nanometer-resolution light-sheet approach.
The sinusoidal-shaped shaft-bendings illustrate how wobbly the entire network is at this stage of development. The movies strongly suggest a direct role for filopodia in inducing these reversible bends. A previous study using fixed Xenopus spinal cords also reported commissural shaft bends and proposed similarly that they are caused by filopodia interactions (Mason and Wang, 1997; Moon and Gomez, 2005).
A second shaft-bending mechanism appears likely, based on some of the recordings. Notably at guidance points, namely, for example when the axons reach the contralateral side, the growth cones sometimes stall as if loosing traction and the trailing shaft is then observed to bend (e.g. Movie 4 label N2 and N3). The shafts of growing axons have been reported to be under pulling tension by being stretched out like an elastic band by advancing growth cones. Hence, it seems possible that the observed bends to some extent could be caused also by the advancing growth cones losing traction temporarily, thereby releasing the pulling tension on the shaft that would then bend like a relaxed elastic band (Athamneh et al., 2015; Athamneh and Suter, 2015; Holland et al., 2015; Mota and Herculano-Houzel, 2012; O'Toole et al., 2008).
In contrast, the ipsilateral axons were not seen making sinusoidal-shaped bends in the available recordings. Their fast growth rates increase pulling tension on the shafts, which may change their flexural rigidity as compared with that of the commissural shafts; also, the ipsilateral growth cones did not seem to stall at any point. Perhaps because they are growing in a substrate-bound corridor of growth and have less guidance information to interpret as compared to commissural axons crossing the floor plate. Moreover, ipsilateral axons appeared in the movies to have few neighboring growth cones with filopodia that could collide with them.
It appears likely that the observed bends of the commissural shafts may be caused both by temporary loss of growth cone traction and by random collisions of filopodia from neighboring growth cones.
An understanding of the many functions and facets of neuronal networks in vivo requires an investigation of the mechanisms of network formation and a physical mapping of the networks. However, current understanding remains to a significant extent based on in vitro data, and it is well known that in vitro experiments may not reflect in vivo processes, only being a projection of what could, and actually often does, occur in vivo. (Andersen, 2005; Denk et al., 2012; Goodhill, 2016; Hildebrand et al., 2017; Mai et al., 2009; Nicol et al., 2011; Rosoff et al., 2004; Yuan et al., 2003).
The live recordings obtained in this study are in vivo observations that are not prone to in vitro artefacts, although transgenic FP-lines should be applied with caution as they are not completely equivalent to their wild-type counterparts (Lipták et al., 2019). By applying the transparent zebrafish in combination with the light-sheet platform, cell-type specific gene modification and single cell analysis, in vivo analyses of neuronal wiring are within experimental reach.
S. Andersen conceived, performed, analyzed and published this study from 2015 to 2019 to gain insights into the growth and guidance of midline crossing axons in the zebrafish spinal cord.
An autumn 2015 Methods for Cell Analysis (MCA) course at BioVis presented S. Andersen to methods available at BioVis, including FlowSight and light-sheet microscopy, and S. Andersen is very thankful to the BioVis staff M. Molnar, S. Petersson, D. Pacholsky and J. Adler for continuous competent and crucial technical support, discussions and equipment without which this study would not have been possible. The experiments in this paper were performed subsequently at SciLifeLab Biovis from 2015 to 2016, and made possible due to a simultaneous joint funding initiative between SciLifeLab Biovis and the SciLifeLab Zebrafish Technology Facility at EBC to further light-sheet microscopy for zebrafish research. Thanks to the SciLifeLab Zebrafish Technology Facility staff for caretaking of the zebrafish throughout the experiments.
The study received financial support from Uppsala University and SciLifeLab. Thanks to S.-I. Higashijima who had kindly provided H. Boije at the Department of Neuroscience with the dmrt3-gfp zebrafish used in this study. H. Boije had procured funding from Beijerstiftelsen, to unravel the formation and function of the neuronal network constituting the locomotor central pattern generator (CPG) of the zebrafish spinal cord, which was converted in part to stipends, and during the study reported herein S. Andersen was supported for one year by such Beijerstiftelsen stipend while at Uppsala University from 2015 to 2016.
Thanks to R. Francis, J. Jonsson, S. Edwards, 0. Fika, G. do Nacimiento, B. Aresh, P. Verveer, S. Perry, G. Alavioon, M. Hilscher, F. Freitag, C. Nagaraja, C. Restrepo, K. E. Wennström, L. Shen and G. Khodus for help and discussions.
The author declares no competing financial interests.
Real time in vivo observations of midline crossing axons
Graphical abstract
Developmental events just prior to midline crossing. The events in this movie (Movie S1) are just prior in development to the outgrowth of the spinal cord axons shown in Movie 1. The recordings confirm previous accounts using antibody stained micrometer thick serial sections, widefield and confocal microscopy (Buckley et al., 2013; Geldmacher-Voss et al., 2003; Kimmel et al., 1994; Papan and Campos-Ortega, 1994), and demonstrate the versatility of the light-sheet microscopy, as a complement to confocal microscopy, also for studies of this kind. No cell divisions were observed during these recordings (Buckley et al., 2013); the divisions would be occurring at the apical side of the epithelium, wherefore the daughter cell would easily become located on the other side of the midline by division across the midline in a so-called C-division, for midline Crossing division (Buckley et al., 2013; Cearns et al., 2016; Kimmel et al., 1994; Papan and Campos-Ortega, 1994). The nascent neuronal cell bodies are seen moving and aligning bilaterally along the midline (Movie S1). The apical sides of the cells are facing the midline, forming a neuroepithelium on either side of the midline, each held together by adherence junctions between the cells. Starting rostrally/anteriorly (to the right), the cells are then observed retracting from the midline, displacing to more lateral levels and with the concomitant opening up of a lumen. Forming thereby the future neurocoel, an event that has been staged to begin at the 17-18 somite stage (Papan and Campos-Ortega, 1994).

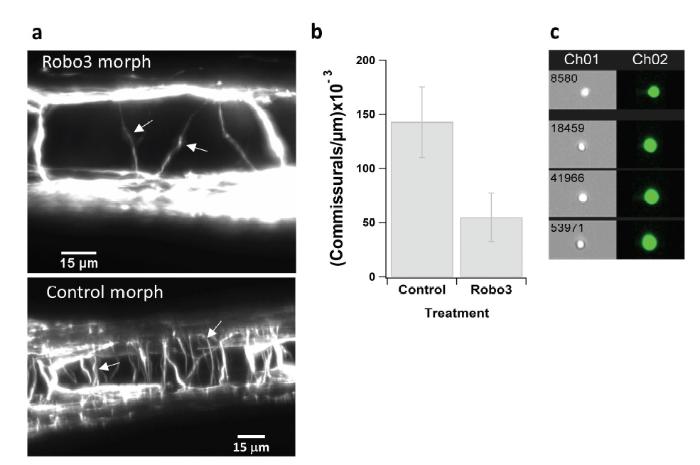

Robo3 Morpholino knock-down and single cell analysis. a, b) Commissural floor plate crossing is dependent on Robo31(1Robo3 has been portrayed as a major midline guidance component. Permitting approach of commissural axons toward the midline and preventing re-crossing once the midline crossed, by regulating somehow the Robo1 and Robo2 receptor activities (Brose et al., 1999; Chen et al., 2008; Friocourt and Chedotal, 2017; Hutson and Chien, 2002; Jaworski et al., 2010; Jaworski et al., 2015; Murray and Whitington, 1999; Wang et al., 1999; Zelina et al., 2014).): (a) Top, residual commissurals observed remaining following the Robo3 morpholino treatment (at 3 dpf; see also Movie S9), arrows mark examples, bar 15 μm; bottom, commissurals in a Control morpholino fish (at 5 dpf), arrows mark examples, bar 15 μm. (b) Quantification of the experiment in (a), showing that the number of commissural axons observed to cross the floor plate per μm spinal cord length following morpholino knock-down of Robo31 is significantly reduced (Robo3) (0.0549±0.0224; Morpholino at a total of 4-8 ng/embryo, either only Robo3var2 (the mouse Rig-1 orthologue) or a 1 : 1 mix of Robo3var2 + Robo3var1) compared with the Control morpholino (0.1427±0.032; at 8 ng/embryo) (t-test, P < 0.01); the accumulated spinal cord length counted for these estimates was 2383 μm for the Robo3 treatment (n = 4 different zebrafish), and 833 μm for the control (n = 3). c) From single-cell FlowSight analysis of dissociation of the spinal cord into single cells, as described in materials and methods, showing examples of the obtained single GFP-positive cell bodies; Ch01 is brightfield, Ch02 is GFP at 488 nm.
