The soybean cultivar, Williams82, was cultivated at Northeast Forestry University Harbin, China, in a greenhouse under (26 °C, light 14 hours/dark 10 hours) growth conditions. Different parts of the 14-day-old plant were collected, such as the meristem region, unifoliate leaves, epicotyl, hypocotyl, and roots. Each sample had three separate replicas frozen in liquid nitrogen. Total RNA was isolated with Eastep® Super (Promega Beijing) according to the manufacturer’s instructions. A Nanophotomoter Spectrophotometer was used to measure total RNA’s amount and accuracy (Implen, Munich, Germany). A. thaliana, G. max, and O. sativawhole-genome and amino acid sequences were derived from the JGI Phytozome (https://phytozome.jgi.doe.gov/pz/portal.html) and Ensemble databases (http://plants.ensembl.org/index.html).

The ARF and AUX/IAA gene family information was collected using the TAIR database (https://www.arabidopsis.org/) for A. thaliana. The JGI Phytozome website was used (https://phytozome.jgi.doe.gov/pz/portal.html) to compare the homology of amino acids, candidate soybean ARF, and AUX/IAA proteins with high homologous correlation with A. thaliana ARF and AUX/IAA proteins. In addition, the ARF and AUX/IAA genes were identified and assigned specific names via the NCBI database Blastp feature. The biochemistry of each ARF and AUX/IAA protein, including the number of amino acids, isoelectric point (pI), and molecular weight (MW) parameter, was determined using the online ExPASy software (https://www.expasy.org/) [30].

The amino acid sequences of ARFs and AUX/IAA proteins from G. max, A. thaliana, and O. sativa were selected to test the most suitable model using the “find best DNA/protein models (ML)” tool in MEGA 10.0 software (https://www.megasoftware.net/) to construct a maximum likelihood model. The robustness of each tree node was calculated using 1000 bootstrap replicates, with default remaining parameters [31].

To illustrate the exon-intron structure map and coding sequences (CDS) structure of GmARF-IAAs genes, the GENE Structure Display (GSDS 2.0) website (http://gsds.gao-lab.org/) was used to upload the genomic sequence and coding sequences with FASTA format to generate the gene structure. The MEME website (http://meme-suite.org/) was used to analyzed the soybean ARF and AUX/IAA proteins conserved motif using the classic mode to discover motifs on protein datasets. The generated preserved motif files are visualized with TBtools software (version 1.055) [32]. The TBtools Batch SMART plug-in links to the SMART website (http://smart.embl-heidelberg.de/), was used to determine whether there was an ARF and AUX/IAA domain in the candidate genes ARF and AUX/IAA [33].

The chromosome mapping data was acquired from the NCBI database of ARFs and AUX/IAA gene families. The chromosome mapping map was drawn with Map chart software [34]. The collinear relationship of the gene families of ARF-AUX/IAA was analyzed using MCScanx and TBtools software to further elaborate and identify orthologous and paralogous genes in the replication events of the ARFs and AUX/IAA gene families.

The 2000 bp genomic sequences upstream of the transcription start site (TSS) of the ARF and AUX/IAA gene families were extracted from the NCBI database, and the PlantCARE website analyzed the cis-acting elements in the promoter region (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) [35].

The expression results were obtained through high-throughput transcriptome sequencing, and the sequencing platform was Illumina Hiseq2500 from Shanghai Biozeron Biological Technology Co., Ltd. Each sample produces 6.0-Gb sequencing data with a reading length of 150 bp, sequenced by double-terminal (PE) sequencing. Post-trimming readings have been aligned with the reference genome of G. max (Phytozome v11.0, https://phytozome.jgi.doe.gov/pz/portal.html accessed on 16 July 2016). The soybean transcriptome dataset (accession number: SRP038111) was uploaded to the Sequence Read Archive (SRA) database of the National Center for Biotechnology Information (NCBI). The data used in the chart are the TPM values commonly used in transcriptome analysis for tissue specificity analysis and the expression of ARF and AUX/IAA gene families in different regions of the plants. Mapping these RNA-seq reads was done with the default settings using TBtools (version 1.055). Using the TPM algorithm, quantification of gene expression was performed. A clustered heatmap of the resulting TPM values for ARF and AUX/IAA per tissue was generated using the TBtools heatmap function (version 1.055). TPM data Logarithm, set base = 2 and log with = 1, and rows of clustered

The interaction networks of GmARFs and GmAux/IAAs were identified based on an orthologous-based method using the AraNetV2 (http://www.inetbio.org/aranet/) and the STRING (http://string-db.org/) databases, and the predicted interaction network was displayed using Cytoscape software. To model the three-dimensional structural homology of the spatial protein model of the GmARF/IAA gene family of soybean, we utilized SWISS-MODEL (https://swissmodel.expasy.org/interactive) supplied by the web software ExPaSy [30]. The stereo-chemical quality of each gene model was further assessed using a Ramachandran plot, which calculates structural error at each residue in the protein [36].

To identify the GmARF-IAAs gene family members in the soybean genome, the A. thaliana and O. sativa ARF-IAAs gene families were used as queries. We found the homologous soybean genes of each GmARF-IAAs using BLASTP against the NCBI database; a total of 51 GmARFs, consistent with earlier reports [29], and 63 GmIAAs genes were revealed. The proteome of soybeans was also utilized to look for HMM (Hidden Markov Model) profiles. According to their position on chromosomes, the genes were named GmARF1~GmARF51 and GmIAA1~GmIAA63, respectively. Comparative analysis of the ARF-IAAs genes revealed that in A. thaliana (ARF:23, IAA:29) and O. sativa (ARF:25, IAA:31) genes are present, but the amount of ARF:51 and IAA:63 in G. max is significantly higher than that in A. thaliana and O. sativa. The open reading frame lengths of the GmARF-IAA genes ranged from 173 to 531 amino acids, with projected PI of 4.82 to 9.48 and MWs of 19.52 to 56.83 kDa for the resulting proteins. Moreover, the number of exon and protein localization is shown in Supplementary Tables 1,2.

To further examine the evolutionary relationships in the ARF-IAAs genes, the amino acid sequences of ARFs and IAAs proteins from G. max, A. thaliana, and O. sativa were utilized in phylogenetic Maximum Likelihood trees. The gene IDs and names of ARF-IAAs genes in O. sativa and A. thaliana are shown in Supplementary Tables 3,4. A total of 99 ARFs from these three species were grouped into three subgroups (I-V) based on branching characteristics and bootstrap values of phylogenetic trees, comprising 51 GmARFs, 23 AtARFs, and 25 OsARFs (Fig. 1A). A total of 123 IAAs from these three species were clustered into seven subgroups (I–VII), including 63 GmIAAs, 29 AtIAAs, and 31 OsIAAs(Fig. 1B). The analysis shows that GmARF21 is phylogenetically close to AtARF19, while GmARF15 is phylogenetically close to AtARF9, and GmIAA39, GmIAA60 are phylogenetically close to AtIAA32, AtIAA34. Furthermore, GmIAA15, GmIAA18 are phylogenetically close to AtIAA29. There may be similarities in gene structure, protein structure, and functional domain among the same group of genes ARFs, and IAAs in A. thaliana and G. max (Fig. 1). The phylogenetic study revealed homology between A. thaliana, O. sativa, and G. max; moreover, the homology is greater in ARFs than in IAAs, suggesting that ARFs have been more conserved in evolution.

Fig. 1.

Phylogenetic relationships of the ARFs-IAAs among G. max, A. thaliana, and O. sativa. (A) ARFs and (B) IAAs. The neighbor-joining (NJ) method was used to create a phylogenetic tree utilizing the entire full-length amino acid sequences of G. max (GmARF-IAAs), A. thaliana (AtARF-IAAs), and O. sativa (OsARF-IAAs) genes, aligned to MUSCLE and MEGA (v7.0). The groups I–V in GmARFs genes and I–VII in GmIAAs genes are distinguished by a different group.

To properly comprehend the structural evolution of the GmARF-IAAs, we analyzed their gene structure, including the amount of intron/exons and functional domains. We used the GENE Structure display website (http://gsds.gao-lab.org/) to draw GmARF-IAAs gene structure; GmARF36 has no UTR area, GmARF08, GmARF30, GmARF38, and GmARF51 contain only one intron, GmARF09 contains two introns (Fig. 2A), whereas GmIAA2, GmIAA6, GmIAA31, GmIAA37 and GmIAA51 contain two introns (Fig. 2B). Some structural variations exist between ARF and IAA genes; for example, IAAs have a significantly longer UTR than ARFs, and ARFs have a higher exon/intron ratio than IAAs.

Fig. 2.

The gene structure analysis of GmARF-IAA gene family. (A) GmARFs (B) GmIAAs. The figure illustrates the exon and intron structure analyses of GmARFs and GmIAAs genes generated by the GENE Structure website. The UTRs region, exons, and introns are indicated by yellow boxes, blue boxes, and black lines. The ruler at the bottom measures the length of the exon and intron.

The conserved motif analysis of GmARFs and GmIAAs proteins revealed ten conserved motifs (motif1-motif 10) in both proteins (Fig. 3A,B), whose sequences are shown on the right side of Fig. 3. Motifs 1–5 and 8–10 are common to all GmARFs, except for GmARF10, GmARF42, GmARF49: GmARF10 only contains motif 7 GmARF42, GmARF49 do not contain motifs 3 and 9 (Fig. 3A). Except for GmIAA37, all GmIAA contain motif 1, indicating that its plays an important, possibly structural, role in GmIAA. It is worth noting that GmIAA7 and GmIAA37 only have motif 5. These two genes may be redundant in function (Fig. 3B).

Fig. 3.

The Conserved motifs of GmARFs-IAAs gene family. (A) GmARFs (B) GmIAAs. Based on the protein sequences of GmARFs and GmIAAs, the conserved motifs were discovered using the MEME website. The motif length can be calculated using the ruler at the bottom—a motif distribution map of the GmARFs and GmIAAs genes created by TBtools. The ten expected motifs are represented by coloured boxes on the left, with the Motif LOGO on the right.

The SMART website analyzes the conserved domains of GmARFs and GmIAAs (Fig. 4A,B). All GmARF genes contain a Pfam: Auxin_resp domain, a conserved region in auxin-responsive transcription factors of different species, and a B3 domain (Fig. 4A). All GmIAAs genes contain the Pfam: AUX_IAA domain. Some family members are longer and contain an N terminal DNA binding domain (Fig. 4B). Nearly all genes contain a low complexity region. The number of domains is much higher in the GmARF gene family compared to the GmIAAs gene family.

Fig. 4.

Sequence analysis for domains. (A) GmARFs and (B) GmIAAs protein sequence were analyzed using the SMART website. Pfam: Auxin resp domain and B3 domain were found in all GmARFs genes. The AUX IAA domain was found in all GmIAAs genes.

To map the chromosomal positions of GmARF and IAA genes, we use the GENE Location function of the TBtools program (Version 1.082). Two genes are found on chromosomes 11, 16, and 18, respectively. The chromosome with the most genes, chromosome 13, has 14 genes. Only GmARF genes, but no IAA genes, are found on chromosomes 11, 12, 16, and 15 (Fig. 5).

Fig. 5.

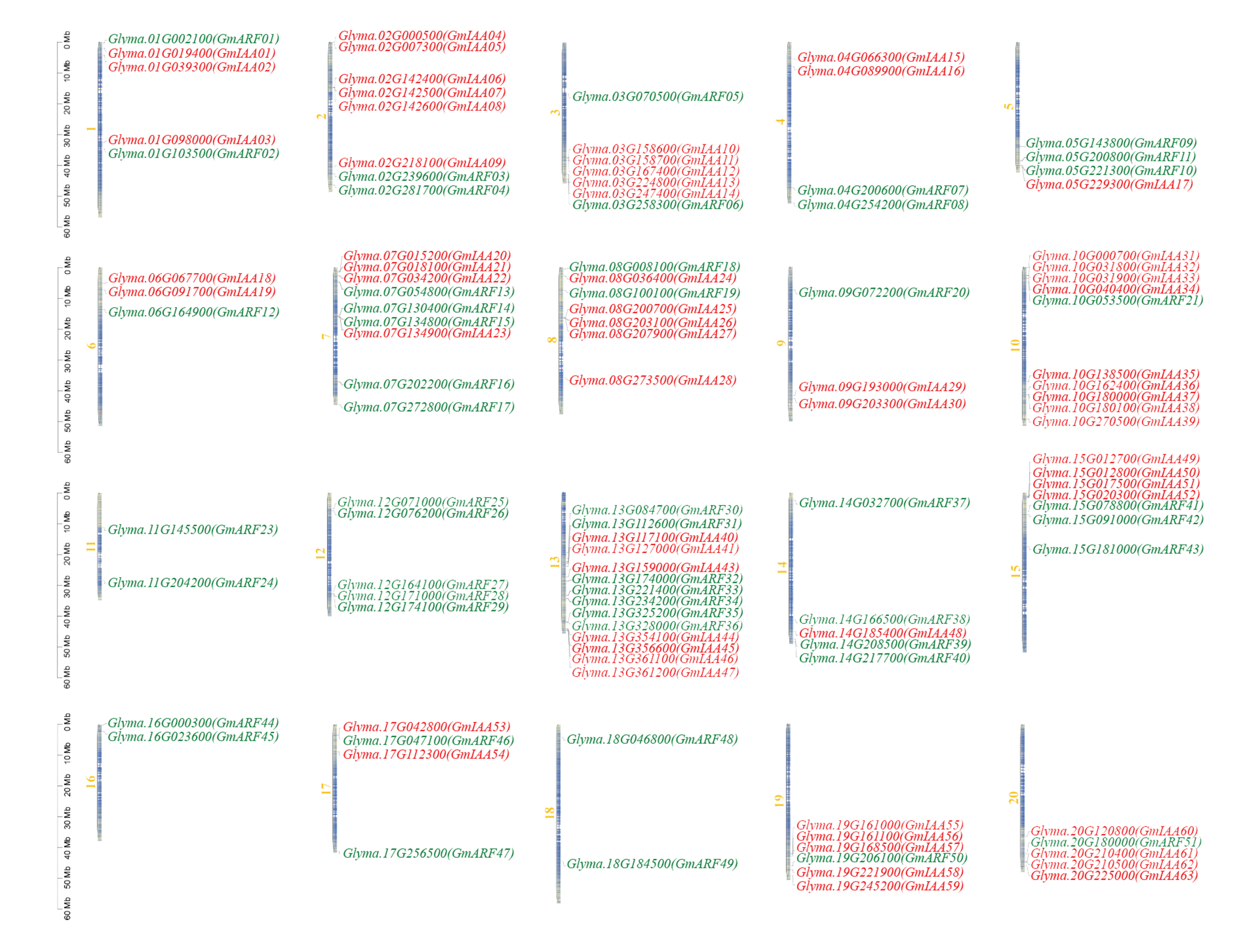

Distribution of GmARFs and GmIAAs genes in G. max genome. The 51 GmARFs genes may be found on chromosomes 1–20, whereas the 63 GmIAAs genes can be found on chromosomes 1–10, 13–15, 17, 19, and 20. The chromosomal numbers are listed at the top of each vertical bar. The ruler depicts the chromosome/Mb length. The red color shown the ARF genes while the green color for IAA genes on chromosomes.

A comparative study of the ARF and Aux/IAA proteins and homologues was undertaken to investigate the potential evolution link and compare the ARF and Aux/IAA gene family collinearity among A. thaliana and soybean using the TBtools software. The results reveal 9 (17.6%) homology for GmARF and 19 (30.6%) homology for GmAux/IAA proteins between the two species. According to this analysis, most genes have collinearity, suggesting that most genes have replication events, which increase the number of genes (Fig. 6A,B). The orthologous genes of Arabidopsis and soybean were compared. It was shown that many orthologous gene pairs between the two species also suggest a high degree of similar gene sequences. The orthologous genes of Arabidopsis and soybean showed more interspecies orthology for the IAA genes than for ARF (Fig. 7A,B), which means that the ARF genes in soybean have more variation and are less conserved.

Fig. 6.

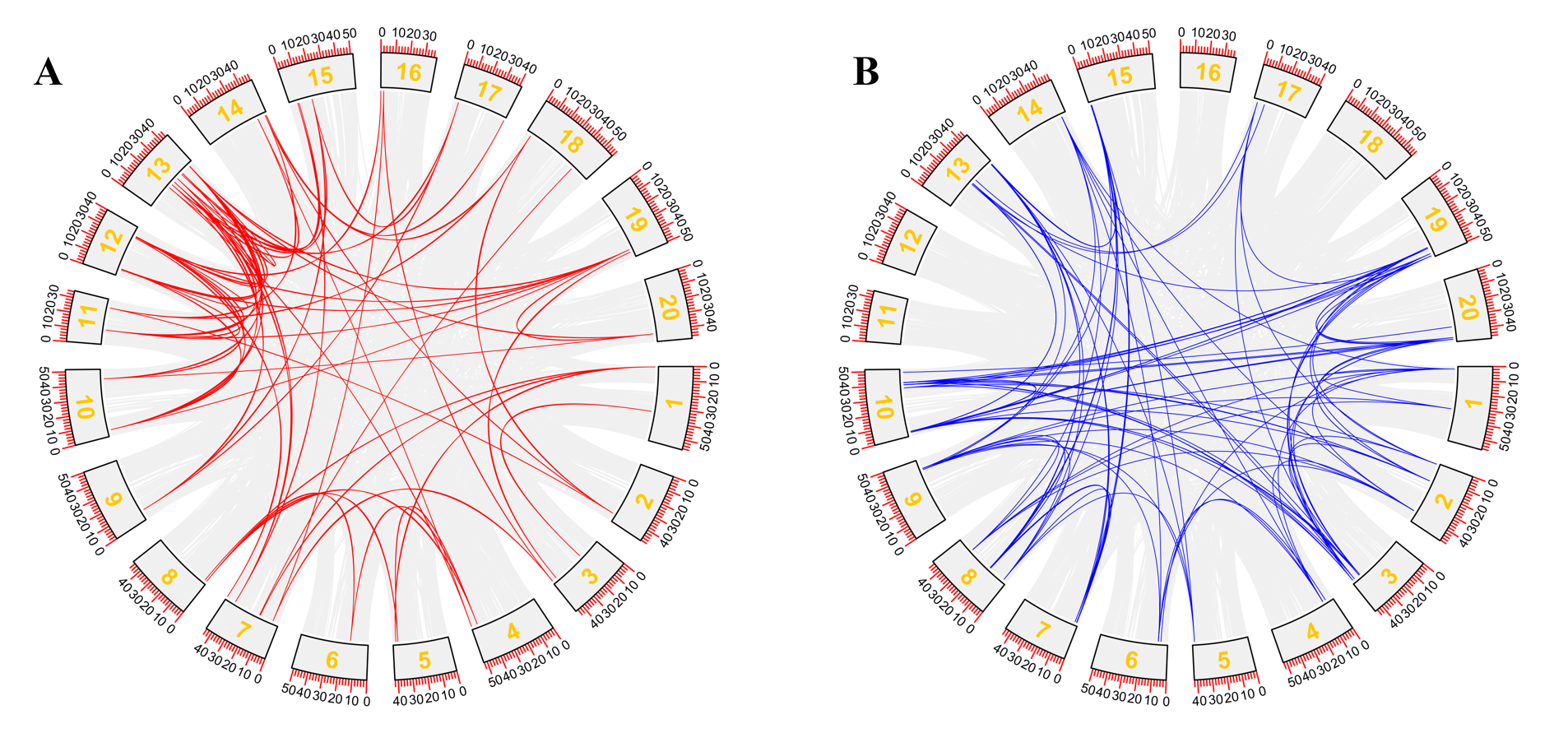

Collinearity analysis of the GmARFs and GmIAAs genes. The red lines in the circle (A) are GmARFs and the blue lines in the circle (B) are GmIAAs, indicating that most of the GmARFs and GmIAAs genes have a collinear relationship.

Fig. 7.

Collinearity analysis of the GmARFs (A) and GmIAAs (B) gene families in G. max and A. thaliana. The blue lines show that most ARFs and IAAs genes had a collinear relationship between the species. Arabidopsis chromosome 1–5 is shown in pink color. The green color represents soybean chromosomes 1–20.

To elucidate the ARF, Aux/IAA gene family regulatory mechanism about plant growth and development as well as a stress response in soybean, the genomic sequence was used to query the Plant Care database to search for cis-regulatory elements (CREs). The cis-regulatory elements are the regions in the DNA that regulate the expression of the neighbouring genes. Therefore, we analyzed the cis-acting elements of each GmARF-IAAs gene in sequences located within 2 kb upstream from the transcription start site (TSS) to predict the activity of the GmARF-IAAs gene. The findings revealed various response elements, most of which were connected to various plant hormones. The promoter regions of each gene family have five hormone response elements: the IAA response element, GA response element, ABA response element, SA response element, and MeJA response element.

Furthermore, it includes elements related to response to low-temperature, defence and stress, wounds, light (MYB binding site and a part of gapA in (gapA-CMA1). The part of gapA in (gapA-CMA1) involved with light responsiveness is unique to GmARF38 and GmIAA30. Various types and numbers of cis-elements have been found in GmARFs, GmIAAs, promoters, suggesting that they participate in various regulatory processes during plant growth and development and stress responses (Fig. 8, Supplementary Table 5).

Fig. 8.

The Cis-regulatory element analysis. The cis-acting regulatory elements found in the promoter regions of GmARFs (A) and GmIAAs (B) are indicated by dots, colored according to the type of element, which are represented in the right side of the figure.

During their early stages of growth, G. max is more vulnerable to environmental stress. After 14 days of germination, total RNA was extracted using Williams82. The materials are derived from the meristem, hypocotyl, epicotyl, unifoliate leaves, and roots, among other regions of the plant. Each sample generates 6.0 GB of sequencing data, which is utilized to look into the expression patterns of the GmARF-IAAs gene families using a high-throughput transcriptome method. Fig. 9 depicts the tissue-specificity of the expression of the GmARF-IAAs genes, the corresponding FPKM (Fragments Per Kilobase per Million) values are given in the Supplementary Table 6. The heat map in Fig. 9 shows that GmARF2, GmARF5 is significantly expressed in roots in Williams82 cultivars, indicating that GmARF2, GmARF5 may conduct essential activities in roots, while the GmIAA11 is strongly expressed in the epicotyl, indicating that GmIAA11 may have essential functions in the epicotyl during the VC (Vegetative Cotyledon) stage. Furthermore, the IAAs genes family is relatively more expressed in different regions of the plant, whereas the ARFs gene family is expressed more specifically in certain organs.

Fig. 9.

Expression pattern of GmARFs-IAAs in Williams82 various tissues. (A) representing GmARFs expression, and (B) displaying the level of GmIAAs expression. The level of expression is classified in the cluster tree. M stands for meristem; U stands for unifoliate leaves; E stands for epicotyl; H stands for hypocotyl; R stands for roots. A gradual increase in value can be seen from blue to red.

Fig. 10 shows the co-expression study of GmARF-IAAs in different regions of the plant. The GmARF11,18 and GmIAA3,14,63 exhibited the greatest expression levels in the apical meristem (Fig. 10A). GmARF7,11,12,18 and GmIAA3,14,38,61 expression levels are high in true leaves (Fig. 10B). However, the expression level of GmARF genes in the epicotyl and hypocotyl are generally low, whereas high expression levels are observed for GmIAA3, 4, 11, 14, 63 in epicotyl and GmIAA1, 14, 30, 36, 39, 61, 63 in the hypocotyl (Fig. 10C,D). In roots, high expression levels are observed for GmARF2,5,11 and GmIAA9,14,63 (Fig. 10E). The expression patterns in different organs of the G. max showed that GmIAAs and GmARFs presented the highest expression levels in organ-specific, suggesting that GmARF and GmIAA control the growth and development of soybean.

Fig. 10.

Co-expression of GmARFs and GmIAAs in the same tissue of soybean. The level of expression is classified in the cluster tree. (A) M, meristem. (B) U, unifoliate leaves. (C) E, epicotyl. (D) H, hypocotyl. (E) R, roots. A gradual increase in value represents from blue to red.

To better understand the biological function and ARF and AUX/IAA regulatory networks, the protein-protein interaction (PPI) was predicted using the orthology-based method. In the absence of auxin, the AUX/IAA interacts with the ARF and inhibits its function to control the expression of auxin-responsive genes. However, when auxin was present, ARF was released from the AUX/IAA complex, performed specific activities, and modulated the expressing auxin-responsive genes. We discovered that several ARF and AUX/IAA gene families had interactions (Fig. 11A). These results confirmed the specific AUX/IAA interaction with ARF to block its function.

Fig. 11.

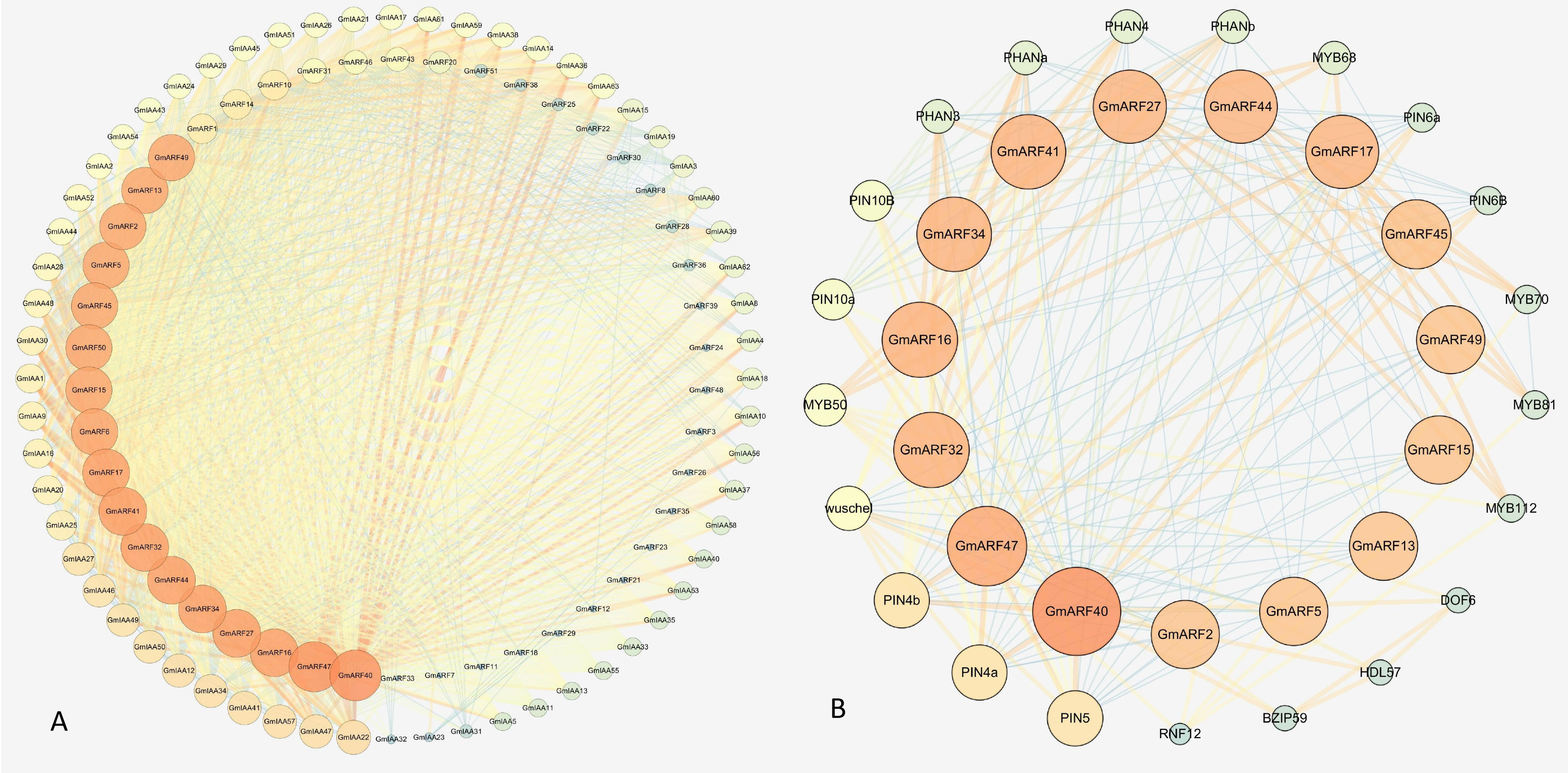

Genome-wide interaction between ARF and AUX/IAA in soybean using the STRING tool. (A) The dark colour of the circle and lines represent high interaction between proteins. (B) Predicted protein-protein interaction of ARF protein with other soybean functional proteins. The inner circle represents the ARF proteins, and the outer circle represents the interacting protein. The size of the circle of each protein and dark pink colour show high interaction with other proteins.

We also analyzed the protein-protein interaction of ARF with other functional genes (Fig. 11B). As expected, most of the proteins that interacted with ARFs were important and validated components of the auxin-responsive pathways. For example, the ARF interacted with PIN (PIN-FORMED) proteins, PHAN (PHANTATUCA), MYB, and WUSCHEL; these factors played an important role in plant growth and development. A system of auxin influx and efflux transporters delivers auxin from one cell to another. PIN proteins have been postulated as auxin efflux transporters, and auxin fluxes may be anticipated based on PIN distribution in the plasma membrane, which is asymmetric in many cells. Higher plant organs have two basic axes of asymmetry: proximodistal and dorsoventral. The PHAN gene is required for dorsoventral patterns in leaves, bracts, and petal lobes. According to conditional mutants, PHAN is also essential for the early formation of the proximodistal axis. PHAN was shown to be an MYB transcription factor homolog. AUXIN RESPONSE FACTOR3 (ARF3)/ARF4 performs redundant functions in defining the abaxial leaf identity, according to independent research in Arabidopsis thaliana. A previous study found that the transcription factor MYB77 is important in Arabidopsis thaliana auxin response. As a result, Auxin-responsive gene expression was substantially reduced in MYB77 mutant plants. At low quantities of indole-3-acetic acid (IAA) and poor nutritional circumstances, the MYB77 knockout had reduced lateral root density than the wild type [37].

Homology-based 3D structure modelling was used to predict the 3D structures of the DBDs of GmARFs and of the full length GmIAAs proteins, using the amino acid sequences of 51 GmARF and 63 GmIAA gene family members of soybean identified in this work. The structures were generated using the online software Swiss-Model and revealed that the primary structures of GmARF/IAA proteins contained both $\alpha$-helices and $\beta$-sheets. The Ramachandran plot was used to validate the 3-D models produced in this work, computed with the PROCHECK program. These showed that more than 90% of the residues in the GmARF/IAA protein 3-D models were in favoured and allowed regions. The Ramachandran plot findings indicated that the models constructed were of appropriate conformation, suggesting that they may be used for further analysis. The proteins with homologous amino acid sequences have similar overall tertiary structures, with a few differences. Among the ARF proteins, the structures of ARF16 and ARF30, for example, differed considerably from those of other genes (Fig. 12). The tertiary structure of proteins from non-homologous genes differed noticeably, and these variances might explain why they exhibit different biological functions. Furthermore, the 3D structures of members of the GmIAA family have been shown in the supplementary file (Supplementary Fig. 1). The structural analysis revealed that the protein structure of ARF is more complex than IAA in the soybean genome.

Fig. 12.

3D structural models for GmARF and GmIAA. The GmARF/IAA protein 3D structural modelling was created using SWISS-MODEL. For the GmARFs, the DBD was modelled only. The Ramachandran plot was also used to validate the obtained models for different proteins (Supplementary Fig. 2). Further, the 3D structures of GmIAAs proteins were shown in the supplementary file.

To further explore the probable interaction profile of the GmARFs, we analyzed the homology of the residues that were reported to be important for interaction with DNA and with IAAs. The structural interfaces are shown in Fig. 13A,B [38], indicating the residues involved in the interactions. Fig. 13C,D shows the alignment of the regions of the ARF proteins that were shown to be important for DNA binding (Fig. 13C) and binding to IAA proteins (Fig. 13D) (Ref. [39]). These alignments show a high degree of homology in the residues important for the function of the ARFs, indicating that the identified GmARFs are, in fact, functional proteins.

Fig. 13.

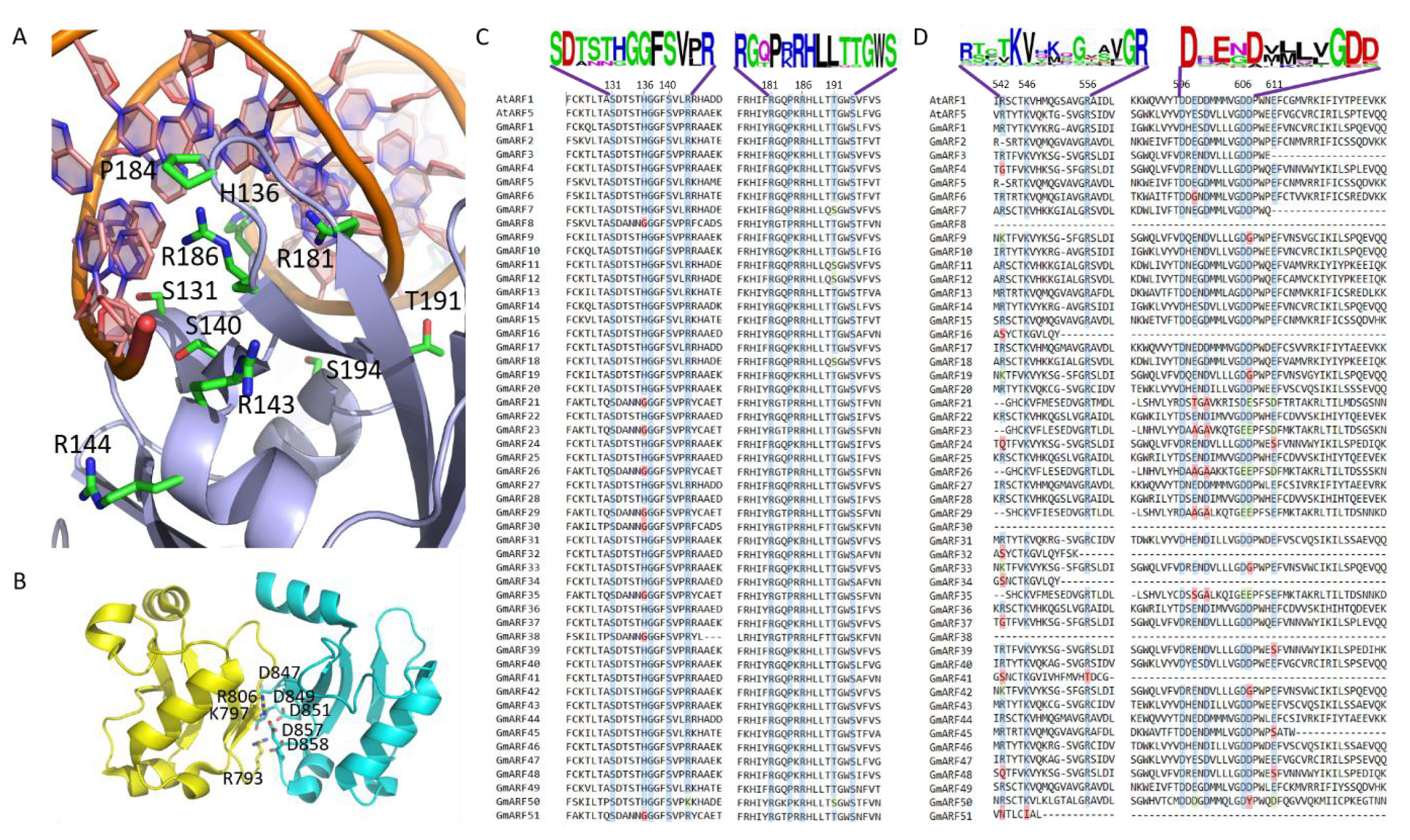

Sequence alignment of important functional residues in the Arabidopsis ARF1 and ARF5, and the Glycine max ARF proteins. (A) Detail of DNA-protein interface of the ARF1-DBD/ER7 complex (PDB code 4LDX) showing the residues involved in DNA recognition. DNA-contacting residues are labelled. (B) Detail of DNA-protein interface of the ARF5-PB1 responsible for oligomerization (PDB code 4CHK) showing the residues involved in the opposite-charged patches that are important for the interaction. (C) Positions of the ARF DBD that directly contact DNA are colored, and conservation is marked using the following color codes: Blue, identical; green, conserved; yellow, semi-conserved; red, non-conserved. The residue numbers indicated above the alignment correspond to AtARF1 residues. (D) PB1 alignment: Sequence alignment of the oligomerization residues of the PB1 domains of the Arabidopsis ARF1 and ARF5, and the Glycine max ARF proteins identified in this paper. Conservation of the residues forming the charged patches, important for interactions with other ARFs and Aux/IAA proteins [39], is marked using the following color codes: Blue, identical, green, conserved; yellow, semi-conserved; red, non-conserved. The sequence logo of relevant fragments is shown at the top for the alignments shown in panels C and D.
