IMR Press / CEOG / Volume 47 / Issue 5 / DOI: 10.31083/j.ceog.2020.05.5362
Open Access Original Research
Increasd mRNA expression of TRAF-6 and MST-4 in the placenta of women with preterm premature rupture of membranes with histological chorioamnionitis
D. Lu1,†,*X. Bao1,†Q. Wang1
Show Less
1 Department of Obstetrics and Gynecology, Clinical Medical College of Yangzhou University, Yangzhou, P.R. China

Contributed equally.

Clin. Exp. Obstet. Gynecol. 2020, 47(5), 749–754;
Submitted: 20 August 2019 | Accepted: 9 March 2020 | Published: 15 October 2020

Objectives: To investigate the expression of mammalian Ste20-like kinase 4 (MST-4) and tumour necrosis factor receptor-associated factor 6 (TRAF-6) in placenta from cases with preterm premature rupture of membranes (PPROM) with histological chorioamnionitis (HCA). Methods: Forty PPROM pregnant women and 40 normal controls were recruited. The foetal membranes were examined by haematoxylin-eosin staining and immunohistochemistry (IHC). MST-4 and TRAF-6 mRNA levels were measured by real-time qPCR. Results: IHC showed that the expressions of TRAF-6 and MST-4 in the combined PPROM and intrauterine infection group were significantly stronger than those in the control group and the PPROM group (p < 0.05). RT-qPCR showed that the expression of TRAF6 and MST4 mRNA in the PPROM with HCA group was significantly higher than that in the control group and the PPROM without HCA group (p < 0.05), but there was no significant difference between the latter two groups (p > 0.05). Conclusion: Increased mRNA expression of TRAF-6 and MST-4 are associated with PPROM with HCA, which may provide new detection markers for the early diagnosis of PPROM with HCA.

Preterm premature rupture of membranes
Histological chorioamnionitis
Tumour necrosis factor receptor-associated factor 6
Mammalian Ste20-like kinase 4

Preterm premature rupture of membranes (PPROM) is defined as spontaneous rupture of membranes that occurs before 37 weeks’ gestation and at least 1 hour before the onset of contractions. PPROM occurs in approximately 3% of pregnancies and accounts for approximately 30% of preterm births [1]. The pathogenesis of the premature rupture of membranes is unclear. It has been reported that PPROM usually associated with intraamniotic infection, especially at younger gestational ages. The previous history of PPROM is a major risk factor for subsequent PPROM or preterm pregnancy [2,3]. Intrauterine infections include chorioamnionitis (CAM) and histological chorioamnionitis (HCA). Most intrauterine infections are categorized as HCA, which can only be diagnosed by postpartum pathology. HCA can cause nerve damage, bronchial dysplasia, neonatal pneumonia and other adverse pregnancy outcomes [4]. At present, there is no index diagnosis for HCA. Therefore, early diagnosis of premature rupture of membranes and chorioamnionitis and better understanding of the mechanism of early rupture of membranes are of great significance for preventing premature rupture of membranes and reducing intrauterine and neonatal infections. Tumour necrosis factor receptor-associated factor 6 (TRAF-6) is one of seven closely related TRAF proteins, which are adapter proteins that connect the tumour necrosis factor receptor (TNFR) superfamily to intracellular signalling transmission. TRAF-6 participates in interleukin-1 (IL-1) signalling and activates NF-kappa B. A dominant-negative mutant of TRAF-6 inhibits NF-kappa B activation signalled by IL-1. Moreover, TRAF-6 is a key adaptor that modulate inflammatory responses by regulating various signalling pathways [5].

The recent report shown that mammalian Ste20-like kinase 4 (MST-4) play an important regulatory role in innate immunity. MST-4 can lead to the abnormal function of downstream signalling molecules by impairing its oligomerization and ubiquitination activity through directly associates with and phosphorylates TRAF-6 in the Toll-like receptor (TLR) signalling pathway. In the finally, MST-4 regulates the production of downstream inflammatory mediators by inhibiting the activation of inflammatory pathways [6]. MST-4 was discovered as a new ste20-related kinase and belongs to germinal centre kinases (GCKs). By acting directly on TRAF-6, inflammation is inhibited by MST-4 [7]. In this paper, the expression of TRAF-6 and MST-4 in placental tissues was detected to provide an important basis for the prediction of PPROM with HCA.

Materials and Methods
Research subjects

A retrospective study was conducted on a group of pregnant women (n = 80) who had delivered at the Clinical Medical College of Yangzhou University from September 2017 to May 2019 and had provided consent to collect placental and foetal membrane specimens. The study obtained informed consent from all women and was approved by the Research Ethics Committee of College of Clinical Medicine, Yangzhou University (authorization number: KY201700902). Forty of the pregnant women were diagnosed with PPROM, and the controls consisted of 40 women with spontaneous labour at term (> 37 weeks). Inclusion criteria: all pregnant women were singleton pregnancy with cephalic presentation. Exclusion criteria: pregnant women complicated with immune system diseases, acute or chronic diseases, and other complications.

Equipment and reagents

The following instruments and reagents were used: paraffin slicer RM2235 (Leica, Germany), low temperature and high speed centrifuge (Eppendorf, Germany), type 680 labeller (BioTeK, USA), ortho-optical microscope (NIKON, Japan), regular PCR thermocycler (Eppendorf, Germany) 7,500 real-time PCR thermocycler (American Applied Biosystems). HE staining kit (Nanjing), chloroform, isopropyl alcohol, DEPC (Sigma, USA), TRIzol (Invitrogen, USA), PrimeScript RT reagent Kit (RR037A) TaKaRa (Japan), SYBR® Premix Ex Taq II RR820A TaKaRa (Japan).

Specimen collection

Two samples of fresh multi-layer tissue from the centre of the placenta were rinsed thoroughly with normal saline. One was embedded in paraffin, and the other was frozen in liquid nitrogen for RNA extraction. After the placenta was delivered, a 6 cm wide strip of placental film was immediately cut from the rupture of the placenta to the edge of the placenta. After rinsing with normal saline, the sample was fixed with 4% neutral formaldehyde for 24 h and embedded in paraffin.

Paraffin section preparation and haematoxylin-eosin staining

Paraffin-embedded foetal membrane tissue was removed for slicing, approximately 4 µm thick. The sections were dewaxed by xylene, hydrogenated by gradient alcohol, stained with haematoxylin, stained with aqua ammonia, stained with eosin, and sealed with xylene transparent. At high magnification, the neutrophilic granulocytes had lobulated nuclei, and the cytoplasm was pale. Five fields were randomly selected at high magnification, and cases with average neutrophil count greater than 5, were diagnosed as histological chorioamnionitis.

Immunohistochemical staining

Streptomycin pro-bioprotein/peroxidase ligation (SP method) was used for this assay. Results: Under high magnification, JEDAS01D software was used to obtain images (I 40). Five fields of view were randomly selected for each sample and image analysis was performed using Image-Pro Plus. Yellow or brown in the nuclei were defined as positive expression and scored based on the number of positive cell expressions as follows: when the percentage of stained cells < 5%, the score was (-); 6% ~ 25% scored (+); 26% ~ 50% scored (++); and > 50% scored (+++). The placental tissue optical density value (IOD) was determined, then calculate the mean optical density value (MOD) based on the actual area of the tissue (area). MOD = IOD/Area

Real-time quantitative PCR

Extraction of RNA

RNA from 50-100 mg placental tissues ground with liquid nitrogen was extracted with TRIzol reagent. The RNA concentrations and OD260:OD280 values were detected using the Take 3 ultra-micro and multi-volume detection board obtained from BioTek. Store the purified RNA at -80 °C until cDNA preparation.

Complementary DNA preparation

Approximately 400 ng of RNA was reverse transcribed to prepare complementary DNA (cDNA). A PrimeScript RT reagent Kit (Takara, Japan) was used to synthesize cDNA. Reverse transcription was carried out in a reaction volume of 10 µL containing 2 µL 5xPrimeScript Buffer (for Real Time), 0.5 µL PrimeScript RT Enzyme Mix I, 0.5 µL oligo dT Primer, 5.5 µL RNase-free dH2O, and 1 µL total RNA. The reaction conditions were as follows: 37 °C, 15 min; 85, 5S; 4 °C, ∞. Two microliters of cDNA were subsequently subjected to real-time polymerase chain reaction (RT-PCR). The primer sequences were as follows: MST4 sense: 5′-TTCGAGCTGGTCCATTTGATG-3′, antisense: 5′-TGAATGCAGATAG TCCAGACCT-3′; TRAF6 sense: 5′-TTTGCTCTTATGGATTGTCCCC-3′, antisense: 5′-CATTGATGCAGCA CAGTTGTC-3′; and GAPDH sense: 5′-TGTGGGCATCAATGGATTTGG-3′, antisense: 5′-ACACCATGTATTC CGGGTCAAT-3′.

Real-time PCR

SYBR® Premix Ex Taq II (Takara, Japan) was used for real-time PCR. The PCR reaction solution (20 µL) was set up on ice and contained 10 µL SYBR® Premix Ex Taq II (Tli RNase H Plus) (2 ×), 0.8 µL PCR Forward Primer (10 microns), 0.8 µL PCR Reverse Primer (10 microns), 2 µL cDNA solution, and 6.4 µL RNase-free dH2O. The following programme was run for 40 cycles: 95 °C, 30 s; 95 °C, 5 s; and 60 °C, 30 s. The comparative Ct (cycle threshold) method was used to determine the relative quantification of gene expression.

Data analysis

Statistical analysis was performed with SPSS software (IBM, Armonk, NY, version 19.0). The results are expressed as the mean ± standard deviation (x ± s). The t test was used for comparison between the two groups. Differences among the three groups were analyzed by one-way ANOVA, and comparisons among the three groups were performed by the Student-Newman-Keulsa test. Correlation metrics were analysed using Spearman correlation. Statistical significance was achieved whenever p < 0.05.

General information of pregnant women

Haematoxylin-eosin staining results showed that there was no infection in the control group. A total of 34 cases of HCA were combined with the PPROM group, with an infection rate of 85.00% (34/40), and 6 cases of HCA were not combined, as shown in Figure 1.

Figure 1.

— Haematoxylin-eosin staining of foetal membranes (× 40) A: HCA; B: without HCA.

For the control group, PPROM with HCA group and PPROM without HCA group, there were no statistically significant differences in maternal age, BMI, white blood cell number, neutrophil number, and maternal temperature (p > 0.05), as shown in Table 1.

Table 1Clinical characteristics of the study population.
PPROM witd HCA (n = 34) PPROM witdout HCA (n = 6) controls (n = 40) p
Maternal age (years) 27.12 ± 3.44 25.83 ± 1.72 26.83 ± 2.48 0.61
BMI (kg/m2) 27.86 ± 2.80 27.05 ± 2.47 27.84 ± 3.84 0.64
White blood cell number (× 109) 9.64 ± 2.35 9.57 ± 2.02 9.09 ± 1.96 0.54
Neutrophil number (× 109) 7.04 ± 2.23 7.04 ± 2.23 6.55 ± 2.02 0.39
Maternal temperature (°C) 36.73 ± 0.21 36.74 ± 0.25 36.76 ± 0.22 0.88
Immunohistochemical detection of TRAF-6 and MST-4 expression in placental tissues

TRAF-6 expression was mainly localized in the nucleus, and MST-4 was expressed in the nucleus and cytoplasm of placental tissues (Figure 2). The expression of TRAF-6 and MST-4 in the placental tissue of the PPROM combined with intrauterine infection group was stronger than that of the control group and the PPROM without intrauterine infection group (p < 0.05). There was no significant difference between the latter two groups (p = 0.58).

Figure 2.

— Expression of TRAF6 and MST4 in placental tissue (× 40). A-D: expression of TRAF6 in PBS control, normal upper control, PPROM not combined with intrauterine infection group, PPROM combined with intrauterine infection group; E-H: expression of MST4 in PBS control, normal initial control, PPROM not combined with intrauterine infection group, and PPROM combined with intrauterine infection group.

Correlation between TRAF-6 and MST-4 expression in placenta

Spearman rank correlation analysis showed that the expression of TRAF-6 in the placenta was positively correlated with MST-4 expression (rs = 0. 67, p < 0.05).

The expression of MST-4 and TRAF-6 mRNA in the three groups

The expression of MST-4 and TRAF-6 mRNA in the PPROM with HCA group was higher than that in the PPROM without HCA group and the control group, and these differences were statistically significant (p < 0.01); however, the differences were not statistically significant between the PPROM without HCA group and the control group (p > 0.05), as shown in Table 2 and Figures 3 and 4.

Table 2Expression of MST-4 and TRAF-6 mRNA.
Control (n = 40) PPROM witd HCA (n = 34) p PPROM witdout HCA (n = 6) p
TRAF6 0.580 ± 0.135 1.029 ± 0.215 < 0.01 0.599 ± 0.093 0.74
MST4 0.534 ± 0.114 0.952 ± 0.182 < 0.01 0.580 ± 0.135 0.37

*p < 0.05 versus control.

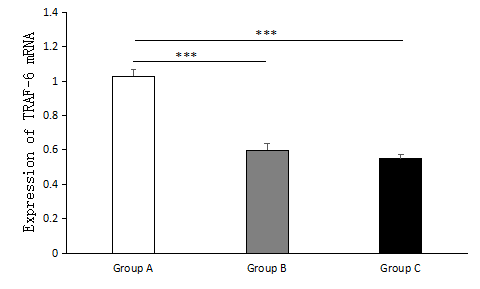

Figure 3.

— The expression of TRAF-6 mRNA in the PPROM with HCA group (Group A), PPROM without HCA group (Group B) and control group (Group C) was investigated by RT-PCR. The figure shows that compared with the PPROM without HCA group and the control group, the PPROM with HCA group has greater statistical significance. Group A, n = 34; Group B, n = 6; Group C, n = 40; * * * p < 0.001.

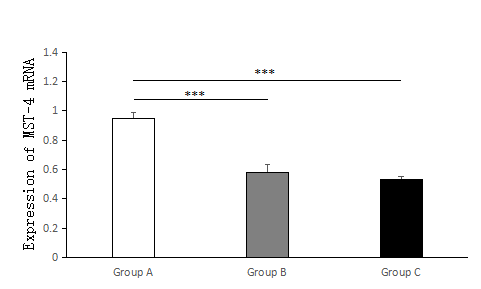

Figure 4.

— The expression of MST-4 mRNA in the PPROM with HCA group (Group A), PPROM without HCA group (Group B) and control group (Group C) was investigated by RT-PCR. The figure shows that compared with the PPROM without HCA group and the control group, the PPROM with HCA group has greater statistical significance. Group A, n = 34; Group B, n = 6; Group C, n = 40; * * * p < 0.001.


PPROM is a major cause of preterm delivery, which contributes to adverse perinatal outcomes [8]. Park et al. [9] suggested that HCA confers additional adverse risks for maternal and neonatal, such as earlier gestational age at delivery, neonatal sepsis, hearing impairment, neurologic morbidity, and even death. Petit et al. [10] indicated that home care management is a suitable alternative option for PPROM before 35 weeks’ gestation when the eligibility criteria are relevant. At present, there are no clear clinical indicators to diagnose the presence of intrauterine infection in PPROM. For example, there have been different conclusions on using procalcitonin to assess the prognostic value of intrauterine infection in PPROM patients. One study [11] suggested that the level of procalcitonin PCT in maternal blood was higher than that in maternal blood CRP and white blood cell count, while another study [12] suggested that procalcitonin was not valuable in the management of PPROM patients. This experiment also tested the white blood cell count of the peripheral blood of pregnant women before labour. The results were consistent with the latter study. A short review delivered by The FIGO Working Group on Good Clinical Practice in Maternal-Fetal Medicine showed that it is very active and dynamically evolving of clinical research on predictive strategies for PPROM and preterm labour [13].

The present research shown that there was a significantly higher mRNA expression of TRAF6 and MST4 in placentas of women delivering prematurely with PPROM with HCA comparied with women with controls and PPROM without HCA. It can be considered that TRAF6 and MST4 are involved in the occurrence of intrauterine infection.

TRAFs are cytoplasmic multifunctional signal junction proteins that are genetically highly conserved and play an important role in intracellular signalling pathways. Currently, seven TRAF family proteins (TRAF1~7) have been found. TRAF6 is a protein of the IL-1 signalling pathway that is widely distributed in the body. The N-terminal region of TRAF6 contains a RING finger, and TRAF6 plays a role of an E3 ubiquitin ligase and activates the NF-kappa B signalling pathway [14].

Studies have shown increased expression of TRAF6 in colitis [15], rheumatoid arthritis [16] and ankylosing spondylitis [17], indicating that TRAF6 is involved in a variety of inflammatory reactions. TRAF6 regulates inflammation and plays a key role in cell survival and proliferation. Therefore, the expression of TRAF6 can be downregulated to inhibit the occurrence of inflammatory reactions, such as to control the development of intrauterine infection. TRAF6 is regulated in a variety of ways, including one that inhibits its function by direct binding to TRAF6, thus effectively inhibiting the activation of NF-KB and inhibiting inflammatory reactions, such as that between microRNA-146a and PLT [18,19]. Common GCKs in mammals include five related proteins: MST1 (STK4), MST2 (STK3), MST3 (STK24), MST4 (MSAK) and YSK1 (STK25 or SOK1). MST4 is widely expressed in various mammalian tissues. It is highly expressed in embryos, thymus, prostate and peripheral blood leukocytes, and especially in the placenta, which provides a theoretical basis for studying the role of MST4 in placenta-related diseases [20]. Although MST4 is highly homologous with MST3 kinase, it has the opposite effect on cell growth [21]. MST4 can specifically regulate the Ras/Raf non-dependent ERK pathway through MEK1, promote cell growth and transformation, and participate in cytoskeletal rearrangement, morphological formation, apoptosis, differentiation and other various cellular activities, thus playing an important role in the physiological and pathological process of the body [22].

The activity of TRAF6 is directly inhibited by MST4 to regulate the inflammatory response. One study [7] found that MST4 can dynamically respond to bacterial infection and negatively regulate inflammatory pathways by directly acting on and phosphorylating the inflammatory pathway junction molecule TRAF6, preventing its oligomerization and ubiquitination and inhibiting the occurrence of excessive inflammation.

This study provides evidence for the involvement of TRAF6 and MST4 in the combined process of PPROM with HCA. However, how TRAF6 stimulates the increased expression of MST4 and how signalling pathways are regulated is still unclear. Therefore, it is necessary to further study the interaction mechanism of TRAF6 and MST4 in placental trophoblast cells, which may provide new detection markers for the early diagnosis of PPROM with HCA.

There are several limitations in the present study. First, the number of samples included in this study is small, and the study was performed at a single centre. Second, we have not yet validate our combined prediction model with a different patient population which may limit the generalizability of the study findings. Third, the single foetal membrane sample was used rather than multiple samples from the same patients. Therefore, further multicentre research studies with a larger sample size should be performed in the future.

In conclusion, this study confirmed that PPROM combined with histologic chorionic amnionitis was related to TRAF6 and MST4. Further studies will be needed to better understand their specific reaction mechanism.


This work was supported by the Science and Technology Project Fund of Yangzhou (No. YZ2017075) and the Traditional Chinese Medicine Science and Technology Development Plan Project of Jiangsu Province (No. YB201972).

Conflict of Interest

The authors declare no conflict of interest.

Salman L., Aviram A., Holzman R., Hay-Azogui H., Ashwal E., Hadar E., et al.: "Predictors for cesarean delivery in preterm premature rupture of membranes". J. Matern. Fetal. Neonatal Med., 2019, 1-6. 10.1080/14767058.2020.182833633016166
Bulletins—Obstetrics ACoOaGCoP.: "Practice Bulletin No. 172: Premature Rupture of Membranes". Obstet. Gynecol., 2016, 128(4), e165-177. 10.1097/AOG.000000000000171227661655
Kuba K., Bernstein P.S.: "ACOG Practice Bulletin No. 188: Prelabor Rupture of Membranes". Obstet. Gynecol., 2018, 131(6), 1163-1164. 10.1097/AOG.000000000000266129794659
Hendson L., Russell L., Robertson C.M.T., Liang Y., Chen Y., Abdalla A., et al.,: "Neonatal and neurodevelopmental outcomes of very low birth weight infants with histologic chorioamnionitis". J. Pediatr., 2011, 158(3), 397-402. 10.1016/j.jpeds.2010.09.01020961565
Zhu L.J., Yang T.C., Wu Q., Yuan L.P., Chen Z.W., Luo M.H., et al.: "Tumor necrosis factor receptor-associated factor (TRAF) 6 inhibition mitigates the pro-inflammatory roles and proliferation of rheumatoid arthritis fibroblast-like synoviocytes". Cytokine, 2017, 93, 26-33. 10.1016/j.cyto.2017.05.00128506571
Guo A., Tan Y., Liu C., Zheng X.: "MST-4 and TRAF-6 expression in the peripheral blood mononuclear cells of patients with Graves’ disease and its significance". BMC Endocr. Disord., 2017, 17(1), 11. 10.1186/s12902-017-0161-y28219358
Jiao S., Zhang Z., Li C., Huang M., Shi Z., Wang Y., et al.: "The kinase MST4 limits inflammatory responses through direct phosphorylation of the adaptor TRAF6". Nat. Immunol., 2015, 16(3), 246-257. 10.1038/ni.309725642822
Tsakiridis I., Mamopoulos A., Chalkia-Prapa E.M., Athanasiadis A., Dagklis T.: "Preterm premature rupture of membranes: a review of 3 national guidelines". Obstet. Gynecol. Surv., 2018, 73(6), 368-375. 10.1097/OGX.000000000000056729955897
Park J.W., Park K.H., Lee J.E., Kim Y.M., Lee S.J., Cheon D.H.: "Antibody microarray analysis of plasma proteins for the prediction of histologic chorioamnionitis in women with preterm premature rupture of membranes". Reprod. Sci., 2019, 26(11), 1476-1484. 10.1177/193371911982804330727818
Petit C., Deruelle P., Behal H., Rakza T., Balagny S., Subtil D., et al.: "Preterm premature rupture of membranes: Which criteria contraindicate home care management?". Acta. Obstet. Gyn. Scan., 2018, 97(12), 1499-1507. 10.1111/aogs.13433
Cetin O., Aydın Z.D., Verit F.F., Zebitay A.G., Karaman E., Elasan S., et al.: "Is maternal blood procalcitonin level a reliable predictor for early onset neonatal sepsis in preterm premature rupture of membranes?". Gynecol. Obstet. Inv., 2017, 82(2), 163-169.
Archabald K.L., Buhimschi I.A., Bahtiyar M.O., Dulay A.T., Abdel-Razeq S.S., Pettker C.M., et al.: "Limiting the exposure of select fetuses to intrauterine infection/inflammation improves short-term neonatal outcomes in preterm premature rupture of membranes". Fetal. Diagn. Ther., 2017, 42(2), 99-110. 10.1159/00045099727794570
FIGO Working Group on Good Clinical Practice in Maternal-Fetal Medicine.: "Good clinical practice advice: Prediction of preterm labor and preterm premature rupture of membranes". Int. J. Gynecol. Obstet., 2019, 144(3), 340-346. 10.1002/ijgo.2019.144.issue-3
Landström M.: "The TAK1-TRAF6 signalling pathway". Int. J. Biochem. Cell Biol., 2010, 42(5), 585-589. 10.1016/j.biocel.2009.12.02320060931
Vlantis K., Polykratis A., Welz P.S., van Loo G., Pasparakis M., Wullaert A.: "TLR-independent anti-inflammatory function of intestinal epithelial TRAF6 signalling prevents DSS-induced colitis in mice". Gut., 2016, 65(6), 935-943. 10.1136/gutjnl-2014-30832325761602
Zhu L.J., Dai L., Zheng D.H., Mo Y.Q., Ou-Yang X, Wei X.N, et al.: "Upregulation of tumor necrosis factor receptor-associated factor 6 correlated with synovitis severity in rheumatoid arthritis". Arthritis. Res. Ther., 2012, 14(3), R133. 22656185
Sipos W., Pietschmann P., Rauner M.: "Strategies for novel therapeutic approaches targeting cytokines and signaling pathways of osteoclasto- and osteoblastogenesis in the fight against immune-mediated bone and joint diseases". Curr. Med. Chem., 2008, 15(2), 127-136. 10.2174/09298670878333063818220768
Gao M., Wang X., Zhang X., Ha T., Ma H., Liu L., et al.: "Attenuation of Cardiac Dysfunction in Polymicrobial Sepsis by MicroRNA-146a Is Mediated via Targeting of IRAK1 and TRAF6 Expression". J. Immunol., 2015, 195(2), 672-682. 10.4049/jimmunol.140315526048146
Kong F., Zhang J., Zeng C., Chen W., Ren W., Yan G., et al.: "Inhibitory effects of parthenolide on the activity of NF-κB in multiple myeloma via targeting TRAF6". J. Huazhong University of Science and Technology [Medical Sciences] 2015, 35(3), 343-349. 10.1007/s11596-015-1435-0
Dan I., Ong S.E., Watanabe N.M., Blagoev B., Nielsen M.M., Kajikawa E., et al.: "Cloning of MASK, a novel member of the mammalian germinal center kinase III subfamily, with apoptosis-inducing properties". J. Biol. Chem., 2002, 277(8), 5929-5939. 10.1074/jbc.M11088220011741893
Thompson B.J., Sahai E.: "MST kinases in development and disease". J. Cell Biol., 2015, 210(6), 871-882. 10.1083/jcb.20150700526370497
Lin J.L., Chen H.C., Fang H.I., Robinson D., Kung H.J., Shih H.M.: "MST4, a new Ste20-related kinase that mediates cell growth and transformation via modulating ERK pathway". Oncogene, 2001, 20(45), 6559-6569. 10.1038/sj.onc.120481811641781
